Night Vision European EU License Plate Frame Car Rear View Camera Cm-316b

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$12.9 - $13.9 / Piece

Min. Order (Pieces)	Unit Price
10.0	US $ 13.9/ Piece
100.0	US $ 13.6/ Piece
1000.0	US $ 12.9/ Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Paypal, Money Gram, Western Union, Paypal

Price Valid Time:From Dec 04, 2014 To Dec 24, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CM-316B

Shell Material:Alloy

Probe Number:4

Display Type:Reverse Image

Interface:RCA

Function:Night Vision

Definition:480TV Lines

Chip:CMOS

Waterproof Grade:IP68

Alarming Distance:2.5-0.3m

Probe Diameter:18.8mm

Image Sensor Available:PC1030/PC7070/Mt9V136/PC1089

Camera Degree:170 Degree

IR Lights:4

Waterproof:Yes

TV System:PAL/NTSC

Minimum Illumination:0.1lux

Pixels:628X582

Resolution:420tvl/480 Tvl/520tvl Optional

Warranty:13 Months

Export Markets:Global

Additional Info.

Trademark:CE

Packing:20PCS/Carton, Carton Size 58*31*50cm

Standard:480TV lines CMOS in default

Origin:China, Shenzhen

HS Code:8525801390

Production Capacity:20000PCS/Month

Product Description

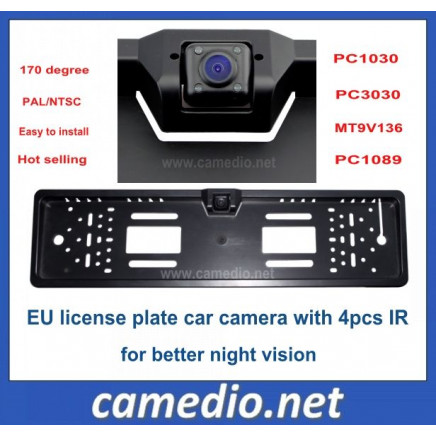

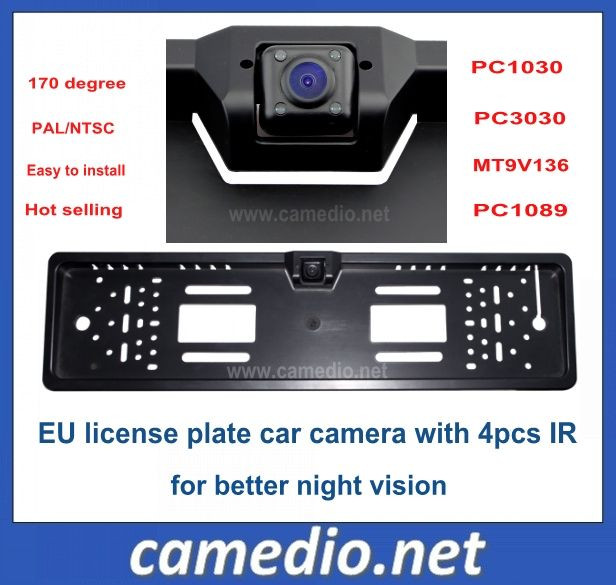

European license plate car camera with 4pcs IR ,

EU license plate rear view camera ,

Size:55*14*3cm ,

black and silver optional,

different kinds of image sensors optional PC1030/PC3030/MT9V136/PC1089 CCD

Key features:

1. Easy installation and assembly

2.High-resolution , high sensitivity and high signal to noise ratio

3.Super low-light, high-quality imaga capabiities .

4.DSP digital chip , image clarity without distortion ,

5.Shockproof , waterproof , anti-interference and resistance to high/low temperature

Specfication:

Europe license plate car backup camera

* Primary Function: Waterproof License Plate Camera

* Image Sensor: 1/4" Color CMOS/CCD

* Waterproof: YES, IP68

* TV System: PAL/NTSC

* Minimum Illumination: 0.1LUX

* Lens: f=1.8mm / F = 2.0

* Pixels: 628x582

* Resolution: 420TVL

* Viewing Angle: Wide Angle 170 Degrees

* Connection: RCA

* Operating Temperature: -20 ~ +70

* Power Supply: DC12V

* Dimension Plate: 545 x 140 x 23mm (L x W x D)

Length of AV Cable: ~6M

Night Vision European EU License Plate Frame Car Rear View Camera Cm-316b

Product Notes:

* Works with most Car Multimedia Systems and Car DVD Systems (and anything with an RCA video input)

* Automatic Monitor/Camera Feed On While Reversing

* Simple To Connect and Install

Package Contents:

* Waterproof License Plate Camera

* Car Power Wire

* RCA Video Cable

Packing information:
20pcs/carton

carton size: 58*31*50cm

G.W : 12.6KG/carton

Specifications for different image devices

A. PC1030 (parking guide line)
Image device: PC1030	Resolution: 420 TV lines	Power supply: DC 12V
TV system: PAL/NTSC	Video output: 1.0 VP-P,75 OHM	Operation temperature: -20ºC - 70ºC,RH 95% MAX
Effective pixels: 648×488 pixels	Gamma consumption: 0.45	Storage temperature: -40 - 85,RH 95% MAX
Electronic Shutter : 1/60-1/5000	White balance: auto	Waterproof: IP67/68

B. MT9V136 (parking guide line)
Image device: MT9V136	Resolution: 480 TV lines	Power supply: DC 12V
TV system: PAL/NTSC	Video output: 1.0 VP-P,75 OHM	Operation temperature: -20ºC-70ºC,RH 95% MAX
Effective pixels: 720x576/480 pixels	Gamma consumption: 0.45	Storage temperature: -40ºC-85ºC,RH 95% MAX
Electronic Shutter: 1-1/10000	White balance: auto	Waterproof: IP67/68

C. PC1089 (parking guide line)
Image device: PC1089	Resolution: 520 TV lines	Power supply: DC 12V
TV system: PAL/NTSC	Dark Signal: 46.7 mV/sec @60ºC	Operation temperature: -40ºC-70ºC,RH 95% MAX
Effective pixels: 765×652 pixels	Sensitivity: 9.67 V/Lux.sec	DynamicRange: 63.7 dB
Scanning system: 2:1 interlace	Waterproof: IP 67/68	SNR: 46.4 dB

D. Color Sony CCD
Image device: 1/3 "Sony CCD	Resolution: 480 TV lines	Power supply: DC 12V
TV System: PAL/NTSC	Sensing Area: 4.9X3.7 mm	Horizontal Sync.Frequency: 15.625/15.734 KHz
Video Output: 1Vp-p,75Ohm	S/N ratio : Better than 48dB	Pin lens: F=1.9mm/F=2.0 mm
Waterproof: Ip67/68	Operating Temperature( o C): -20~+75(RH95% Max.)	Angle of view: 170 °
