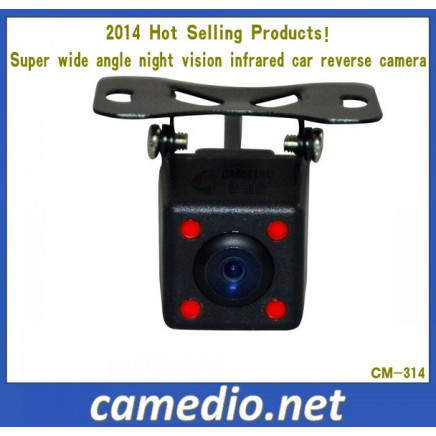

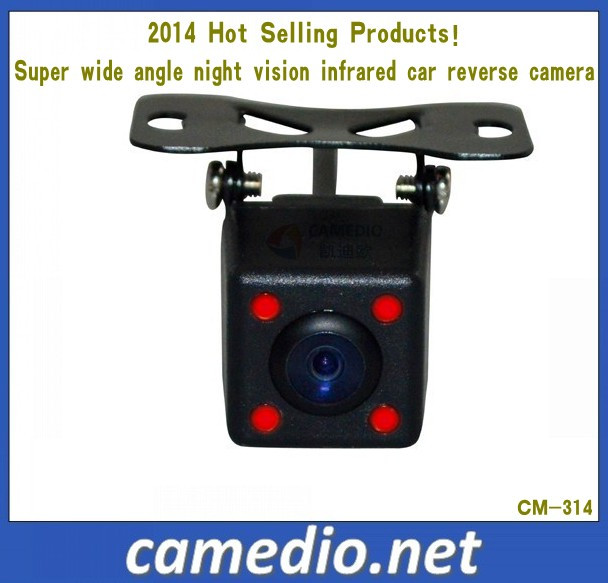

Super Wide Angle Night Vision Infrared Car Reverse Camera 2014 Hot Selling Products

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T, Paypal, Money Gram, Western Union, Paypal

Trademark:CE

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CM-314B

Shell Material:Aluminium

Probe Number:4

Interface:RCA

Function:Night Vision

Definition:480TV Lines

Chip:CMOS

Waterproof Grade:IP68

Alarming Distance:2.5-0.3m

Image Sensor Available:PC1030/PC7070/Mt9V136/PC1089

Camera Degree:170 Degree

Waterproof:Yes

TV System:PAL/NTSC

Minimum Illumination:0.1lux

Pixels:628X582

Resolution:420tvl/480 Tvl/520tvl Optional

Export Markets:Global

Additional Info.

Trademark:CE

Packing:50PCS/Carton, Carton Size 43*28*32cm

Standard:480TV lines CMOS in default

Origin:China, Shenzhen

HS Code:8525801390

Production Capacity:30000PCS/Month

Product Description

1)4pcs IR infrared light for better night vision

2)Camera angle 170 degree

3) waterproof and night vision

4)Different kinds of image sensor available: PC7070 CMOS, MT9V136 ( analog CCD)

5)Parking distance on/off can be switched

Specification:

Images Sensors: 1/4" CMOS P7070
IP rating: Ip 67
TV System: PAL/NTSC
Effective Pixels: 628 × 586/510 × 496
Sensing Area(mm): 5.96 × 4.276
Resolution(TV Lines): 480
Min. Illumination(Lua/): 0LUX
Horizontal Sync. Frequency(KHZ): 1/50 or 1/60
Vertical Sync. Frequency(HZ): 15.625-12.5/15.734-12
Video Output: 1Vp-p, 75 Ohm
BLC: Auto
S/N ratio: Better than 48dB
Lens: F=2.8mm/F=2.0
Lens Angle(Deg. ): 120
Current Consumption(mA): 200
Power Supply(DCV): 12
Operating Temperature(Deg. C): -20~+70(RH95%Max. )
Storage Temperature(Deg. C): -40~+80(RH95%Max. )

Specifications for different image devices:

Image Sensor	Color CMOS PC1030	Color CCD PC3030	Color MT9V136	Color PC1089K
TV System	PAL/NTSC	PAL/NTSC	PAL/NTSC	PAL/NTSC
Effective Pixels	648*488Pixels	728(H)*488(V)	720*576/480Pixels	928(H)*500(V)
Horizontal resolution	420TVL	480TVL	480TVL	500TVL
Sening area	4.08mm*3.12mm	3.584mm*2.688mm	3.584mm*2.688mm	3.584mm*2.688mm
Shutter speed	1/60-1/5000	1/60-1/20000	1-1/10000	1-1/10000
Minimum Illumination	0.1lUX/F=1.2(OLux with ON	0.1Lux/F=1.2(Olux with ON)	0.01Lux/F=1.2(OLux with OR ON)	0.01Lux/F=1.2(Olux with OR ON)
Video output	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm
Power Supply	DC12V	DC12V	DC12V	DC12V
Operating temperature	-20°C~75°C,RH 95%MAX	-20°C~75°C,RH 95% MAX	-20°C~75°C,RH 95% MAX	-20°C-75°C,RH 95% MAX
Storage temperature	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX
Lens angle	170°	170°	170°	170°
Waterproof	IP69K	IP69K	IP69K	IP69K
White Balance	auto	auto	auto	auto
