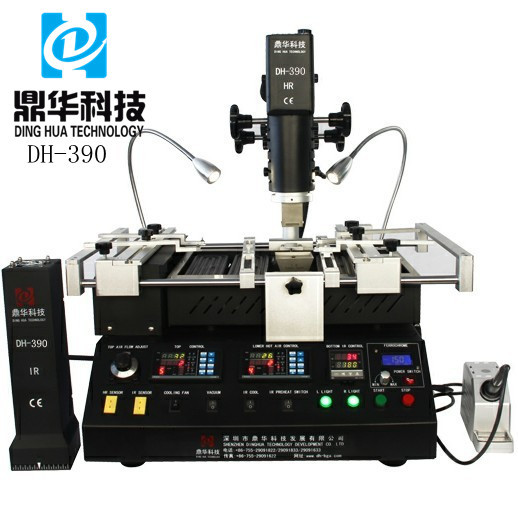

SPECFICATION:
|
Total Power
|
4350W/4800W
|
|
Top heater
|
450W/800W
|
|
Bottom heater
|
Second heater 2700W, IR preheating 1200w
|
|
Power
|
AC220V±10? 50/60Hz
|
|
Dimensions
|
560*530*590mm
|
|
Positioning
|
V-groove, PCB support can be adjusted in any direction with external universal fixture
|
|
Temperature control
|
K Sensor, Closed loop
|
|
Temp accuracy
|
±2?
|
|
PCB size
|
Min:20mm*20mm, Max:320mm*375mm
|
|
BGA chip
|
2*2~80*80
|
|
Minimum chip spacing
|
0.15mm
|
|
External Temperature Sensor
|
1(optional)
|
|
N.W
|
32 KG
|
Main Features:
IR & HR : hot air heating and infrared heating, double changed.
Three independent heaters: save up to ten temperature profiles and IR preheat area can be controlled according to PCB size
Moveable heater, easy to operate.
Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
V-groove PCB supports for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
Sound hint system. There is an alarm before the completion of each desoldering and soldering.
Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
CE certification, with emergency switch and automatic power-off protection device when emergency happens.
Three years warranty for the heating system, one year for the whole machine (Two years longer than other companies), free life-long technical support
Soldering iron, constant temperature digital readout.
