Details

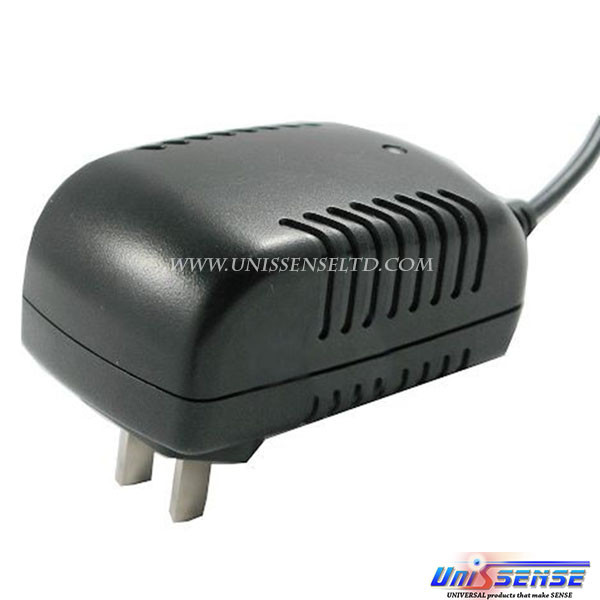

12v plug adapter
Features
Universal input voltage
No load power consumption: <0.3W
Single output
Optional output connectors
Short circuit protection
High efficiency & reliability
Output are available at request
2 years warranty
Specification for 12v plug adapter
Model
|
PS-002
|
Input voltage
|
100~240 VAC
|
Input frequency
|
50~60Hz
|
Input current
|
0.2A Max.
|
Safety ground leakage current
|
0.25mA Max.
|
Output power range
|
18W Max.
|
Ripple
|
1% peak to peak maximum
|
Over voltage protection
|
Yes. Protected by Zener diode
|
Over current protection
|
Yes. Auto-recovery' Standard series: rated output current >110% for primary-referenced direct drive (constant current series: rated output current 80~200% for secindary-referenced direct drive)
|
Short circuit protection
|
Yes. Hiccup mode. Auto-recovercy
|
Operating tmperature
|
-20℃ ~ 30℃
|
Storage temperature
|
-20℃ ~ 85℃
|
Relative humidity
|
5% to 95% non-condensing
|
Setup up / hold up / rise time
|
Typical: 3000mS / 50mS / 16mS at full load
|
Line reglation
|
±1% maximum for any input voltage change between input voltage range
|
Load regulation
|
Typical + 5% variations from minimum to maximum output current
|
Insulation resistance
|
50Mohm minimum from input to ground
|
Inrush current
|
30 AMPS @ 240 VAC at 25℃ cold start
|
Withstand voltage
|
4242VDC from input to output
|
Mean time between failure
|
100,000 hours minimum at full load at 25℃ambient
|
Safety requirements
|
UL, CUL, CE, GS, PSE, EK, CB
|
Warranty
|
2 years
|
Output voltage
|
3.0-5.0V 5.5-10.5V 11.0-18.0V 18.5-24.0V
|
output currency
|
0.01-2.5A 0.01-2.0A 0.01-1.63A 0.01-0.97A
|
* Please Inquire Now for further Information and cost of Product
