Details
Description:

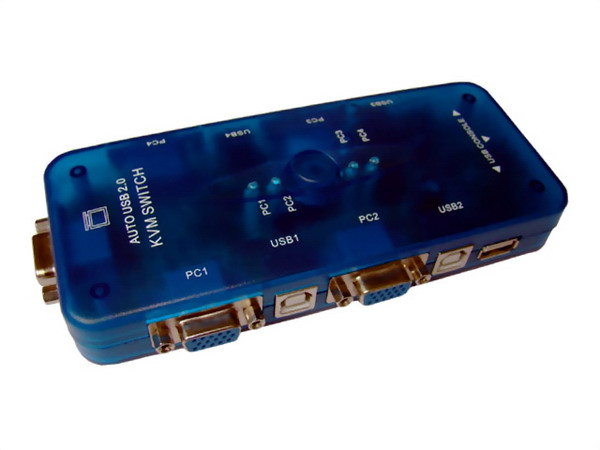

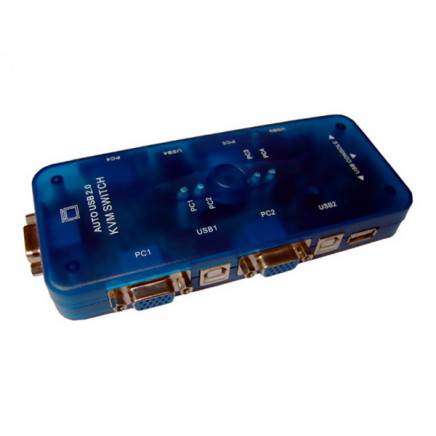

Controlling 4 PCs from one USB console, selection via push button
Support Microsoft Intellimouse, Logitech Net Mouse, etc
Support DOS, win3.X, Win95/98/98SE/2000/ME/XP, WinNT, Netware, Unix, Linux
Hot Plug-add or remove connected PCs for maintenance without powering off the KVM switch or PCs
Superior video quality-up to 1920*1440 Bandwidth: 200MHZ
No Software Required-easy PC selection via push Buttons, or hot keys
Auto scans function for monitoring PC operation
Keyboard status restored when switching PCs
LED display for monitoring status
Buzzer sound for switching port confirmation.
Specifications:
4 PCs Port,1 Console Port,4 MAX PC Connections
Console side: 1
Monitors controlled: 4
PC port connector: USB B female
3.5mm audio female
VGA HDDB 15pin female
Console Port connector: Mini Din PS/2keyboard 6pin female
USB A female
3.5mm audio female
VGA HDDB 15pin female
PC selection: Hot key/plate)
Scan pitch: 8 Sec.
Keyboard Emulation: USB
Mouse Emulation (Console port to PC port): USB
VGA Resolution: 1920X1440
Bandwidth: 250MHz
Housing: Plastic
