Abstract

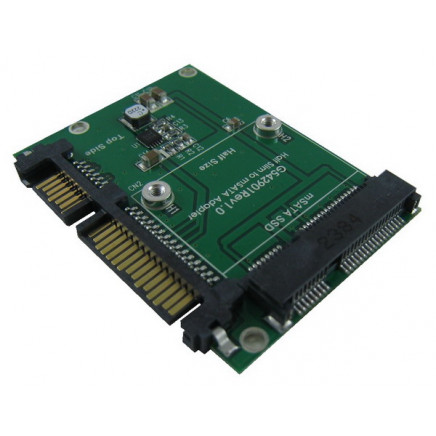

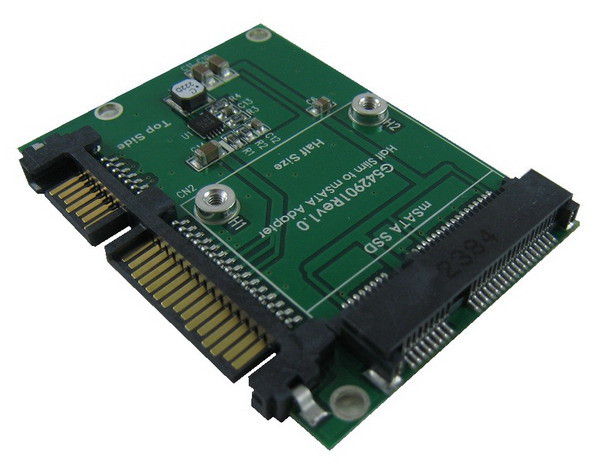

AD563FA9 is SATA to mSATA adapter, providing one 7+15pin SATA connector on the host connection and one Mini PCI-e 52-pin connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.

AD563FA9 adapter allows the installation of mSATA SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the mSATA SSD.

Specifications

Fully compliant with SATA revision 3.0
JEDEC MO-297A for Half Slim Form Factor
PCI Express Mini Card Electromechanical Specification 1.2
Power IC PWM / 1.4MHz 5.5V synchronous buck converter
Provide mSATA SSD input maximum current: 3A
Data transfer rate: 6Gb/s bandwidth
Support the following form factor mSATA SSD:
Half size: 26.8 mm (L) x 30 mm (W)
Operating temperature – Commercial (0°C to +70°C)

Application

1. desk-top PC
2. Internet Appliances
3. Kiosks
4. Industrial Computers
5. Routers
6. Firewalls

Support Storage Device

? AD563FA9 Adapter bottom side SanDisk U100 Series mSATA SSD and compatible msata SSD
