Introduction

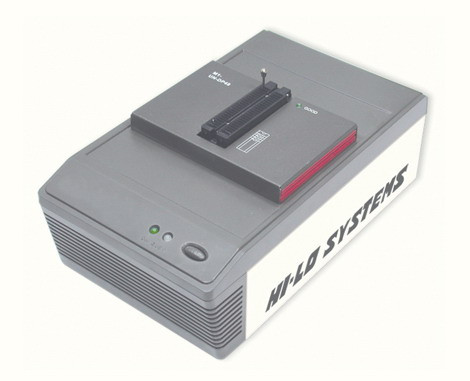

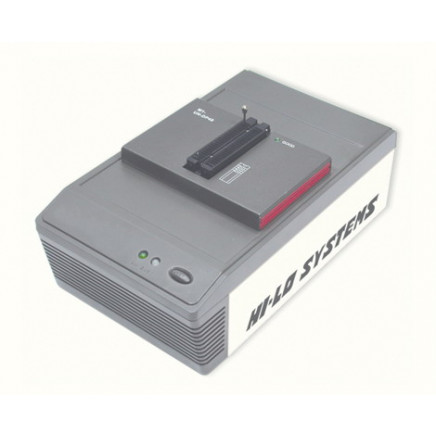

ALL-100 supports device programming for a variety of device types covering EPROM, EEPROM, Serial PROM, flash, PLD/CPLD/FPGA, MPU/MCU, etc. Most of programmable devices in DIP, SDIP, SOP, SSOP, TSOP, PLCC, QFP, or BGA package types can be programmed on a DIP48 Programming Module directly or through an appropriate ADAPTER/CONVERTER.

ALL-100 features high-tech pin drivers to provide excellent programming quality at high speed, high reliability and high expansion flexibility. All pin drivers of ALL-100 are fully programmable to meet modern programming /testing needs including newly released low voltage devices in the market.

A high speed USB port is provided to connect to the majority of notebook or desktop PC runs on Windows 98/ Me/ 2000/ XP/ Server2003. Multiple units of ALL-100 working simultaneously are possible via tiered star USB to achieve highest throughputs.

ALL-100 is a very powerful universal programmer which could be used either with single socket Programming Module or with 8 sockets Gang Programming Module to save future expansion cost. ALL-100 is designed to help engineering as well as production lines to tackle today's challenges in device programming.

Please click here to download the manual.
