PCB dimension:W20*D20~W550*500
PCB thickness:0.5~4mm
Working table adjustment:: ±120mm Forward/backward, ±80mm Left/right
Temperature control: K-type Thermocouple: Close Close Cycle Controlled
Area heater: Far infrared: 3600W
Top heater: Hot Gas: 1200W
Bottom heater: Hot Gas: 800W
PCB location way: Outer
Power supply: Single-phase 220v,50/60Hz
BGA dimension: 1*1~70*70mm
Min pitch of BGA ball: 0.15mm
Placement precision:  ±0.02mm
Max BGA weight:: 300g
Machine dimension: L850*W750*H630mm
Weight: 80kgs

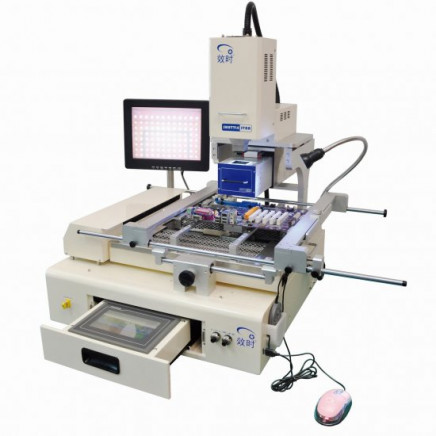

Features:

1. Hot air heater head and mounting head are designed 2 in 1, driven by step electric motor, have both the auto soldering and mounting function;

2. Three heaters( upper/lower hot air heater, bottom IR heater) heating independently, time and temperature can be displayed digitally on touch screen;

3. Upper heater is movable, convenient for operation;

4. Large movable bottom IR heating area, PCB clamps can be adjusted along with X & Y table flexibly, the max PCB size it can handle up to 550*500mm;

5. Powerful cross flow fans cool the bottom heating area rapidly with stable speed;

6. Color optical system with functions of split vision, zoom in/out and micro-adjust, equipped with aberration detection device; with auto focus and software operation function, 22 X optical focus, able to rework BGA sized up to 70*70mm;

7. Embedded industrial computer, touch screen interface, PLC control, real-time profile display, able to display set profile and 5 practically tested profile at the same time; can analyze the five practically-tested profiles;

8. Color LCD monitor;

9. Built-in vacuum pump, 60° rotation in ? angle, mounting nozzle is micro-adjustable;

10. 8 segments of temperature up (down) and 8 segments constant temperature control,  profile saving is unlimited in the industrial computer;

11. Suction nozzle can identify material and mounting height automatically,  and can control the air pressure within a small range of 30-50g;

12. Equipped with different hot air nozzles,  easy to replace and able to locate in any angle;

13. Can handle 775 socket, 478 socket, XBOX360, PS2/3 CISCO Sever etc.

Download user manual of SV550.
