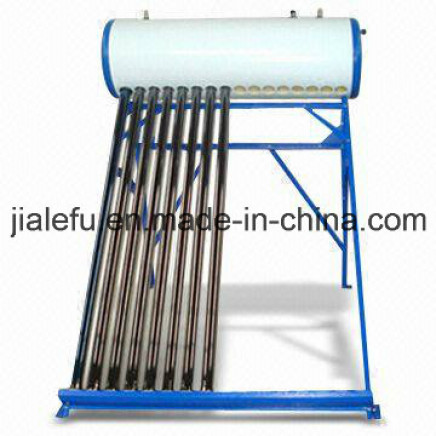

100lpd Solar Water Heater (58/1800mm three target)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 99.0-299.0/ Piece

Price:$99.0 - $299.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Paypal

Price Valid Time:From Apr 04, 2015 To Jun 18, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:JLF-SNP20

Structure:Compact Type

Pressure:Unpressurized

Interior Material:Stainless Steel

Collector Components:Glass Vacuum Tube

Certification:CE, ISO9001, CCC

Product:100lpd Solar Water Heater(58/1800mm Three Target)

Export Markets:Global

Additional Info.

Trademark:JJL

Packing:Standard Export Carton with Foam

Standard:58mm*1800mm

Origin:China

HS Code:8419191000

Production Capacity:5000sets/Month

Product Description

100LPD Solar Water Heater(58/1800mm three target)

Non-pressurized solar water heater specification:
1. Inner tank: 0.4mm-0.6mm thickness food grade SUS 304-2B Stainless steel
2. Tank diameter: 470mm/480mm outer tank, 360mm/370mm inner tank
3. Vacuum tube: QB-AL-N/AL-47-1500mm/58-1800mm
4. Outer tank: 0.31mm-0.4mm thickness Fluorine Carbon Plate/Color Steel
5. Frame: 1.5mm thickness Galvanized Steel
6. The material of insulation: 55-60mm thickness Polyurethane
7. The reflector: Stainless steel /Aluminum plate
8. Working efficiency: >95%
9. Heat Preservation time: 72-96hours
10. Hail resistance: 25mm
11. Inlet/oulet size: 1/2'', 3/4''
12. Tank capacity: 100L/110L/115L/135L/150L/165L/200L/250L/285L/300L
13. Air vent: 100% copper vent

TECHNICAL PARAMETERS OF Stronger Galvanized Seel Solar Water Heater ---LEADING MANUFACTURE
Description	Non-Pressurized Solar Water Heater
Material of out tank	0.31mm zinc-olor Steel
Material of inner tank	Food grade 0.31mmSUS304-2BStainless Steel/0.4mm
Tank insulating layer	50mm high-density polyurethane foamed
Diameter inner/out tank	420/310mm OR 460/360mm
Electrical Heater	1.5kw
Inlet and outlet hole	Male G 1/2, 3/4
Max pressure	0.05 Mpa
Solar collector tube	3.3 Borosilicate glass with / AL/N/AL(Single target) or Triple target. ALN/AIN-SS/CU
Thickness of glass tube	1.6mm
Vacuum tube tightness	P? 0.005 Pa
Absorption	as=0.93-0.96(AM1.5)
Emission ratio	? h=0.04-0.06(80C± 5C)
Idle sunning property parameters	Y=220~260m2. C/KW
Average heat loss coefficient	ULT=0.6~0.7W/(m2. C)
Bracket:	Galvanized steel 1.2mm
Structure of tank:	4 holes for air vent, overflow, water inlet and outlet, electric heater
welding:	Argon arc welding
fastening pieces:	Made of stainless steel screw
Feeder tank	5L Galvanized Steel Feeder Tank
