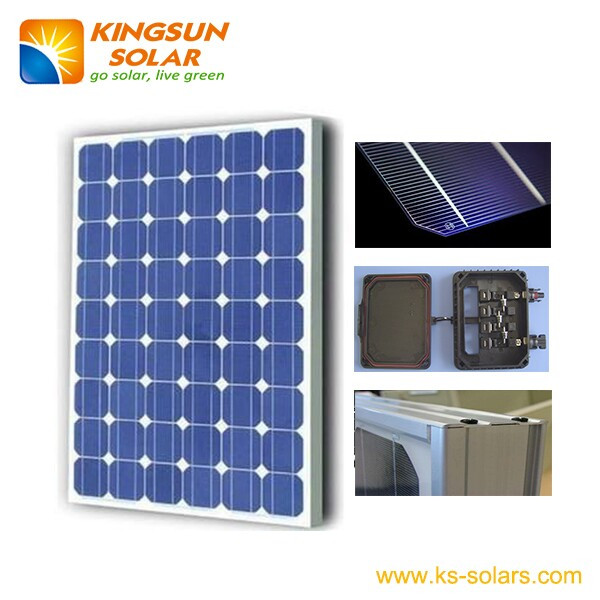

125W-150W Efficiency Mono Solar Panel Module

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:50 pcs

Trade Terms:FOB, CFR, EXW, CIF

Payment Terms:L/C, T/T, Western Union, Paypal

Trademark:Kingsun

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:KSM 125-150

Material:Monocrystalline Silicon

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Africa, Eastern Asia, Western Europe

Additional Info.

Trademark:Kingsun

Packing:Standard Export Carton Packaging

Standard:KSM125-KSM150

Origin:Nanjing, China

HS Code:85414020

Production Capacity:8MW/Month

Product Description

EFFICIENCY
Low voltage-temperature coefficient allows higher power output at high-temperature condition High efficient, high reliable solar cells ensure our product output stability

BENEFITS
Manufactured in an ISO 9001:2008 certified plant
High efficiency, high safety, high reliability
Output power tolerance of +/-3%
25-year limited warranty on power output, 5-year limited warranty on materials and workmanship

We provide long-term spot

Components & Mechanical Data

Junction Box in proof-water with TUV Certificate
Bypass Diode Rated 15A
Solar Cable & Connector: 4m² MC 4connector with TUV Certificate

1.Toughed Glass: The glass is super white cloth grain of toughened glass , the thickness of 3.2mm ,  the solar cell spectral response range of wavelengths (320-1100 nm), light transmittance over 91% , Ultraviolet light radiation , light transmittance is not falling . Toughened glass is made of components can withstand 25 mm in diameter of hockey hit at a speed of 23 m/s.
2. EVA:  0. 5 mm thickness with high quality EVA film as sealant of solar cell and and the connection between the glass, TPT agent. With high light transmittance and anti-aging ability. Solar cell encapsulation of EVA film after curing performance requirements:
Light transmittance is greater than 90% ; Crosslinking degree is more than 65-85% ; Peel strength (N/cm), glass/film is more than 30 ; TPT/film is more than 15 ; Temperature resistance , high temperature 85° C ,  low temperature - 40° C .,
3. TPT Back-Sheet: the back of the solar panel, ageing resistance , corrosion resistance , resistance to ultraviolet radiation, airtight, etc. Basic requirements.
4. Frame: aluminum alloy frame with high intensit , mechanical shock resistance ability

Strong, lightweight aluminum frame design with reinforced sealing and load hold to prevent freezing and warping, and stand against high wind.

Under Standard Test Conditions(STC): Irradiance of 1000W/m2, Am1.5 and 25º C cell temperature
Operating Temperature: -40 ~ +85° C
Storage Temperature: -40 ~ +85°

125W-150W Efficiency Mono Solar Panel Module

Module Type	KSM125- 125	KSM130- 125	KSM135- 125	KSM140- 125	KSM145- 125	KSM150- 125
Maximum power at STC(Pmax)	125W	130W	135W	140W	145W	150W
Maximum power voltage(Vmp)	26.8	26.9	27.0	27.2	27.4	27.5
Maximum power current(Imp)	4.66	4.83	5.00	5.14	5.29	5.45
Open circuit voltage(Voc)	31.6	31.8	31.8	32.0	32.2	32.4
Short citcuit current(Isc)	5.66	5.87	6.04	6.09	6.21	6.30
Nominal Operationg Cell Temperature	45±2
Temperature coefficients of Isc	+0.049%/
Temperature coefficients of Voc	-0.340%/
Temperature coefficients of Pmax	-0.430%/
Standard Test Conditions(STC)	Irradiance 1000W/m 2 , Module temperature 25, Air Mass(AM)=1.5
Power Proudction Tolercance	±3%
