12V 100ah Home Storage Battery for The Daily Using

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

12V 100ah Home Storage Battery for The Daily Using

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 620.72/ Piece

Price:US $620.72 / Piece

Trade Terms: FOB, CIF, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Jul 22, 2015 To Oct 22, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-12-100

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:Medium Discharge Rate

Size:Small, 323*171*215mm

Accessories Type:Chargers

Rated Capacity:100ah

Standard Voltage:12V

Usage:Solar System and Wind System

Electrolyte:LiFePO4

Rated Voltage:12V

Capacity:100ah

Weight:About 15 Kg

Package:Black Plastic Case

Warranty:24months

Green Energy:Zero Emission

Energy / Weight:120wh/Kg

Energy / Volume:310wh / L

Cycle Life:at Least 2000 Times

Components:32650 3.2V 5ah

Export Markets:North America, Mid East

Additional Info.

Trademark:OPTIMUMNANO

Packing:1. PVC Film 2. SLA Case 3. Customized

Standard:CE, UL, RoHS, SGS, TS/16949 and ISO9001-2008

Origin:China Mainland(Guangdong)

HS Code:8507600090

Production Capacity:1000pks/Day

Product Description

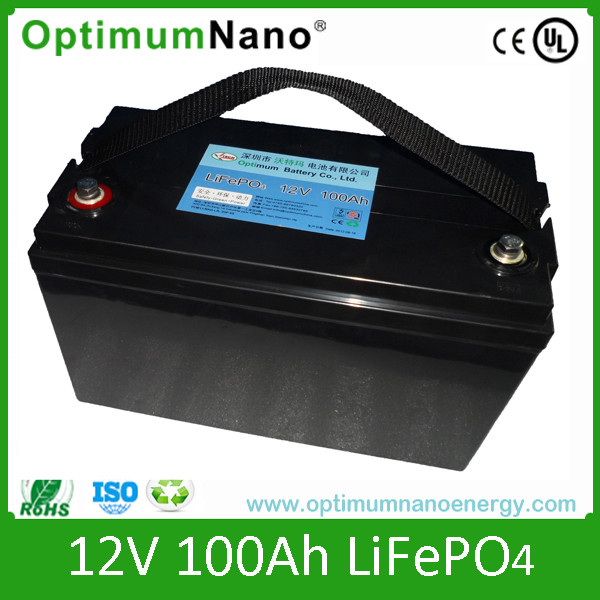

12V 100ah LiFePO4 Battery for The Solar System



	100Ah

Discharge -20ºC~60ºCdischarge -20ºC~60ºC
In optimumnano, each cell and pack is produced with the principle of "conformity in 6 aspects and 3 inspections in 3 stages", thus the high stability and reliability can be guaranteed."Conformity in 6 aspects" is a principal developed by optimumnano's engineers in production and inspection process.The application of ensures conformity of packs and improves service term of pack obviously.And "3 inspections in 3 stages" refers to inspections on battery assembly, paralleled modules and finished packs.

The feature of LiFePO4 battery
1, Safe:The iron-lithium battery is more safe and reliable than the lead acid one.It does not explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat.

2, Environment-friendly:Accredited with RoHS, without any hazardous and noxious substances.

3, Small in volume and light in weight:The iron-lithium battery is about 1/2 the volume and 1/3 the weight of the lead-acid battery.

4, Powerful:Able to discharge with 20C at 65.C max.

5, Steady performance:High power output:1C, continuous:3C pulse for normal cells and 20 C for special design.Low self-discharge rate, less than 3% monthly.

6, Long cycle life:Over 2000 cycles with capacity staying at 80% min.

7, Lower average price per year:The average price per year is 100 Yuan RMB less than the lead-acid battery for 5 years.

8, No memory effect:Always ready for charge and use, with no need to charge after a full discharge.

9, Wide temperature range:Available for use when the temperature ranges from -20° C to 70° C

Normal performance
No	Item	General Parameter
1	Cell Model(Single cell)	IFR32650
2	Standard Capacity	100Ah
3	Rated Voltage	12.8V
4	Max.Charge Voltage	14.6V
5	Cut-off Voltage	10V
6	Standard Charge Current	20A
7	Standard Charging Time	5h
8	Dimensions	Customized
9	Total Weight(Approx.)	About 15 kg
10	Impedance(Max, at 1000Hz.)	? 50m?
11	Temperature	Standard 0ºC~45ºC
		Discharge -20ºC~60ºC
		Storage -20ºC~45ºC

Applications:
·Electric Vehicles, such as E-bike, E-scooters, E-cars, E-bus;
·Electric boats, such as trolling fishing boat;
·Robots for industries and military;
·Remote data transfer system;
·Satellite communication station;
·Un-manned submarine;
·Un-manned aircrafts;
·Power tools, such as drilling, cutting and polishing tools;
·Power station for low temperature application, such as -40;
·Power supplier for Training systems, such as Torpedo Trainer
