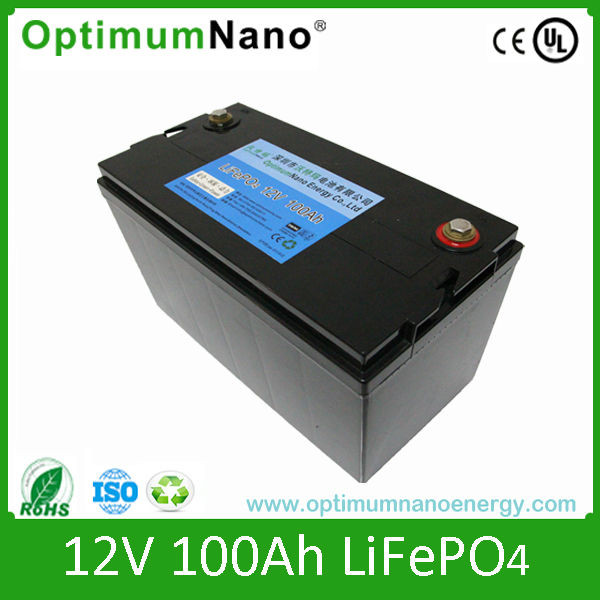

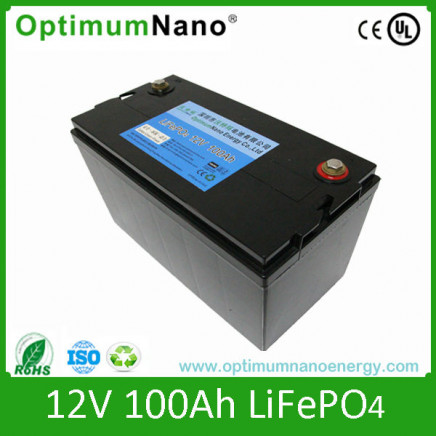

12V 100ah Lifepi4 DC Solar Battery

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 1.0-600.0/ Piece

Price:$1.0 - $600.0 / Piece

Trade Terms: FOB

Payment Terms: T/T

Price Valid Time:From Jul 31, 2015 To Oct 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-12-100

Material:Lithium Iron Phosphate

Sealed Type:Sealed

Maintenance Type:Free

Size:Customized

Weight:About 15kg

Max. Charge Voltage:14.6V

Cut off Voltage:10V

Operating Temperature:-20c-65 Centigrade

Cycle Life:2000 Times

Warranty:2 Years

Lead Time:15-20 Working Days After Payment

Export Markets:Global

Additional Info.

Trademark:optimumnano

Packing:Plastic Case

Standard:CE, UL, ROHS, UN38.3, BV, SGS, ISO9001, TS16949

Origin:Shenzhen

HS Code:85078020

Production Capacity:2000pks/Week

Product Description

12v 100ah lifepi4 dc solar battery

Specification - 12V 100Ah

Item	General Parameters	Remarks
Single Cell Model	IFR-32650-3.2V-5Ah
Rated Voltage	12.8V	Working Voltage-3.2V
Max. Charge Current	14.6V	Single Ave. Charge Voltage-3.65V
Cut-off Voltage	10V	Single Ave. Discharge Voltage-2.5V
Rated Capacity	100Ah
Standard Charge Current	20A	0.2C
Max. Charge Current	100A	1C
Standard Constinuous Dicharge Current	20A	0.2C
Max. Constinuous Discharge Current	100A	1C
Fast Charging Time	1h
Peak Discharge Current	200A
Dimension	customized
Weight	15kg
Color	black
Package	plastic case
Cycle Life	2000 times	with 1C charge and discharge rated, 25ºC temperature, 80%DOD
Charge Temperature	0-45ºC
Discharge Temperature	-20-65ºC
Storage Temperature	20-45ºC

1. Extremely safe and stable chemistry: Rigid Aluminum alloy housing protection, and

BMS built inside to balance protect the battery.

2. Long life-cycle, 5-7years/2000 times cyclelife

3. Lighter and smaller, 1/2 size weight of SLA batteries. 70% size/weight of NiMH/NiCd batteries

4. Wide operating temperature, high temperature resistance(-20-60 degrees celsius)

5. Steady performance,

Low self-discharge rate, less than3%monthly

6. No memory effects and highly efficient charge,

It can be recharged anytime, no reduction of the capacity

7. Green product, environment friendly: Clean and Green energy poses no pollution on our enviroment

Certification:

CE, UL, SGS/RoHS, RBRC, ISO9001: 2000, ISO1400, TS16949: 2002 issued by NQA

12V Energy storage lithium ion batteries

Lithium ion batteries advantage

1. Safety: Safest Li-ion battery, CE UL approved, built-in BMS, none fire, none explosive
2. Clean and Green energy, no toxic material contained, Environment-friendly.
3. Powerful: HP battery can discharge in 15C~20C
4. Long life cycle, > 2000 times deep cycle, 8 times of lead acid battery
5. No memory effect, highly efficient charge anytime, no reduction of capacity
6. Operation temperature: -20--60degrees celsius
7. Small size and light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni-CD battery, 1/2 weight of lead acid battery
8. Good performance at high temperature and high temperature resistance
9. Low self-discharge rate: < 3% monthly

Lithium ion batteries application

1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: E-bike, electric scooter, e-motor, electric golf car, forklift, cleanness car, electric wheelchairs
3. E-tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment
7. Solar and wind power energy storage system
