12V 20ah Golf Cart Battery Lithium Battery with Charger

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, EXW

Payment Terms:T/T, Western Union

Trademark:OPTIMUMNANO

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description
Additional Information
Reviews

Description

Details

Basic Info.

Model NO.:OPT-012-020

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rated Voltage:12.8V

Capacity:20ah

Max. Charge Voltage:14.6V

Cut-off Voltage:10V

Cycle Life(1c/80%):More Than 2000times

Certification:CE,UL,RoHS,Tlc,PSE

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:1. PVC Film 2. SLA Case 3. Customized

Standard:CE, UL, RoHS, SGS, TS/16949 and ISO9001-2008

Origin:Shenzhen, Guangdong, China

HS Code:8507600090

Production Capacity:10000pks/Day

Product Description

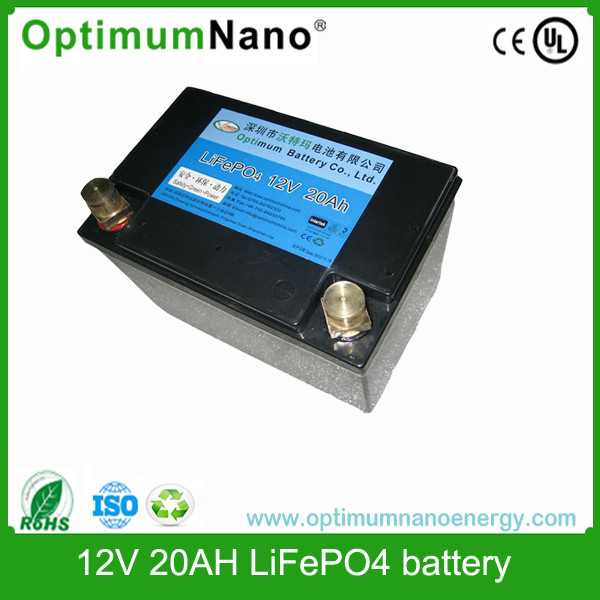

12V 20Ah golf cart battery lithium battery with charger

1. Cell Model (Single cell): IFR32650
2. Standard Capacity: 20Ah
3. Rated Voltage: 12.8V
4. Max. Charge Voltage: 14.6V
5. Cut-off Voltage: 10V
6. Standard Charge Current: 4A
7. Max charge current: 2C
8. Standard Charging Time: 5h
9. Cycle life(1C/80%): ? 2000
10. Dimensions: Customizable
11. Weight: About 3 kg
12. Impedance: ? 50m?
13. Charge temperature: 0° C~45° C
14. Discharge temperature: -20° C~55° C
15. Certification: CE, UL, ROHS, TLC, PSE, TS16949, ISO9001, BV, SGS
16. MOQ: 1 unit is ok for your first battery pack to be tested.

Packaging & Delivery

Packing case: 1. PVC film 2. Epoxy board+ PVC film 3. SLA case 4. Customized
Delivery Detail: 15-25days
Warranty: 2years

Shipping & Payments

Shipping and handling:
Item location: Shenzhen, Guangdong, China (Mainland)
Shipping: TNT, DHL, UPS, FEDEX, EMS and so on
Shipping to: Worldwide

Payments: T/T in advanced

MOQ: 1 unit is ok for your first battery pack to be tested.

Optimum LiFePO4 battery Features:

A. Safety
The chemical structure of LiFePO4 is very stable

B. Long life cycles
>2000 times cycle life at 0.1C-1C discharge/charge rate

C. High energy density
Energy density: 135 Wh/kg
Weight: 1/3 of lead acid, 2/3 of Ni-MH
Volume: 2/3 of lead acid

D. Wide range Temperature Adaptability
Working temperature range: -20° C--60° C

E. No memory effects and highly efficient charge: It can be recharged anytime, no reduction of the capacity

F. Low self-discharge
Self-discharge<3%(month), while the monthly self discharge of sealed lead acid battery is 10%.

G. Environment friendly
Optimum LiFePO4 battery has great efficiency for energy conservation and emission reduction,
Without any hazardous and noxious substances

Comparison between LiFePO4 and other batteries
Technical Parameter	liCoO2	LiNiCoMnO2	LiMn2O4	LiFePO4
Tap Density(g/cm3)	2.8~3.0	2.0~2.3	2.2~2.4	1.0~1.4
Specific Surface Area(m2/g)	0.4~0.6	0.2~0.4	0.4~0.8	12~20
Energy Density (mAh/g)	135~140	155~165	100~115	130~160
Discharge Plateau (V)	3.6	3.5	3.7	3.2
Cycle Life	?300 cycles	?800 cycles	?500 cycles	?2000 cycles
Environment Friendly	Co contained	Co, Ni contained	Micro toxicity	Innocuity
Safety Performance	Bad	Normal	Good	Never catch fire or explode under extreme condition , safest
