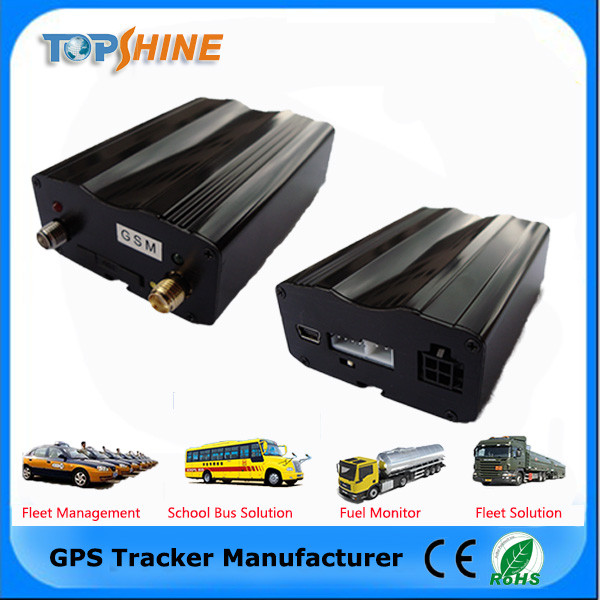

2015 Anti Theft Gps Tracker TK Star Gps Tracker VT200
About TopshineTopshine Electronic Technology Co.,Ltd is specialize in R&D innovation manufacturing superior GPS products in terms of GPS Personal Tracker, GPS Vehicle Tracker, GPS Tracking System and Integrated GPS Tracking Solutions. We are real GPS tracker manufacturer who have
worked at gps tracker and car electron since 2005 year, we have our own engineer team,they are good at customize for our clients.Product Description VT200 is a GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GPRS modules, VT200 has good sensitivity and stable performance. Especially, VT200 is well designed to work with our web-based tracking system, which is suitable for a company to establish a tracking server to provide real-time tracking solutions to their customers or manage their fleet.
Application 1. Vehicle Real Time Tracking
2. Car Security/Anti-Hijack
3. Fleet Management
4. Car alarm Functions| Real time tracking by SMS / GPRS | Harsh braking & accelerating alarm |
| Track by time interval | Cut off engine remotely by SMS/GPRS |
| Track by distance interval | Voice monitoring / listening in |
| Track by angle interval | ACC / Engine on alarm |
| Check Google map link & actual address name | Geo-fence setting / alarm |
| Over speed alarm | SOS emergency alarm |
| Set authorized phone numbers for alarms | External power cut off alarm |
| Anti-temper alarm | Real time fuel consumption monitoring |
| Temperature sensor supported | Car alarm |
| GPS tracker with external sensitive antennas | RFID driver identificaton & anti-theft |
| Dimension | 75*54*25mm |
| Weight | 123g |
| Input voltage | DC 9V~24V/1.5A |
| Back-up Battery | 650mAh/3.7V |
| Power Consumption | 65mA standby current |
| Operating Temperature | -20°C~55°C |
| Humidity | 5%~95% |
| Battery Work Time | 33 hours in power-saving mode and 8 hours in normal mode |
| LED | 2 LED lights to show GPS, GSM status |
| Button | 1 SOS and 1 power on/off |
| Microphone | Default |
| Memory | 2M Byte |
| Sensor | Motion sensor |
| GSM Frequency | GSM 850/900/1800/1900MHz |
| GPS Chip | Latest GPS SIRF-Star III Chipset |
| GPS Sensitivity | -159dB |
| Positioning Accuracy | 10meters, 2D RMS |
| I/O | 2 Input
1 Analog Input Detection
2 Output
1 USB port |
Optional Accessories We usaually use DHL, FeDex, EMS express for small orders. You can also assign your special couriers.
Unix box: color box or neutral white box / yellow box.Shipment: 3 to 5 days after payment. Our ServiceOur price comes with high quality products, free tracking software in our server, lifetime technical support, lifetime customized support, OEM logo brand services, etc. Not just the devices.Lifetime free tracking software
Our factoryOur factory has experienced continuous expansion since it opened in 2009. The factory is now over 1,000 square meters in size and is filled with professional equipment, such as SMT and machines alike, to better sever our customer base. Why choose us1.100% made of industrial grade components special GSM and GPS module, reject cheaper and unstable MTK solution hardware or second-hand component solution.
2.Provide two free tracking platform, one is for PC ,other is for moblie
phone. they won't ask for any charge forever. you can try to login with these two link via PC and mobile phone:
PC : www.global-track.net
Mobile : www.global-track.net/login.jsp
user name: demo
Password: 1
3. 100% origin,factory price, best technic and after-sale support,2 years warranty, free to help you to build your own tracking server.
4. We are good at customization job, if you have any good idea in gps tracker, we will
try to achieve for you.
FAQ
Q: Why the tracker can't be switched on?
A: 1. Check if wiring is correct or not.
2. Charge the tracker.
Q: No response to SMS command
A: 1. Wrong password. Please check your password.
2. No GSM mobile signal or weak GSM network. Try later.
3. Out of SIM credit. Please pop up.
4. SIM is damaged. Change a sim card.
5. SIM card is without sending function. Change a SIM or enable SMS sending function.
6. SIM card isn't installed properly.
Q: Why there is a "Last" appearing in a positon report SMS?
A: There is no GPS signal. Please take the tracker to somewhere open area.
Q: How to use tracking platform?
A: 1. Set GPRS parameter in Parameter.exe.
2. Set GPRS parameter by SMS.
(1) Set tracker ID: W<password>,010,ID
(2) Set APN: W<password>,011,APN name
(3) Set IP and Port: W<password>,012,210.209.68,9600
(4) Enable GPRS: W<password>,013,1
(5) Set report time interval: W<password>,0.14,00000
(6) Open link www.global-track and create vehicle info in Manage - Vehicle Manage
Q: How to connect Relay to cut off engine?
A: Cut off fuel pump wire, connect green wire of relay with fuel pump line, connect yellow wire with relay yellow wire, connect white wire with 12V power supply line.
