1. Volume: 20ft or 40ft
2. Authentication: 3C, ISO, SGS
3. The manufactory for LPG tank cantainer, Chemical container.

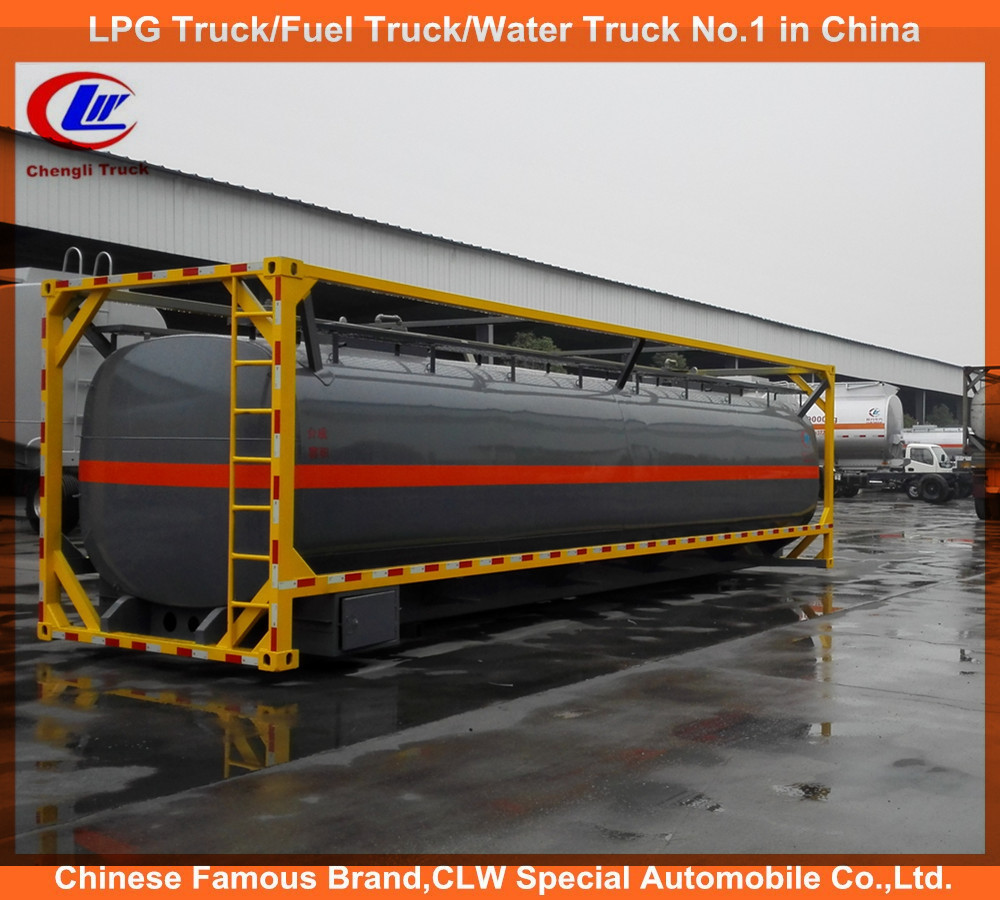

40ft ISO Tank Container 40ft liquid chemical Tank Container
Chengli Special Automobile Co., Ltd
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.
Workshop View:
More information of our ISO tank container, please feel free to contact with Ms. Helen Jiang. We will customize the tank container according to your requirement.
Sales Manager: Ms. Helen Jiang
Our main truck:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Main Technical Parameter |
Product Model |
DONGFENG DFAC 5Ton to 10Ton Dump Truck |
Product Brand |
CLW |
Wheelbase(mm) |
3650 |
Overall Dimension(L*W*H)(mm) |
6640 ×2490×2850 |
Front/ rear suspension(mm) |
1250/1550 |
Axle number |
2 |
Actual Payload(kg) |
10ton |
Compartment Dimension(L*W*H) |
4300 ×2300×800 |
Curb weight(kg) |
6835 |
Front/Rear axle load(Kg) |
3600/7195 |
Approach/ departure angle ( ° ) |
30/13 |
Max Speed (km/h) |
75 |
Cab capacity |
3 |
Cab Type |
Flat proof, one and half row |
Chassis Technical Parameter |
Chassis Model: |
EQ3142GD4AC |
Chassis manufacturer: |
DONGFENG Motor Co., Ltd |
Gear Box |
Dongfeng 653 shift |
Transmission type: |
Manual |
Steering Type |
LHD |
Traction Type: |
4*2 |
Brake System |
Air brake |
Number of Tire |
6 with a spare |
Leaf Spring number: |
12/12+9 |
Tire size/type |
9.00-20 |
Engine specification |
Engine Model: |
YC4E130-33 |
Engine Brand |
YUCHAI |
Fuel type: |
Diesel |
Displacement(ml) |
4214 |
Emission stand |
Euro 3 |
Power(kw) |
96(130hp) |
Warranty |
One year from the date of supply |
Superstructure parameter |
1. Strengthen T lifting, 24V Electric system, electrically hydraulic operation control |
2. load Capacity:10m 3 -15m 3 |
3.Lifting type: Middle lifting type ,rear dump type |
4. Material: floor 8mm side & back 6mm thickness carbon steel |
