210W Efficiency Mono Silicon Solar Panel

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$0.44 - $0.53 / W

Min. Order (pcs)	Unit Price
10.0	US $ 0.53/
100.0	US $ 0.44/

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Nov 19, 2014 To Feb 07, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:KSM210-48

Material:Monocrystalline Silicon

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Western Europe

Additional Info.

Trademark:Kingsun

Packing:Standard Export Carton Packaging

Standard:KSM210

Origin:Nanjing, China

HS Code:85414020

Production Capacity:8MW/Month

Product Description

We provide long-term spot

SOLAR PANEL / PV MODULE:
1. Use A-grade solar cell with high efficiency;
2. High transmittance, low iron tempered glass with enhanced stiffness and impact resistance;
3. Anodized aluminum alloy frame with high mechanical strength for easy installation;
4. Anti-aging EVA and high flame resistant Back Sheet (TPT), to provide long-life and enhanced cell performance;
5. Outstanding electrical performance under high temperature and low irradiance conditions;
6. 100% apply EL(electroluminescence) technology;
7. 5 years limited warranty, 10 years limited warranty for 90% power output, 25 years limited warranty for 80% power output;
8. With CE, TUV, IEC61215 and IEC61730 certificate
GUARANTEE
10 years for product defects in materials & workmanship
25years transferrable power output warranty: 10 years at 90% of the minimal rated power output, 25 years at 80% of the minimal rated power output
Reference Pictures

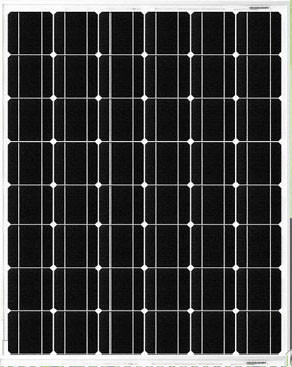

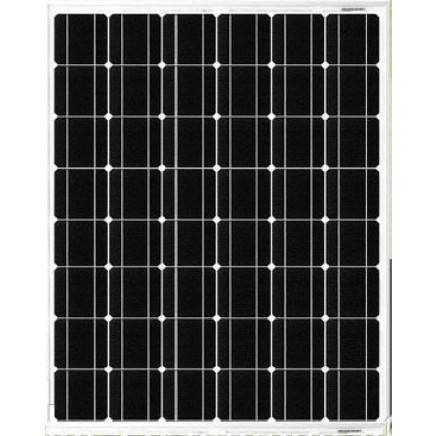

210W Efficiency Mono Silicon Solar Panel

MECHANICAL PARAMETERS
Solar Cell	48(6×8) mono solar cells 156×156 mm
Front Cover	3.2 mm thick, tempered glass
Back Cover	TPT (Tedlar-TPE-Tedlar)
Encapsulate	EVA (ethylene vinyl acetate)
Frame	Double-layer anodized aluminium alloy
Junction Box	IP65 rated
Cables/Connectors	4.0mm 2 900mm/MC4 or compatible connectors
Dimensions	1320×992×35mm
Weight	15.7 kg

WORKING CONDITIONS
Maximum System Voltage	DC 1000V (IEC)
Maximum Series Fuse	15A
Operating Temperature	-40ºC~+85ºC
Storage Temperature	-40ºC~+85ºC
Max. Wind Load/Max. Snow Load	2400Pa/ 5400Pa
Application Class	Class A
Module Area(m 2 )	1.31m 2
Packing configuration	334Pcs./20ft, container 720Pcs./ 40ft, container

ELECTRONIC PARAMETERS
Module	KSM210Wp-156M-48
Maximum power at STC (Pmax)	210W
Maximum power voltage (Vmp)	24.0
Maximum power current (Imp)	8.75
Open circuit voltage (Voc)	29.2
Short circuit current (Isc)	9.46
Nominal Operating Cell Temperature	45±2ºC
Temperature coefficients of Isc	+0.049%/ºC
Temperature coefficients of Voc	-0.340%/ºC
Temperature coefficients of Pmax	-0.430%/ºC
Standard Test Conditions (STC)	Irradiance 1000W/m 2, Module temperature 25ºC,Air Mass (AM)=1.5
Power Production Tolerance	±3%
