23000L Dongfeng Double Rear Axles Oil Delivery Trucks

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

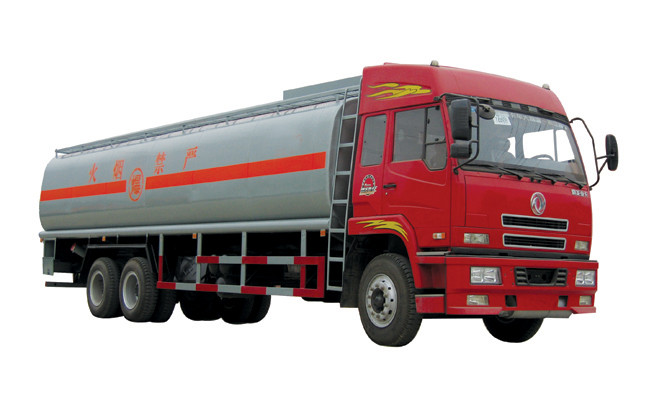

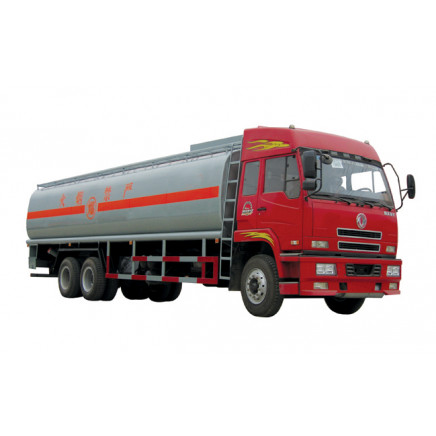

23000L Dongfeng Double Rear Axles Oil Delivery Trucks

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 29980.0-30990.0/ Piece

Price:$29980.0 - $30990.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jul 01, 2015 To Jul 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW

Transmission Type:Manual

Power:Diesel

Load Capacity:11-20t

Emission Standard:Euro 3

Tank Volume:15001-30000L

Drive Wheel:6�4

Seats:?5

Horsepower:150-250hp

Engine Capacity:6-8L

Storage:Oil

Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO, DOT, Asme ASTM

Tire Design:Radial

Condition:New

Material:Carton Steel Q235

Exhaust/Power(Kw):210HP

Type:Fuel Tank Fuel Tank Truck Fuel Tank Trailer

Engine Model:Dongfneg

Wheel:10wheels

Capacity:22000L

Driving Model:6*4

Chassis Model:EQ1250

Warranty:One Year for Three Parts (Engine, Gearbox, Axle)

Package:Bulk, RO-RO, Container, Naked for Fuel Tank Truck

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:RO-RO Bulk Naked Container

Standard:ECE ISO GCC CCC ASME ASTM

Origin:Hubei China

HS Code:87163110

Production Capacity:100000PCS/Year

Product Description

Main feature of our 23000L dongfeng double rear axles oil delivery trucks for sale
1.Basic equipments: PTO, gear pump, access ladder, anti-slip walkway, handrail, manhole, fire extinguisher,
side lamps and reflective stickers etc.

2. Tank can be divided to several compartments per customer's request.

3. Built-in anti-wave plate, steady during transportation, high safety.

SPECIFICATION:
CHASIS
1.Description:DONGFENG 20CBM 6X4 Fuel tank Truck
2.Drive Model:6X4
3.Chassis:EQ1160
4.Dimensions(L x W x H)mm:11000*2500*3500
5.Wheel base (mm):5400+1300
6.Overhang (front/rear) (mm):1250/2900
7.Wheel track (front/rear) (mm):2005/1860/1860
8.Approach/Departure angle(�):25/15
9.Curb Weight:10325kg
10:GVW.:25000kg
11.Max. driving speed(km/h):80

ENGINE
12.Engine Model:ISB210 33
13.Type:4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
14. Horse Power(HP):210
15.Emission standard:Euro III
16.Gearbox:8 forwards & 1 reverse
17.Clutch:Reinforced diaphragm clutch
18.Tire:10.00R20. 10 pcs+1 spare tire

UPPER
19.Fact cubage:22000liter
20.Tank material:Q235 carbon steel
21.Tank thickness:6mm
22.Body Internal Dimension:8150*2300*1600mm

EQUIPMENT
optional:1.Tank can be separated to several unattached small tanks to fill different fuels
2.Tank material: carbon steel,stainless steel,FRP etc.
3.Tank shape: Roundness , quadrate , oval
4.Oil pump: self-priming pump,gear pump
5.Oil meter:single,double,Fiscal processor
standard:1.Equipped with valves and pipes,a set of Fuel Dispenser
2.Equipped with a ladder on tank
3.Install with the motion of the satellite positioning function recorder

If you are interested in this model, pls feel free to send inquiry, and we will always be glad to quote.

of 340HP

COMPANY INFORMATION
ClW Heavy Industry Co., Ltd
which was appointed by the Development and Reform Committee of China.Chengli is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
� Established from 2004.
� 12 independents workshops.
� 1000 sets of equipment, 25 assemble lines.
� 300 senior engineers and technicians. About 2000 to 3000 workers
� 380kinds of trucks and semi-trailers.
� 20 years wholesale experience
� Turnover 250 million and Export 20million annually
� Turnover 2 billion trucks and semi-trailers annually.
� Truck Sold to 80 countries
� Cooperates with DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC

ADVANTAGES
1. We have own factory located in Suizhou---the special truck town of China. we can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitive price.
2. We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.
3.  There is a strong professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers

OUR PPRODUCTS
1.LPG Tank /Skid LPG Tank /LPG Tank Truck /LPG Tank Trailer/LPG accessory
2.Fuel Tank/Fuel Tank Truck/Fuel Tank Trailer
3.Water Tank/Water Tank Truck / Water Sprinkler Truck/Water Wagon/Milk Truck
4.Van truck/Refrigerator truck/Explosion Proof truck
5.High-altitude Truck/Truck with crane
6.Chemical Liquid Truck
7.Bulk cement truck/Cement Powder Tank truck
8.Concrete Mixer Truck
9.Tractor
10.Fire fighting truck/ Fire Truck / Fire Vehicle
11.Dumper/Tipper Truck/Side Tipper/End Tipper
12.Wrecker
13.Flat transport truck
14.Sweeper truck
15.High pressure cleaning truck
16.Liquefied Gas Transport Truck
17.Pressure Vessel
18.Fecal suction truck / Sewage suction truck
19.Self-loading garbage compactor truck
20.Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as strict quality control system can ensure all the tank from us run very well with 10-20 years use life.

FAQ
1.Our price term: FOB Shanghai as common, other port is also acceptable.
2. Our Payment term: T/T, 30% deposit after order confirmation, 70% balance should be paid before delivery.
3. Delivery time: the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current production condition.
Packaging and shipping
1, Packaging: nude or waxing;
2. Shipping: RoRo ship or bulk ship according to the customer' order or requirement
Technique Parameters

Description	DONGFENG 20CBM 6X4 Fuel tank Truck
Drive Model	6X4
Chassis	EQ1250
Number of axles	3
Vehicle Main Dimensions	Dimensions(L x W x H)(mm)		11000�2500�3500
	Wheel base (mm)		5400+1300
	Overhang (front/rear) (mm)		1250/2900
	Wheel track (front/rear) (mm)		2005,1860/1860
	Approach/Departure angle(�)		25/15
Weight in KGS	Curb Weight		10325
	GVW.		25000
Max. driving speed(km/h)			80
Engine	Model		ISB210 33
	Type		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		210HP
	Emission standard		Euro III
	engine capacity(ml)		6700
Gearbox	8 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	250
Tire	10.00R20 tire , 10 + 1(spare)
Brakes	dual circuit compressed air brake
Tank
Material	Q235A Carbon steel
Medium	Oil
Loading Capacity (m�)	21.71
Overall dimensions(mm)	8150�2300�1600
Thickness(mm)	6
The back of the protective	section size (mm)	100�50�5
	ground height (mm)	520
ABS model	3631010-C2000
optional Equipment	Tank can be separated to several unattached small tanks to fill different fuels Tank material: carbon steel,stainless steel,FRP etc. Tank shape: Roundness , quadrate , oval Oil pump: self-priming pump,gear pump Oil meter:single,double,Fiscal processor
Standard Equipment	Equipped with valves and pipes,a set of Fuel Dispenser Equipped with a ladder on tank Install with the motion of the satellite positioning function recorder Using front coil brake and installation of ABS and the chassis front muffler
