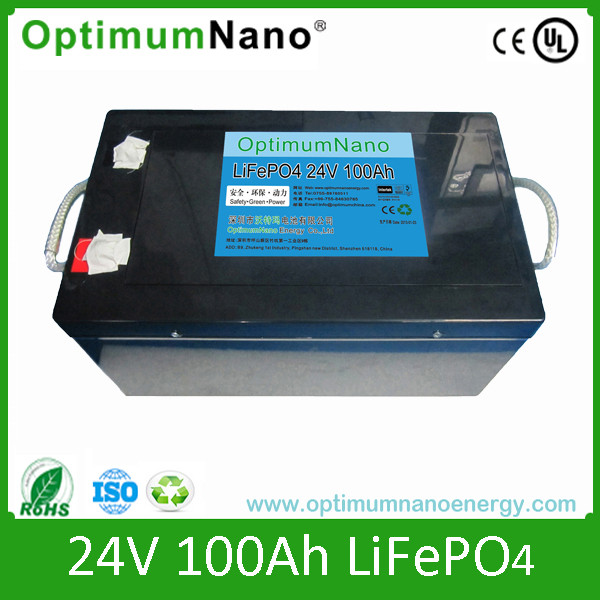

24V 100ah LiFePO4 Battery for Solar Power System

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$100.0 - $4000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 4000/ Piece
1000.0	US $ 100/ Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Jul 31, 2015 To Oct 29, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description
Additional Information
Reviews

Description

Details

Basic Info.

Model NO.:OPT-24-100

Type:Lithium-Ion Batteries

Usage:Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat

Nominal Voltage:24V

Discharge Rate:Low Discharge Rate

Shape:Cylindrical Battery

Electrolyte:LiFePO4

Installation:Packaged

Rechargeable:Chargeable

Place of Origin:Guangdong, China

Brand Name:Optimum

Nominal Capacity:100ah

Size:520*269*220mm

Color:Black .Blue

Minimum Capacity:95ah

Max. Charge Voltage:29.2V

Cut-Offf Voltage:20.0V

Weight:About 42kg

Charging Time:6 Hours

Export Markets:Global

Additional Info.

Trademark:OPTIMUM

Packing:PVC, Oxygen, Plastic Box, Carton

Standard:UL CE ROHS TS16949 ISO9001 SGS Standard

Origin:Guang Dong, China

HS Code:8507600090

Production Capacity:5000pks/Week

Product Description

24v100ah LIFePO4 battery for solar power system

Advantages:
1. Longer life, High safety.
2. Light weight, smaller size.
3. High power.
4. High-temperature working capability.
5. Steady discharge and charge performance.
6. Low self discharge, no memory effect.
7. Green products, environmental friendly.

About Us:
OPTIMUM BATTERY Co., Ltd specialize in manufacturing LiFePO4 battery, which can be used in EV/HEV/communication base/e-tools/energy storage etc.

We also can design the battery structure according to your own needs.
Any products you are intereseted in, pls keep me posted.

In order to meet your needs, would you pls confirm those questions as below when you send me the enquiry.
1Which field will you plan to use this battery pack?
2What is the rated power and the max load?
3What is the continuous discharge current and the max discharge current?

Specific Information:

Model				OPT-24-100
Standard capacity(0.2C)				100AH
Minim um capacity(1C)				100AH
Rated voltage				24V
Max. Charge voltage				29.2V
Cut-off voltage				20V
Standard Charge Current				20A
Max. charge Current				100A
Max Discharge current				100A
Pulse Discharge Current				200~300A
Cycle life				>2000 times
Package				blue/black case
Length				525mm
Width				270mm
Height				220mm
Weight(Approx. includng case)				42Kg
Impadence(Max. at 1000Hz)				? 45m?
Charge Parameter
Charge method (CC/CV)	Standard	CC	0.2C	3.65 cut off
		CV	3.65V	0.05 cut off
	Rapid	CC	1C	3.8 cut off
		CV	3.65V	0.05 cut off
Operate temperature		Charge		0~45°C
		Discharge		-20~65°C
		Storage		-20~45°C

Application:
UPS, Solar/Wind System, Energy Storage, E-Tool,E-bike,E-car, electric wheelchair, electric robort and so on

- - Packaging & Delivery

Packing case: 1. PVC film 2. Epoxy board+ PVC film 3. SLA case 4. Customized
Delivery Detail: 15-25days
Warranty: 2years

- - Shipping & Payments

Shipping and handling:
Item location: Shenzhen, Guangdong, China (Mainland)
Shipping to: Worldwide
Payments: T/T in advanced

- - Service by Optimum
Give you the specific battery pack within 24hours according to your requirements
One-stop battery solution with battery cells, BMS, case and matching charger
