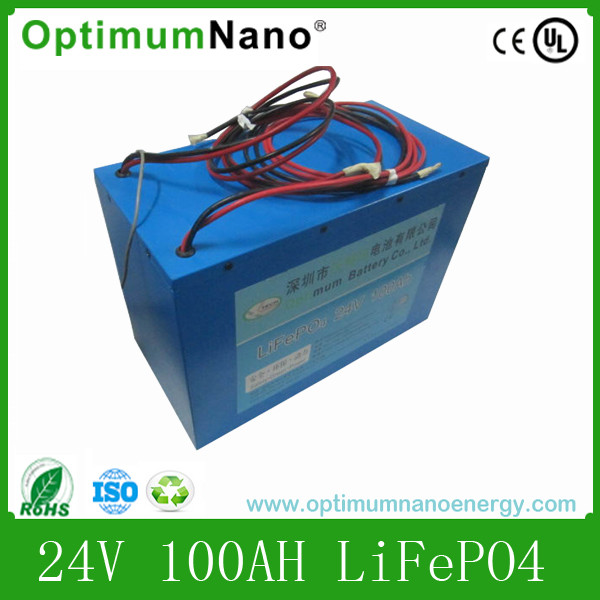

24V 100ah LiFePO4 Battery Pack for Home Energy Storage System

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1.0 - $1200.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 1200/ Piece
100.0	US $ 1/ Piece

Trade Terms: FOB, CIF, DDP, CPT, EXW

Payment Terms: L/C, T/T, Western Union, Cash

Price Valid Time:From Jul 27, 2015 To Oct 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-24-100

Type:Lithium-Ion Batteries

Usage:Car, Bus, UPS, Electric Power, Lighting, Electric Bicycle, Boat

Nominal Voltage:24V

Discharge Rate:High Discharge Rate

Shape:Flat Battery

Electrolyte:LiFePO4

Installation:Packaged

Rechargeable:Chargeable

Rated Voltage:24V

Rated Capacity:100ah

Application:Home Solar System, UPS, E-Boat

Warranty:2 Years

Certificates:CE, UL, RoHS, BV, SGS, ISO9001, Ts16949

Maintenance Type:Free

Oversea Market:Europe, South America, Middle East, etc

Cycle Life:at Least 2000 Times

Export Markets:Global

Additional Info.

Trademark:Optimum or OEM

Packing:Plastic Case/Iron Case

Standard:CE&UL. ROHS, TS16949, ISO9001-2008

Origin:Shenzhen, Guangdong, China

HS Code:8507600090

Production Capacity:100 PCS/Day

Product Description

24V 100AH battery for wind power generation system, solar energy storage, electric forklift, communication base station, family emergency power, sightseeing bus and so on.

1)Rated voltage 24V
2)Rated capacity 100AH
3)Max charge voltage 29.2V
4)Cut off voltage 20V
5)Battery weight about 56kg(include steel case and wood case)

LiFePO4 advantages
1)Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-CD or SLA.
2) Non-Toxic, environmentally-friendly product.
3) High safety
LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material
LiFePO4 cells do not incinerate or explode under extreme conditions
4) Good performance in high-current discharge cycles.

We can design different capacity and different size batteries to meet your demand.

Optimum Battery

Main Supplier of New Energy Automobiles Power for The Universiade Shenzhen 2011

The Leading Supplier of Lithium Iron Phosphate Battery For New Energy Automobiles in China

Large-Scale Supply of LiFePO4 for Electric Bicycles and other Light Vehicles.

Battery Parameter
Model		OPT24-100
Standard capacity(0.2C)		100AH
Minim um capacity(1C)		99AH
Rated voltage		24V

Max. Charge voltage		29.2V
Cut-off voltage		20V
Standard charge current		20A
Max charge current		20A
Max discharge current		100A
Pulse discharge current		200A
Cycle life		2000 times
Package		Glue case
Length		341MM
Width		173MM
Height		283 MM
Weight(Approx, including case)		32KG
Impedance(Max, at 1000Hz)		? 45m?
Charge Parameter
Charge method (CC/CV)	Standard	CC	0.2C	3.65 cut off
		CV	3.65V	0.05C cut off
	Rapid	CC	1C	3.8V cut off
		CV	3.65V	0.05C cut off
Operate temperature		Charge	0°~45°C
		Discharge	-20°C~60°C
		Storage	-20°C~55°C
