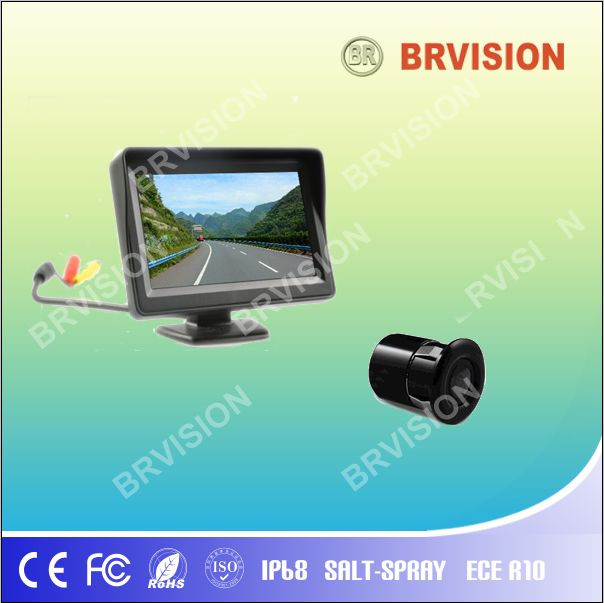

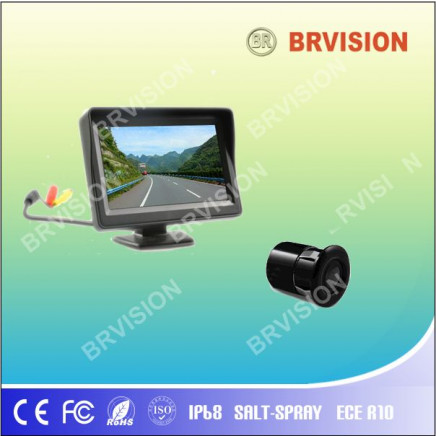

4.3 Inch TFT LCD Color Monitor/ Car Mini Camera

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:EXW

Payment Terms:T/T, Paypal

Trademark:BRVISION

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:MNC02&TM4301

Applicable Model:Car

Display Type:LCD Matrix

Interface:RCA

Shell Material:ABS Plastic

Chip:CMOS

Definition:420TVL

Screen Size:4.3 Inch

Display Format:480 X Rgbx 272 DOT

System:PAL/NTSC

Brightness:300CD/M2

Image Device:1/4inch CMOS Image Sensor

Export Markets:Global

Additional Info.

Trademark:BRVISION

Packing:Customerized Packaging

Standard:CE; FCC; E-mark

Origin:China

Product Description

Monitor:
Screen size: 4.3" digital TFT-LCD
Display format: 480 x RGBx 272 Dot
System: PAL/NTSC
One video input
Brightness: 300cd/m2
Operation temperatures: -20°~70°
Temperature range storage range -30-80°
Power consumption: 2W
Power requirement: DC 12V

Camera:

- Image Device: 1/4" CMOS image sensor
- TV System: NTSC/PAL
- View Angle: 170°
- Waterproof: IP68
- Vibration Rate: 10G
- Resolution: 420TV lines
- 1.8mm waterproof lens
- Effective Pixels: 510*496pixels
- Sensing Area: 5.961mm*4.276mm
- Minimum Illumination: 0-01Lux
- Video Output: 1-0vp-p, 75Ohm
- Gamma Consumption: 0-45
- White Balance: Auto
- S/N Ratio: Better than 48dB
- Electronic Shutter: 1/60S-1/5000S
- Power Supply: DC12V
- Operating Temperature: -20° to +70° (RH95%Max.)
- Storage Temperature (Deg.C): -30~+80°(RH95%MAX.)
