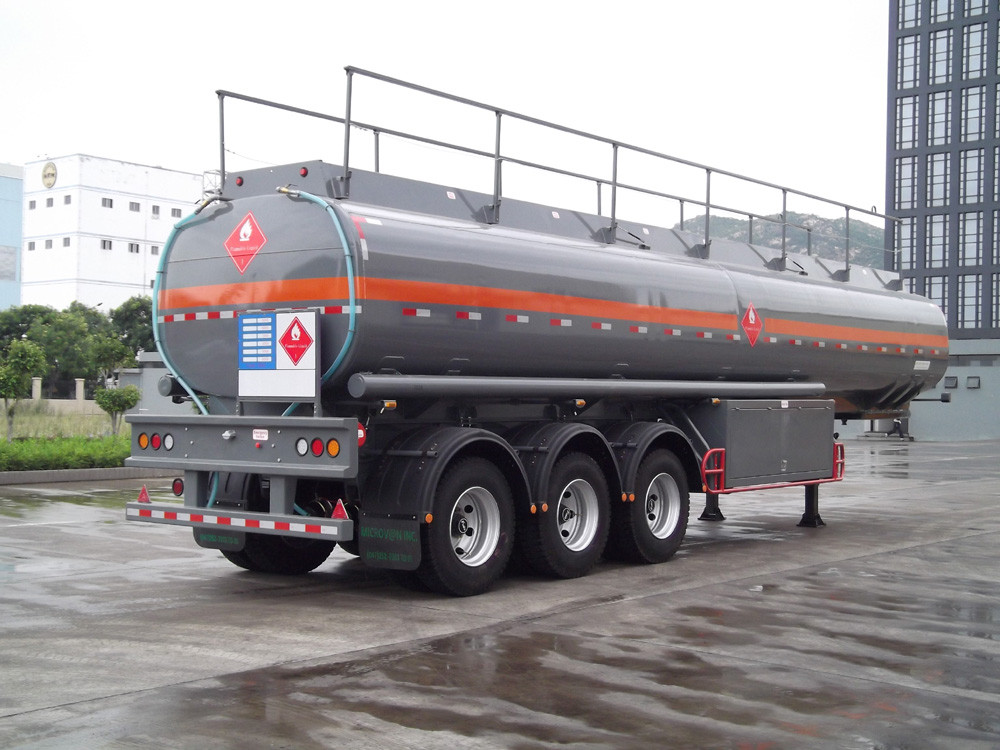

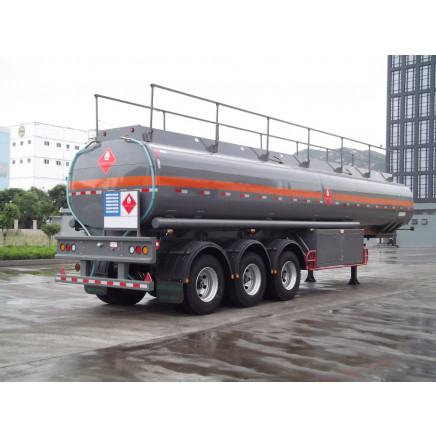

| Specification--45CBM 3axle oil tanker trailer |
| SPECIFICATION |
| Tare Weight | 12,500 Kgs |
|
| Dimension | Overall L x W x H | 12,000 x 2,500 x 3,750 mm |
| Wheelbase | 6,830+ 1,310 + 1,310 mm |
| TANKER BODY |
| Shape | OVAL |
| Medium | Petrochemical liquid |
| Chamber Nos | 4 chambers |
| Valid Volume | 45000L |
| Body Steel Material | Q345B / 5mm |
| End Plates | Q345B / 6mm, by punching |
| Resistant Wave Plates | Q345B / 3mm |
| Partition Chamber Plates | Q345B / 5mm |
| FITTINGS AND PIPING |
| Manhole | 4 sets YOJE aluminium alloy ø500mm(20") manhole with aluminium alloy cover; with 4units breather valve; without any Chinese |
| Discharge Valve | 4 sets YOJE DN80 aluminum alloy discharge valve with cover |
| Foot Valve | 4 sets pneumatic control YOJE DN80 aluminum alloy foot valves |
| Pipeline At Bottom of Tank | 1set Pneumatic Control combined switch |
| (4 compartments switch+master switch); |
| 1unit emergency switch |
| 3" steel tube/Q235 for each chamber |
| ACCESSORIES |
| Ladder | 1 unit at the rear of tank, flat steps, folding and detachable type |
| Walkway Platform | On the top of tanker; bolted, detachable type; with anti-slip painting and quartz sand |
| Guard on Top of Tank | 2 sets stainless steel side guard, one set link working with back ladder |
| Discharge Hose Box | 2 units, each side 1 unit, steel, cylinder tube with covers on both ends; with guide wheel |
| Discharge Hose | 2 units 3"×6M factory PVC hose with quick coupling on both ends |
| Fire Extinguisher Carrier | 2 units at the left of rear of tanker, include 2 units 4 kg dry powder type fire extinguisher inside |
| Anti-static System | Anti-static mop: 4 units in total; 2units put at the back of tanker; |
| the other 2units put at the beside of landing gear; |
| 1set flexible wire carrier; |
| 12pcs sheet copper |
| Oil Indicator | 4 units |
| Tire Stopper | 2 units with its holder |
| Dipstick | 1 units U-dipstick |
| CHASSIS |
| Main Beams | Heavy duty and extra durability designed; |
| Opting for high tensile steel Q345B, |
| welded by automatic Submerged-Arc processes. |
| Welded "I" beam; |
| Height: 380mm; Top Flange:16mm, width:140mm; |
| Middle Flange:8mm; Bottom Flange:16mm, width:140mm |
| Axle | 3 units of heavy duty WONDEE brand 13T axle |
| Landing Gear | Two speed manual operation WONDEE brand landing gear |
| King Pin | One unit 3.5" bolt-in kingpin |
| Suspension | 3 axle air suspension with first axle lifting |
| Wheel Rim & Tires | 12 units 9.00-22.5 wheel rims & 12 units 12R22.5 tires |
| Electrical Wire | One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; |
| two sets of reliable, local brand standard rear light, turn light, rear reflector, side light, side reflector etc. |
| One set 6-core standard Cable. |
| Pneumatic Braking System | One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; |
| two units T30 spring brake chamber; two units reliable WONDEE brand 45L air tank; |
| two units reliable local brand standard coppery air-connector. |
| Spare tire carrier | 1 unit |
| Bumper | 1set, at the end of tanker |
| Mudguard | Plastic type |
| Nameplate | As client's option |
| Warning Plate | Reflective sticker yellow, wide 5CM, on both side of the tanker; |
| Square reflective sticker 5CM, red color, at rear of tanker; |
| 2units triangle reflective; |
| 70km/h speed sign; |
| NO.3 flammable liquid danger warning sign |
| Tool Box | 1 unit |
| Shell finish - exterior | Sand blasting before painting; |
| two coats of primer, anti-corrosion; |
| two coat of finish painting; |
| color as customer's option, no interior painting |
