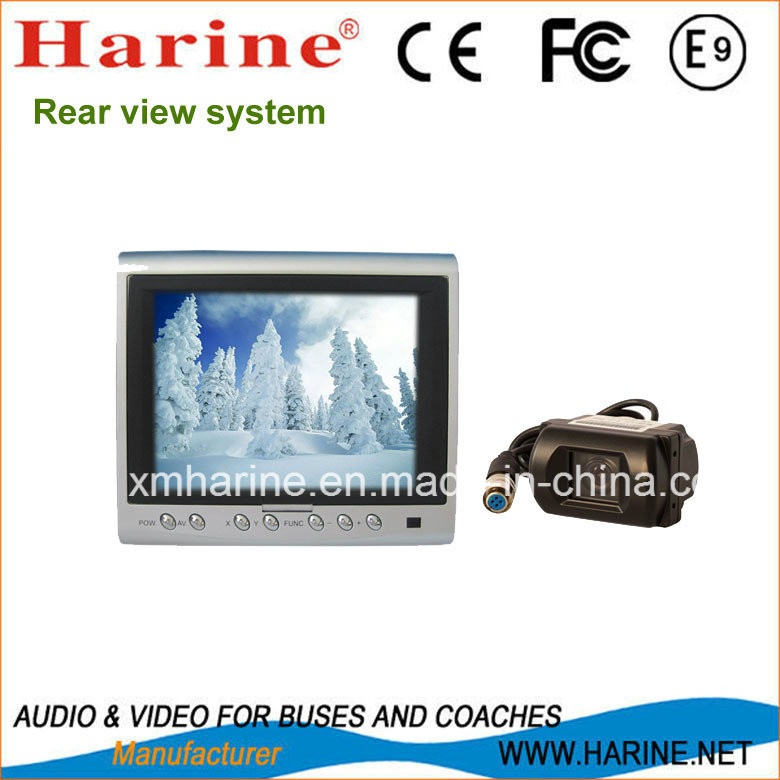

5.6 Inch Car Rear View Camera and Parking Sensor

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, EXW, CIF, DAT, DAP

Payment Terms:L/C, T/T, D/P, Western Union

Trademark:Xiamen Harine Electronics

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CS068A

Probe Number:2

Display Type:LCD Matrix

Function:Night Vision

Definition:420TVL

Alarming Distance:2.5-0.35m

Probe Diameter:18.8mm

Backlight:LED

Brightness:250CD/M2

Color Standard:PAL/NTSC Auto

Screen:TFT LCD Screen

Contrast:300:1

Video Input:1vp-P 75

Image Inversion:U/D L/R;Manual(Optional)

Power Supply:DC 12V

Product Dimension:155mm (L)�135mm (W)�29.5mm (H)

Power Consumption:Less Than 5 W

Export Markets:Global

Additional Info.

Trademark:Xiamen Harine Electronics

Packing:Carton Boxes

Standard:CS068A

Origin:China

HS Code:854370

Production Capacity:30, 000 PCS/Year

Product Description

Specifications
1.Plastic case, metal structure
2.Automatically switch to the rear-view camera when reversing

Technical information:

Item	Specification
Screen Size	5.6 inch
Screen	TFT LCD screen
Screen Ratio	4: 3
Resolution	960(H)�234(V)
Contrast	300:1
Brightness	250cd/ m2
View Angle	U:50/D:70 L/R:70/70
Light Source	LED
Color System	PAL/NTSC
Video Input	1VP-P 75? (two way)
Image Inversion	U/D L/R;manual(optional)
Interface	RCA, Aviation plug
Power Supply	DC 12V
Product Dimension	155mm (L)�135mm (W)�29.5mm (H)
Operating Temperature	-20~70
Storage Temperature	-30~85
Power Consumption	less than 5 W

Standard Fitting:
1.Bracket
2.Remote controller
3.DC24V to DC12V adapter
4. Cable
5.User manual

Description:
1.3-CH video input,can be switched by key-press
2.Automatically switch to the rear-view camera when reversing
3.Brightness, contrast and chroma can be adjusted by key-press
4.Wide range of power supply
5.Isolated power supply,hight anti-interference
6.Vehicle disturb shielding line and RS765-4plug for signal transmit

Our company information :

Founded in 2007 ,Xiamen Harine Electronics Co.,Ltd has become a professional designer and manufacturer of vehicular electronics products . Harine has passed the ISO9001- 2008 quality system certification and product certification and has been assessed as a national Hi-tech enterprise which specialized in design , production and sales of vehicular LCD&LED monitor , vehicular audio& video system, rear view system and so on .

With advantage of long-period experience in vehicular products, powerful R&D team, good team sense and efficient and effective production, Harine selles the products to all over the world and has been approved to be the first choice in the field.

Presently, our factory covers an area of 3.000 square meters, has about 200 employees and 50 million RMB turnover in 2012.

We firmly believe that quality comes the first. Most of our products has been CE, FCC, Certificated or E-mark approved.
