50 Ton XCMG Truck Crane (QY50K)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 100000/ Piece

Price:US $100000.0 / Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Apr 21, 2015 To Jul 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QY50K

Application:Construction Usage

Certification:ISO9001: 2000, CE

Condition:New

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark:XCMG

Packing:Nude

Standard:Domestic II

Origin:Jiangsu, China

Production Capacity:30 Sets

Product Description

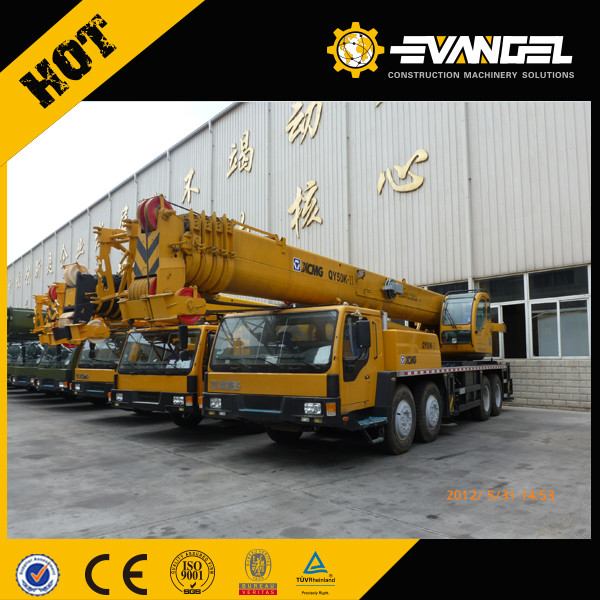

XCMG QY50K Truck Crane
1. Four axles
2. Hangzhou (247KW) EURO III, full coverage board
3.5-section U-shape main booms 41m and two jibs 15m, dual independent winch, Hirschman force limiter
4. Cooling and heating air conditioner and heat emitter and five outriggers
5. Full head cab, hydraulic pilot
6. Total dimension(mm): 13270*2750*3300
7. Max. Operation weight(Kg): 39870
The imported engine with original packing has strong power, and can meet the requirements of high-efficient work.
- Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic preheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart prevention system effectively avoids the misoperation, and improve the use security of the machine.

Dimension	Unit	QY50K
Overall length	mm	13050
Overall width	mm	2800
Overall height	mm	3430
Weight
Total weight in travel	kg	40400
Front axle load	kg	14500
Rear axle load	kg	25900
Power
Engine model		WD615.334(domestic II)
Engine rated power	kW/(r/min)	247/2200
Engine rated torque	N.m/(r/min)	1350/1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	24
Min. ground clearance	mm	285
Approach angle	°	16
Departure angle	°	11
Max. grade ability	%	46
Fuel consumption for 100km	L	42
Main performance
Max. rated total lifting capacity	t	50
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.482
Max. lifting torque	kN.m	1764
Base boom	m	10.7
Fully extended boom	m	41
Fully extended boom+ jib	m	56
Longitudinal outrigger span	m	5.65
Lateral outrigger span	m	6.6
Working speed
Boom luffing time	s	88
Boom full extension time	s	180
Max. swing speed	r/min	?2.0
Max. speed of main winch (single rope)	m/min	?110
Max. speed of aux. winch (single rope)	m/min	?110
