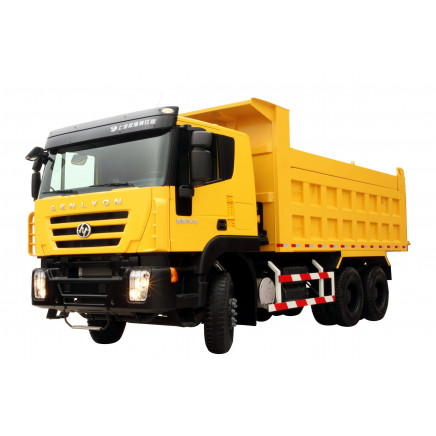

6X4 340HP Iveco Genlyon Dump Truck/ Tipper

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 30000.0-60000.0/

Price:$30000.0 - $60000.0 / Unit

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, D/P

Price Valid Time:From Jan 20, 2014 To Dec 15, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CQ3254HTG384

Transmission Type:Manual

Power:Diesel

Load Capacity:41-50t

Emission Standard:Euro III

Drive Wheel:6ط4

Engine Capacity:?8L

Seats:?5

Horsepower:251-350hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Middle Lift/Front Lift

Condition:New

Truck Type:Dump Truck

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:Saic-Iveco Hongyan

Packing:Nude Packing

Standard:Euro3

Origin:China

HS Code:8704230090

Production Capacity:50000 Units/Year

Product Description

Saic-Iveco Hongyan Genlyon dumper truck:

1. Adopt Italian advanced techonology;
2. Flexible sales system, competitive price;
3. Excellent quality, best after services and mature spare parts system.

If you have interest in this model, pls feel free to send inquiry, and we will always be glad to quote.

NO.	SPECIFICATION	PARAMETER
1	Model	CQ3254HTG384
2	Cab	Genlyon Flat-roof Cab, Left Hand Drive, with AC
3	Drive	6ط4
4	Rated Payload(kg)	12,780
5	Kerb Weight(kg)	12,090
6	Gross Vehicle Weight(kg)	25,000
7	Overall Dimension(mm)	8,516ط2,500ط3,510(LWH)
8	Dump Box Dimension(mm)	5,600ط2,300ط1,250(LWH)
9	Dump Box Volume (m 3 )	16
10	Thickness of Track Bed	Bottom 8mm,side 6mm
11	Lifting Cylinder	middle lift/front lift
12	Max Speed(km/h)	85
13	Wheelbase(mm)	3,775+1,400
14	Engine	C9 340
15	Engine Output(HP)	340
16	Gearbox	12JSD180T/12JS160T/RT-11509C
17	Steering gear	Germany Technology ZF steering gear
18	Frame	outside width 865mm, longeron cross section 317x(8+8)mm
19	Front Axle	Iron Cast I-Shaped Axle, Capacity: 7,000 kg
20	Driving axle	Full floating, double reduction with differential Steyr cast steel driving axle, Capacity:18,000 kg
21	Tyre	12.00R20
22	Oil Tank	350L
