6X4 HOWO tractor truck 371HP RHD/LHD

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 30000.0-40000.0/ Piece

Price:$30000.0 - $40000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Sep 28, 2014 To Dec 28, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description
Additional Information
Reviews

Description

Details

Basic Info.

Model NO.:ZZ

Type:Transport

Usage:Transport

Certification:ISO/TS16949

Drive Wheel:4WD

Emission Standard:Euro II

Fuel:Gas / Diesel

Condition:New

Cabin:76 cabin with a bed and air condition

Drive:RHD/LHD

Engine:371HP

Export Markets:Global

Additional Info.

Trademark:HOWO

Packing:Nude

Standard:6*4

Origin:China

Production Capacity:1000

Product Description

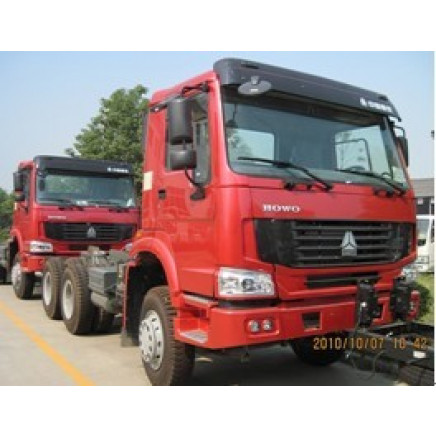

SINOTRUK 6X4 HOWO tractor truck

Cabin Driving type 6x4 RHD/LHD
HOWO 76 standard cab, with A/C and one bed, 70° Hydraulically tillable to the front as attached photo for ref.
Vehicle Main DimensionsOverall dimensions (L x W x H)mm 6800x2496x2958
Wheel base (mm) 3200+1400
Wheel track (front/rear) (mm) 2022/1830
Approach/Departure angle(° ) 16/20
Weight in KGSTare Weight 9210
Hauling Capacity 50000
Front axles loading capacityHF7 1x7000
Rear axles loading capacityST16 double reduction 2x16000
Max. Driving speed(km/h) 102
Engine Brand Sinotruk
Model WD615.47
Type4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 371@2200 rpm
Emission standard Euro II
GearboxHW19710, 10-speed Forward & 2 reverse gear
Clutch Reinforced diaphragm clutch, diameter 430mm
Steering Gear ZF 8098, power steering, hydraulic steering with power assistance
Fuel tank (L) 400
Tire 315/80R22.5 tubeless tyre with one spare
Brakes Service brake: Dual circuit compressed air brake
Parking brake: (emergency brake): Spring energy, compressed air operating on rear wheels
Auxiliary brake: Engine exhaust valve brake

Vehicle Description
Vehicle Model	ZZ4257N3247C
GVW (kg)	25000		Mass in working order (kg)	9210
Max speed (Km/h)	102
Chassis Description
Cab	HW79 high-roof cab, double bed
Allowable Passengers In Cab	2/3		Air conditioner	Equipped
Wheel base(mm)	3200+1400		Number of axles	3
F/R track base(mm)	2041,1830/1830		F/R overhang(mm)	1500/700
Approach/Departure angle( ° )	16/70		Spring plate	9/12,4/12,3/12,3/-,3/5
F/R axle-load	HC7/HC1667		Type of fuel	Diesel
Tire specification	12.00-20		Tire quantity	10+1
Traction system	6*4		Operation control system	Power steering
Transmission	HW19712		Electric system	24V
Engine Description
Engine model	WD615.47	Emission standard			EURO 2
Exhaust/output	9726/276	Horse power			375
Engine Manufacturer	China SINOTRUK WEICHAI ENGINE
Equipment
Standard equipment	Equipped with ABS Equipped with fuel tanker of 600L
Optional equipment	Flat-roof cab with one bed is optional Radial tires are optional Color is optional
Production cycle	20 days
