1. Quick Details of the 6X4 LHD Dump Truck:(1) The dump truck are mainly used for sand, rocks, and gravel transportation.(2) Gross weight: 25000kg(3) Overall Dimension: 8240в 2500в 3350mm (4) Max Loading Weight: 30000kg(5) Drive Mode: LHD/RHD, Diesel EngineWe can offer 4x2, 6x4, 8x4, Dongfeng, Sinotruck, FOTON, SHACAN, FAW, CAMC, ISUZU, JMC, dump trucks.

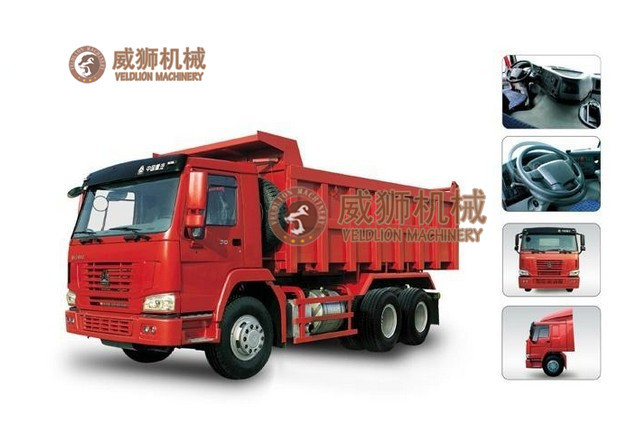

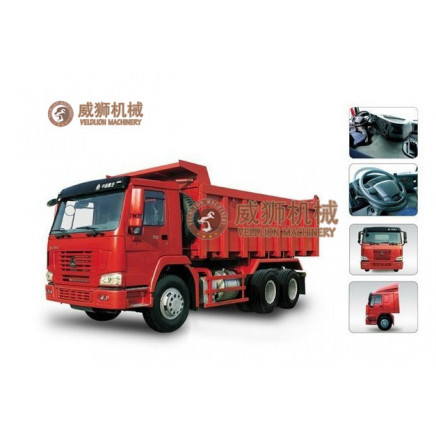

More photos for your reference:
2. Company introduce
HUBEI VELDLION MACHINERY CO., Ltd is an authorized dump truck manufacturer. We are specialized in the production of a variety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Our Service:
(1) Over 400 workers include our sales and engineers will offer you the best design, price and quality;
(2) Pefect after-sales service, offer long days quality guarantee.
(3) within 7-24 hours feedback.
3. Contact us
Atten: Ms Julia He
Mobile: 0086-15927026165
www.veldlion.com
4. Parameters datasheet
| Product | Dump truck |
| Model | ZZ3257M4147C |
| Chassis Model /Manufacturer | ZZ3257M4147C/ Sinotruk HOWO |
| Overall Dimension | Lengthв Widthв Height | 8240в 2500в 3350 mm |
| Box size | Lengthв Widthв Height | 5600*2300*1100 mm |
| Total Mass | 25000Kg |
| Max Payload | 30000 Kg |
| Kerb Weight | 12480Kg |
| The parameters of chassis |
| Chassis Model /Manufacturer | ZZ3257M4147C/ Sinotruk HOWO |
| driving type | 6*4(Left hand driver) |
| Cab type | single row |
| Engine | Manufacturer : | China National Heavy Duty Truck Group Company Limited |
| Model | WD615.97E |
| Rated Power | 266HP |
| Maximum power | 195(KW) |
| Displacement | 9726ML |
| Fuel type | Diesel oil |
| Type | Straight six-cylinder, intercooling,
Internal EGR |
| Wheel base | 3625+1350mm |
| Front axle | 7T front axle |
| Rear axle | Double 18T rear axle |
| Front/Rear wheel tread | 2022/1830mm |
| The number of leaf spring | 10/12 |
| Tyre | 11.00-20R |
| The number of tyre | 10+1(spare tyre) |
| A/C Air Conditioning | With Air-Condition |
| Max Speed | 75Km/h |
| The parameters of box |
| Box size | 5600*2300*1100 mm |
| Material of Box | Q235B quality carbon steel |
| Floor/edge thickness | 8mm/6mm (optional) |
| Color of the Box | According to your documents |
