9500lbs Super Truck Winch with Synthetic Rope

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
30.0	US $ 320/ Piece

Price:US $320.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, Paypal, Western Union

Price Valid Time:From Apr 07, 2015 To Jul 07, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:E9500S

Type:Electric Winch

Power Type:Series Motor DC

Pull Direction:Forward

Electric Winch Model:off-Road Winch

Working Voltage of Electric Winch:Low Voltage

Brand:Zhme

Applicable Environment:Mountain Road

Certification:GS, CE

Name:Electric Winch

Rated Pull:9500lbs Winch

Motor:Winch Motor 6.0HP/4.4kw

Gear:Winch 3-Stage Planetary Gear 212:1

Brake:Winch Automatic Brake

Rope:Winch Synthetic Rope 9.5mmx26m

Certificate:CE, SGS

Waterproof:IP68

N.W.:39kgs/Winch

MOQ:30 Winches

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Color Box

Standard:CE, SGS, ISO9001: 2008

Origin:Zhejiang, Ningbo

HS Code:84253190

Production Capacity:10000 Winch Per Month

Product Description

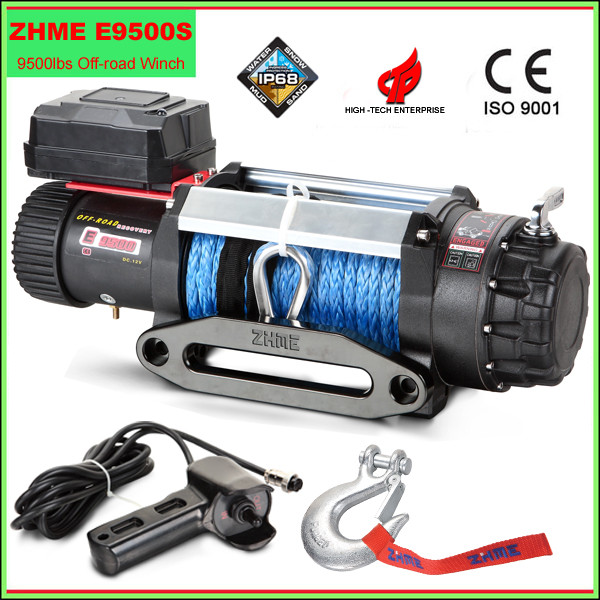

9500lbs super truck winch with synthetic rope

Character:
Water proof IP68.
Luxurious appearance.
Super performance.
Fast pulling speed.
Large touque.
Low noise.
Safety working.

Specifications
Rated Line Pull	9500lbs(4310kgs) single line
Motor	Series wound 6.0hp/4.4kw, 12V DC
Gear Train	3 stage planetary gear
Gear Ratio	212:1
Braking Action	Automatic in the drum
Fairlead	Aluminum hawse fairlead
Rope	Synthetic rope: ?9.5mm X26m
Drum size	63mm x 224mm
Dimensions	552mm x 170mm x 214mm
Mounting Bolt Pattern	254mm×114.3mm
N.W.	86lbs(39kgs)
