Aerial Work Platform Alluminum Alloy Lift Table

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 2000.0-60000.0/ Piece

Price:$2000.0 - $60000.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Apr 10, 2015 To May 02, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SJYL

Type:Lifting Platform

Application:Construction Usage

Tower Crane Type:None

Sling Type:Chain

Main Girder Form:Double Girder

Power Source:Hydraulic

Moving Type:Wheel

Installation:Assembled

Certification:CE

Condition:New

Loading Capacity:100-200kg

Lifting Height:4m-20m

Power:2.2kw

Speed:5m/Min

Export Markets:Global

Additional Info.

Trademark:Moral

Packing:Standard Export Packing

Standard:CE

Origin:Jinan, Shangdong, China

HS Code:842890

Production Capacity:50, 000 PCS/Year

Product Description

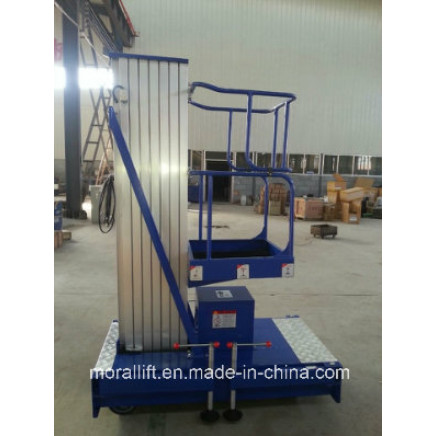

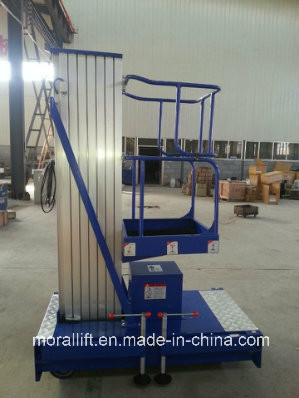

Aerial Work Platform Alluminum Alloy Lift Table

Aluminum alloy hydraulic lift table: It is a new-era product through brand-new design, adopts new aluminum molding material. The lift table has tiny swing, because of high-strength molding material. Handy and light appearance makes it freely exert maximum lifting ability in limited room. As a result, this product makes it easy to carry out high-altitude working by one person. The power sources could be 220V/380V or chargeable battery.

Introduction:

1. This lift's working height: 6m, 8m, 10m, 12m, 14m, 16m, 18m, 20m; Can be controlled on the table or on the ground by remoter control.

2. The lift platform, high-duty aluminum alloy structure is suitable for aloft work. It is equipped with security rope and safety protection devices. Even if working at the 30 meter high, it's very safe and reliable. Our wheels can be moved easily.

3. It can be in and out of the elevators conveniently when equipped with belt control switch or remote control switch systems.

4. This kind of platforms has 2 types, one is equipped with single ladder and the other has double ladders on both sides. The biggest lifting height is 30 meters, the lifting capacity ranges from 100kg to200kg.

Advantage:

Mobile Aluminum Lifts with high-strength aluminum alloy high-quality aluminum alloy, beautiful in appearance, small size, light weight, lifting balance, safe and reliable, no pollution and can operate from up to down, smooth lifting, Operate conveniently in narrow space, Work efficient and balance well.

They are widely used in factories, Star Hotels, restaurants, railway stations, airports theaters, exhibition halls and other places, It's the best security partner together with maintenance of equipment, paint renovation, replacement lamps, electrical appliances, cleaning and maintenance and other usesages.

Type	Capacity(kg)	Table size(mm)	lifting height(mm)	Working height(mm)	Weight(kg)
SJYL0.2-8	200	1470*800	8000	9850	500
SJYL0.2-10	200	1470*800	10000	11500	520
SJYL0.2-12	200	1470*800	12000	13500	530
SJYL0.2-14	200	1470*800	14000	15500	550
SJYL0.2-16	200	1470*800	16000	17500	570
