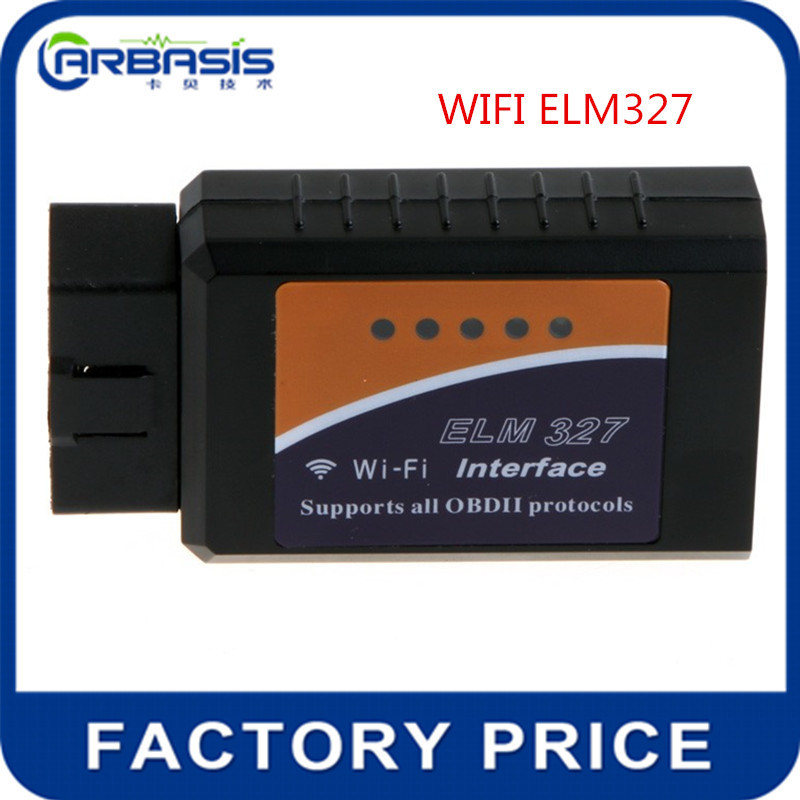

Auto Scanner WiFi Elm327 Wireless OBD2 Elm327

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB

Payment Terms:T/T, Western Union, Paypal

Trademark:OEM

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ELM327 V2.1

Testing Equipment Type:Car Fault Detector

Diagnostic Tool Type:Engine Fault Diagnostic

Certification:CE

Update Method:by Hard Disk

Condition:New

Standard:Standard

Power:W

Voltage:V

Version:V2.1

Place of Origin:Guangdong China (Mainland)

Export Markets:Global

Additional Info.

Trademark:OEM

Packing:Standard Packing

Standard:CE

Origin:Guangdong(Mainland China)

Production Capacity:5000 Sets/Month

Product Description

Auto Scanner WiFi Elm327 Wireless OBD2 ELM327

WiFi ELM327 Wireless OBD2 Auto Scanner Adapter Scan Tool for iPhone iPad iPod

WiFi ELM327 Wireless OBD2 Auto Scanner Adapter Scan Tool for iPhone iPad iPod

WiFi ELM327 Wireless OBD2 Auto Scanner Software Free Download
Specifications:

SSID: CLKDevices
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
WiFi Standard: 802.11A/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Physical Dimensions: 2.75 X 1.25 X 1.2 inches
Features:

CLK is capable of communicating with vehicles which adopt following protocols:
ISO 9141
ISO 11898(aka. CAN)
ISO 14230(aka. KWP2000)
ISO 15765(aka. CAN)
SAE J1939
WI-FI OBD AUTO CHECKER is able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with WI-FI OBD AUTO CHECKER. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained.
WI-FI OBD AUTO CHECKER is measuring only 2.7 X 1.25X 0.9 inches. It comes included with a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles. Connecting to your iPhone / iPod touch /iPad is made by WiFi connection in adHoc mode.
Elder OBD compatible vehicles has a sticker indicates that the vehicle is OBD compatible. Model year 1996 and newer vehicles are compliant by default, and will not have this sticker.
Following are Some of The Parameters Which Could be Read From the Vehicle:
Vehicle Speed
RPM
Fuel Consumption*
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim
Package List:

1 X ELM327 WiFi Wireless OBD2 Interface
1 X Software CD
