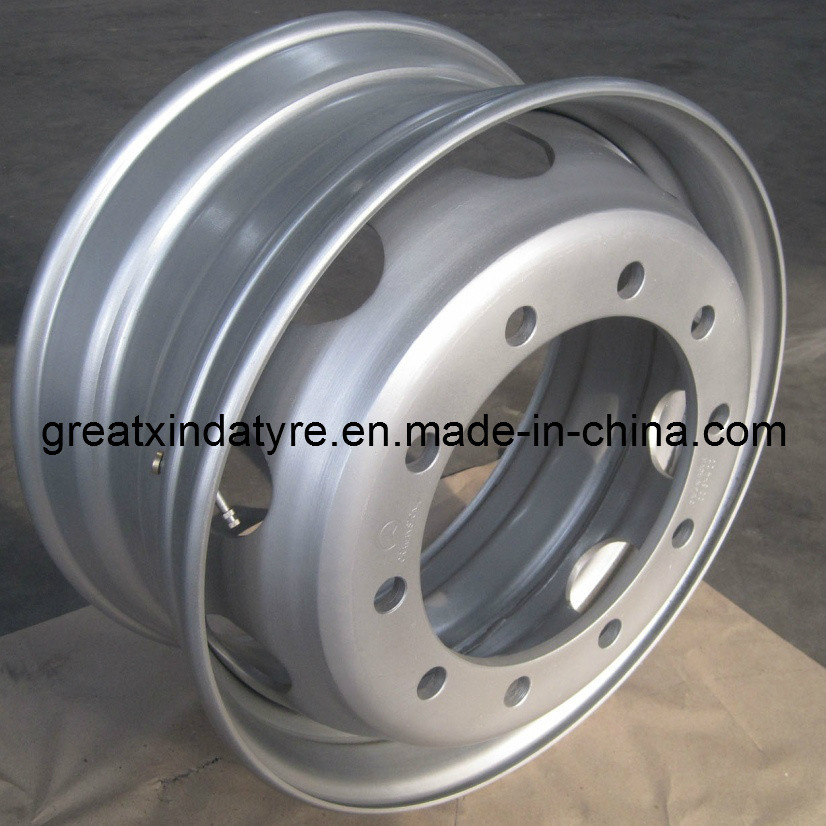

Auto Wheel, Truck Wheel, Steel Wheel (22.5X9.00)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 x20

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T, Paypal

Packing:Plastic Paper or Nude

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:22.5X9.00

Material:Steel

Type:Wheel Hub

Drive Wheel:4WD

Wheel Hub Diameter:21-24"

Finishing:Cathodc Electrodephoretic Coating

Wheel Accessories:Wheel Spoke

Certification:ISO, CE, TUV, DOT

Certificate:ISO, Ts16949, SGS, Inmetro, Soncap

Color:Siliver, White, Grey

Export Markets:Global

Additional Info.

Packing:Plastic Paper or Nude

Standard:22.5x9.00

Origin:Shandong, China

HS Code:870870

Production Capacity:1, 000, 000PCS/Year

Product Description

Auto wheel, Truck wheel, Steel wheel

Quality Certificate: ISO, TS16949, SGS, INMETRO, SONCAP

Features:
1. Rims, spoke wheels with high-strength special ateel. Bearing capacity, impact resistance, no deformation.
2. Spinning mavhines imported from Germany, high precision, spoke uniform thickness, excellent dynamic balance.
3. Using the world's most advanced submerged arc welding process, welding uniform, soild, beautiful.
4. Wheel rim welding using the qorld's popular flash butt welding techniques, weld trace, does not leak.
5. Cathodic electrophoretic paint process to prevent the wheels rust: Plus finish, beautiful appearance.
6. The unique design of the large arc rim to protect the tires toe mouth, not born out.
7. Both the scientific design of the wide hole to ensure good heat dissipation of the wheels, spokes and ensures high strength.

Tubeless Steel Wheel avaliable sizes:
11.75X22.5 9.75X22.5 9.00X22.5 8.25X24.5 8.25X22.5 7.50X22.5 6.75X22.5 6.00X22.5 7.50X19.5 6.75X19.5
6.75X17.5 6.00X17.5 5.25X17.5
Tube Steel Wheel avaliable sizes:
8.5-24 8.5-20 8.0-20 6.5-20 7.5-20 7.0-20 6.0-16 5.5-16 6.5-16

Good quality, good price, good service.

No.	No. of Bolt Holes	Bolt Hole DIA.	Bolt Hole Type	P.C.D.	C.B.D.	Offset	Tyre Size
1	8	32.5	SR22	275	214	175	12/13 R 22.5 215/75 R 22.5 285/60 R 22.5 295/60 R 22.5 295/80 R 22.5 305/60 R 22.5 305/70 R 22.5 315/60/70R22.5 315/75/80R22.5
2	8	32.5	SR22	285	221	175
3	8	26	1X45°	275	221	175
4	8	21.5	SR16	275	221	175
5	10	26	1X45°	285.75	220	175
6	10	32.5	SR22	285.75	221	175
7	10	27	SR18	335	281	175
8	10	26	1X45°	335	281	175
