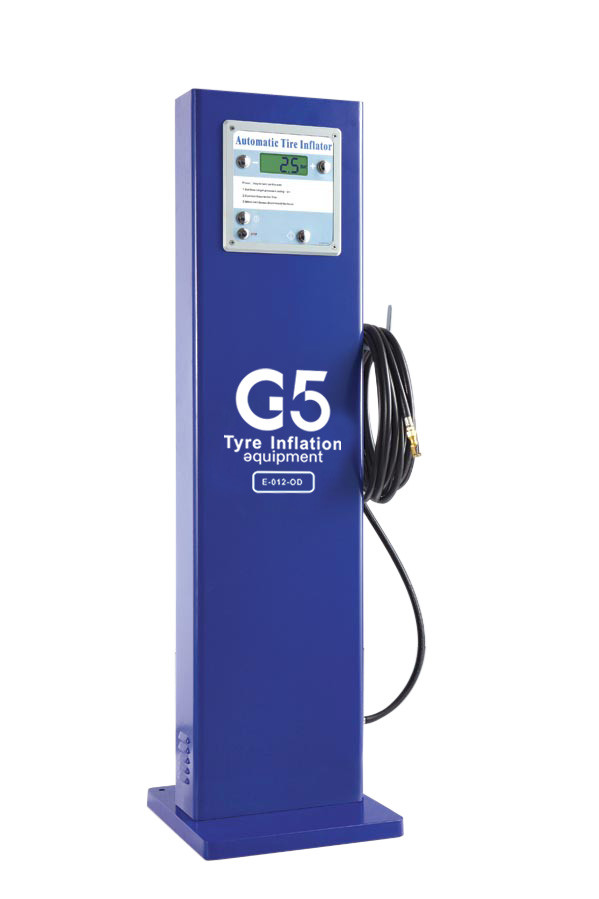

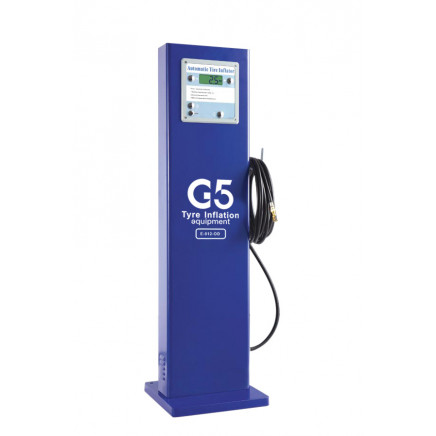

Automatic Air Inflator (E-012-OD)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, CFR, CIF

Payment Terms:T/T, Western Union

Trademark:G5

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:E-012-OD

Color:Blue

Type:Tyre Inflator

Export Markets:Global

Additional Info.

Trademark:G5

Packing:Carton

Standard:CE

HS Code:84148090

Product Description

E-012-OD Technical Data Summary
Dimensions (Height*Width*Depth)

1260mm*360mm*360mm
49.6''*14.2''*14.2''
Net Weight

17.5kg/38.6lbs
Gross Weight

21kg/44.6lbs
Packing Size(height*Width*Depth)

200mm*1290mm*400mm
7.9''*50.8''*15.7''
Power Requirement

100-240VAC 50 / 60Hz
Power Consumption

23VA
Operating Temperature Range

-20/-4° F to 70 / 158° F
Max Inlet Air/Nitrogen Supply

217PSI / 15bar / 1500kPa
Operating Range

5-174PSI/0.3-12bar/35-1200kPa
Over Pressure Setting Range

0-29PSI/0-2.0bar/0-200kPa
Accuracy

ą 1PSI/0.07bar/7kPa
Resolution

1PSI/0.1bar/5kPa
Units of Measurement

PSI/bar/kPa
Specifications
1. Auto-Start inflation
2. Automatic zero drift adjustment
3. Remain at last setting
4. Comprehensive diagnostics and error reporting
5. Audible and visual end of the cycle signal indicators
6. Large backlight LCD display
7. Vandal resistant mechanical switches
8. Suits Standard nitrogen bottle/Direct nitrogen supply from generator/Air compressor
9. 1 No. *10M/32.8ft standard hose with single clip-on open type chuck
Operation Steps
1. Set final target pressure using the + and - buttons. The LCD screen will show the target pressure.
2. Connect air hose to tyre valve stem.
3. When unit "beeps" and the LCD screen flashes the target pressure, tyre inflation is complete.
4. If tyre has zero pressure, and when using the OPS function, the "FILL" button must be pressed to commence inflation.
