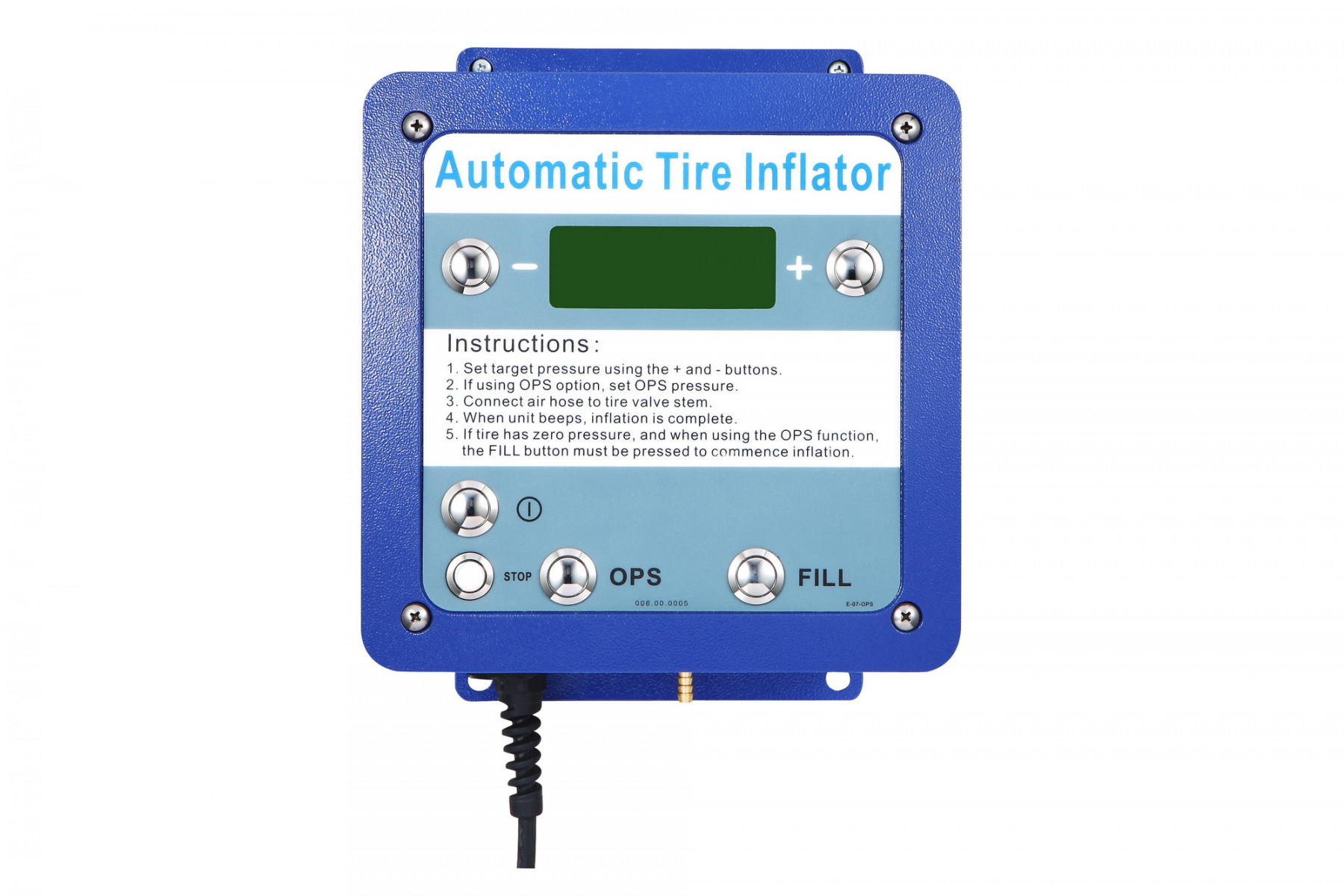

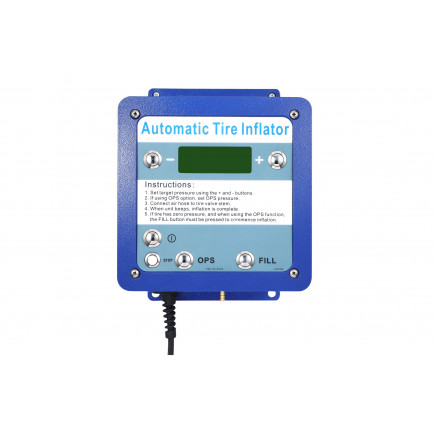

Automatic Tire Inflator (E-07-OPS-m)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, CFR, CIF

Payment Terms:T/T

Trademark:G5

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:E-07-OPS-m

Export Markets:North America, South America, Eastern Europe, Oceania, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark:G5

Packing:Carton

Standard:CE

HS Code:84148090

Production Capacity:800PCS/Month

Product Description

Main Features:
Over Pressure Setting(OPS)
Auto-Start Inflation
102PSI/7bar/700kPa

Technical Data Summary
Dimensions(Height*Width*Depth) 290mm*230mm*120mm
11.4"*9.1"*4.7"
Net Weight 4kg/8.8lbs
Gross Weight 6.5kg/14.3lbs
Packing Size(height*Width*Depth) 170mm*500mm*290mm
6.7"*19.7"*11.4"
Power Requirement 100-240VAC 50 / 60Hz
Power Consumption 10VA
Max Inlet Air/Nitrogen Supply 145PSI / 10bar / 1000kPa
Operating Range 5-102PSI/0.3-7bar/35-700kPa
Over Pressure Setting Range 0-29PSI/0-2.0bar/0-200kPa
Accuracy +/- 1PSI/0.07bar/7kPa
Resolution 1PSI/0.1bar/5kPa
Units of Measurement PSI/bar/kPa

Specifications:
1. Adjustable over pressure setting(OPS)
2. Auto-Start inflation
3. Automatic zero drift adjustment
4. Remain at last setting
5. Comprehensive diagnostics and error reporting
6. Audible and visual end of the cycle signal indicators
7. Large backlight LCD display
8. Vandal resistant mechanical switches
9. Suits Standard nitrogen bottle/Direct nitrogen supply from generator/Air compressor
10.1 Nos. *10M/32.8ft standard hose with single clip-on open type chuck
11.1400mm/55.1" grey mounting steel stand base which is Supplied separately
