Beiben Truck (North Benz) 420HP Tractor Head/Trailer Truck with Mercede Benz Technology

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

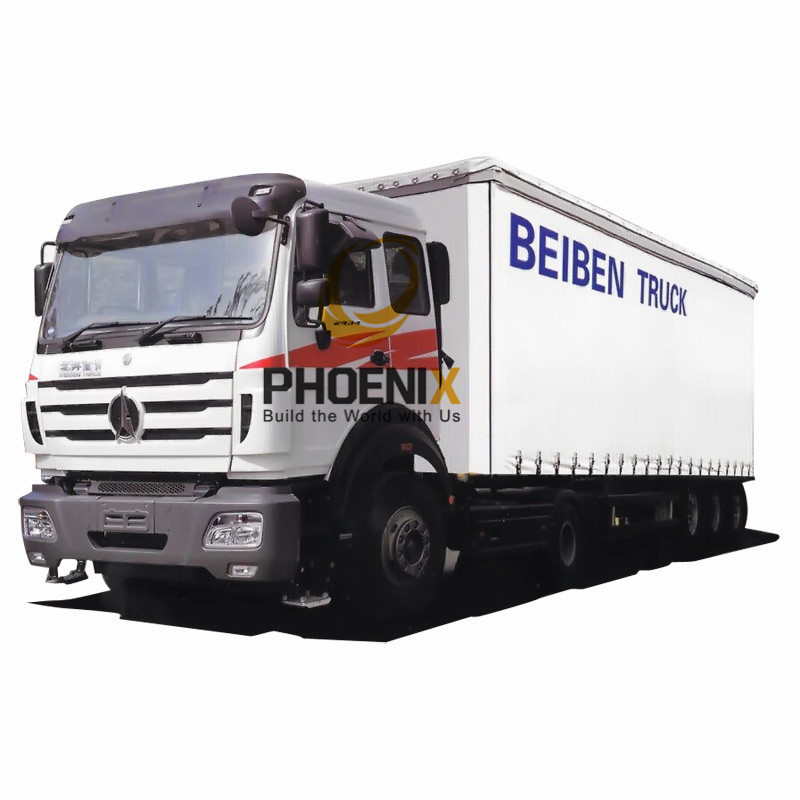

Beiben Truck (North Benz) 420HP Tractor Head/Trailer Truck with Mercede Benz Technology

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$32000.0 - $38000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 38000/ Piece
10.0	US $ 32000/ Piece

Trade Terms: FOB, CFR, EXW, CIF

Payment Terms: L/C, T/T, Western Union, Money Gram

Price Valid Time:From Mar 16, 2015 To Dec 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:NG80

Transmission Type:Manual

Power:Diesel

Load Capacity:?50t

Emission Standard:Euro 3

Drive Wheel:6×4

Seats:?5

Horsepower:351-450hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Certification:ECE

Tire Design:Tubeless

Condition:New

Advantage:Mercedes Benz Technology, Mercedes Benz Axle

Engine:Weichai, Wd12.42, 420HP, Mechanical Injectors

Wheel Base:3450+1450

Export Markets:Global

Additional Info.

Trademark:BEIBEN/NORTH BENZ

Packing:Nude Packing

Standard:ISO9001

Origin:China Mainland

HS Code:870120000

Production Capacity:10, 000units/Year

Product Description

BEIBEN TRUCK NG80 Cabin Tractor Truck 6x4
Mercedes Benz Technology
Mercedes Benz Axles
Mercedes Benz NG80 Cabin

Driving type: LHD (RHD is option)
Engine: Weichai, WD615, WD12
Engine HP: 280HP-440HP Euro II

Beiben Truck (North Benz) 420HP Tractor Head/Trailer Truck with Mercede Benz Technology

Overall Dimension ( LWH ) (mm)				7140×2500×3200
Wheel base (mm)				3450+1450
Curb weight ( kg )				8800
Max Speed :( km/h )				?90
Engine	Model			WD12.420, 420HP water-cooled,four strokes,6 cylinders straight in line,turbocharged
	Fuel type			Diesel
	Min rate of consuming fuel ( g/(kw.h) )			308kw.h
	Rated Power / rotaing ( hp/(r/min)			420hp /2200rpm
	Emission			EUROII
	Displacement ( ml )			12
Fuel tanker capacity ( L )				400L fuel tank
Clutch		Model		430, Single dry frictional disc,Hydraulic boosting
Gearbox		Model		12JS200T mechanical type,Based on Fuller Eaton technology ,12 Forward speed gear.
Brake system		Service brake		Brake gap can be adjusted automatically, double circulation air brake system
		Assistant brake		Engine exhaust brake,With ABS system
		Park brake		Potential springs pressing on middle and rear wheels
Steering system		Model		TAS85
Suspension System		Rear Suspension		Non-free standing stabilization spring,stabilization suspension,
Frame		Fish belly shape, variable width, variable sections Based on Germany Benz Technology
Front axle (Mercedes Benz Technology)		Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Benz Technology)		HEAVY DUTY TYPE for Mongolia market. Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tire		315/80R22.5 tubeless tyre
Qty of tire		11
Electrical system		Battery	2X12V/135Ah
		Generator	28V-35A
		Starter	5.4Kw/24V
Cab		With one sleeper (NG80 Benz Cabin) Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly;
		Interior trimming: high back seat for driver, one sleepers, standard sleeper box, heating and air conditioning, high roof box, electric glass riser, standard steering wheel, 24V power, radio (with MP3 ), digital instrument, manual adjustment of headlamps, with central clock.
Fifth wheel		#50 JOST single direction
