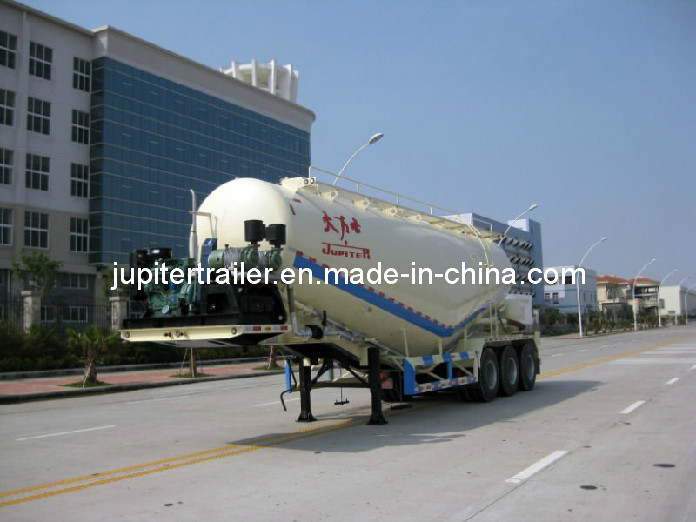

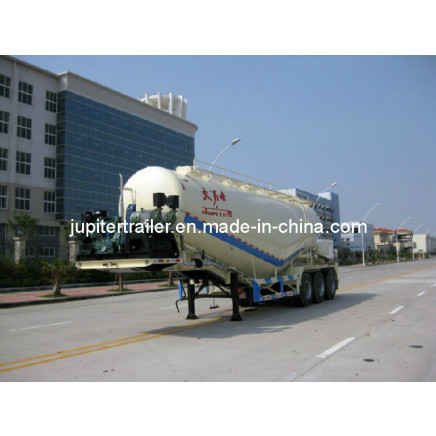

Bulk Cement Tank Semi Trailer (FTW9400GSN)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 28500/ Piece

Price:US $28500.0 / Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 03, 2015 To Jun 03, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:FTW9400GSN

Type:Axle

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:Cross Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Export Markets:North America, South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:JUPITER

Packing:Nake

Standard:10700*2500*3940mm

Origin:Xiamen, China (Mainland)

Production Capacity:100PCS/Month

Product Description

SPECIFICATION OF THE BULK CEMENT TANKER

Type: Air Discharge Tanker For Carrying Cement

MODEL: FTW9400GSN

Overall Length: 10700 mm

Overall Width: 2500mm

Overall Height: 3940 mm

TANK:

Loading Capacity: 28.5t(33M3)

Compartment: 1

Tank shell: Q235, 6mm thickness, and Q345 4mm

Dished ends: Q235, 6mm thickness

Pipe material: Carbon steel

Discharging Hose Diameter: 4"

Discharging valve 4" butterfly valve

Discharging Hose Length: 6, 000 mm

Discharging capacity: 1.2tonm3/min

Working pressure: 0.2 Mpa

Test pressure: 0.3 Mpa

Manhole: THREE, 500MM.

RUNNING GEAR:

Suspension: Undermount tri-axle suspension with equalizer;

9-Leaf Spring.

Axle: 16ton axle, axle brand: FUWA, L1, BPW

Brake: Dual line pneumatic brake system.

Parking Brake: Type 30/30 spring brake system on two axles.

Wheel: Client's wish

Tire: Client's wish

King Pin: 3'' JOST Assembly STYLE.

LANDING LEG: JOST or FUWA Two speed manual operation type with sand shoe.

PNEUMATIC SYSTEM:

Electromotor: 495 Made in China, (34Kw, 2000r/Min)

Air Compressor: 7m3/min Made in China,

Mounted at the front of trailer,

Disxharge side: Left side or right side.

ELECTRICAL:

Voltage: 24 Volt.

Receptacle: 7 wayLight: Front Marker Lamp: White

STRUCTURAL WEIGHT RATING:

Tare Weight: 11, 300 Kg

Pay Load: 28, 500Kg.

G. V. W. R.: 39, 800Kg.

Any questions will be appreciated and welcome to place the order with your own design.
