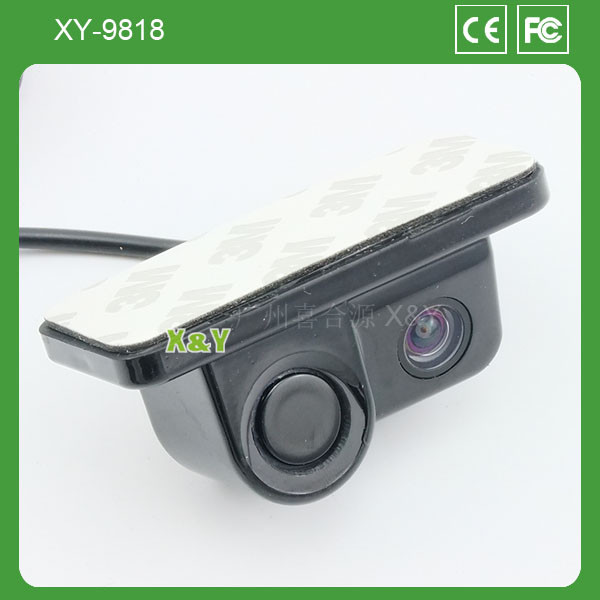

Car Visible Parking Sensor with Rear View Camera Xy-9818A

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Car Visible Parking Sensor with Rear View Camera Xy-9818A

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$14.5 - $15.5 / Piece

Min. Order (Pieces)	Unit Price
10.0	US $ 15.5/ Piece
100.0	US $ 15/ Piece
200.0	US $ 14.5/ Piece

Trade Terms: FOB, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Jul 30, 2015 To Aug 26, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:XY-9818A

Kind:Obstacle Detection Radar

Certification:CE, FCC

Working Principle:Frequency Modulated Continuous Wave

Operating Temperature Range:-20°C~+80°C

Detecting Distance:0.3 ~ 2.0m

Buzzer Alarm:Support

Human Voice:Optional

Beep Volume:More Than 48dB

TV System:NTSC

Resolution:480 TV Lines

Night Vison:Support

Working Voltage:12V DC

Working Temperature:-20oc ~ +65oc

Ultrasonic Frequency:40kHz

Export Markets:Global

Additional Info.

Trademark:X&Y OEM

Packing:50PCS/Carton

Standard:CE FCC

Origin:Guang Dong Guang Zhou

HS Code:8525801390

Production Capacity:5000set/Month

Product Description

Integrated car rear view camera with visible parking sensor and buzzer XY-9818A

We are the professional car camera system supplier with 9 years experience,and have offered excellent OEM ODM service to world wide famous brands.

Please send your details request for cameras (image sensor model,lens angle,mirror/normal image,with/without parking line,connector type,wire length,wireless video transfer,with dynamic parking line,with distance sensor,Front/Rear Speically OEM stype camera...)

And then we could offer you the best solutions.

Features:
1. The Integrated system consists of parking radar(ultrasonic sensors),
Night vision rear view camera and buzzer.
2. Automatically trigger to display rear (image) view when reversing gear is engaged. Showing the exact distance on the
Monitor from 0.3 meter to 1.5meters at the same time with buzzer warning.
Help reverse parking much more safely.

Specifications of parking sensor
Working Voltage: 12V DC± 20%
Current Consumption: 20mAh ~ 60mAh
Sensor Installation Height: 45 ~ 60cm
Detecting Distance: 0.3 ~ 2.0m
Ultrasonic Frequency: 40kHz
Working Temperature: -20oC ~ +65oC
Beep Volume: More than 48dB

Specifications of camera
TV System: NTSC
Image Sensor: 1/4" Color CMOS
Effective Pixels: 628*582
Resolution: 480 TV Lines
Working Voltage: 12V DC± 20%
Current consumption: 80mA
Min. Illumination: 0.02lux
Lens Angle: 170 degree
Video Output: 1.0Vp-p/75 ohms

Image Sensor 1/4 " CMOS

NSTC/TV System NTSC/PAL

Sync System internal

Minimum illumination < 1 lux

White balance Auto

IR LEDs YES

Video color Colorful

Waterproof class IP68

Effective pixels 580(H)*540(V)

Resolution 420 TV lines

Sensing area 3.5964*2.7084mm

Video output 1.0Vp-p, 75?

Electronic shutter 1/60S-1/5000S

S/N ratio Better than 48dB

Lens angle 170 degree

Operation temperature -20° ~+70°

Storage temperature -30° ~+80°

Warranty 12 months
