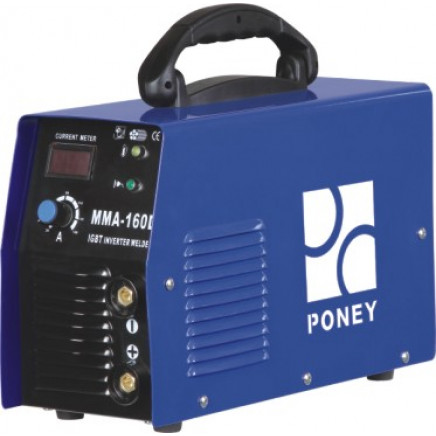

CE Approved Single Board IGBT Welding Machine (MMA-85/105/125/145/160)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:50 Pieces

Trade Terms:FOB

Payment Terms:T/T, Western Union

Model NO.:MMA-85/105/125/145/160

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:MMA-85/105/125/145/160

Type:ARC Welders

Current:Direct Current

Export Markets:Global

Product Description

Single PCB IGBT welding machine
Features:
1. Smart mini welder is designed to provide user with convenient, efficient and quality welding solution.
2. IGBT technology, compact, easy to carry
3. Engertg saving and durable, current can be adjusted. High duty cycle.
4. Excellent anti-static, thermal and over-load protection.
5. Easy arc start and strong compensation capability high frequency, fan cooled.
6. Supplied with eletrode holder, earth clamp, face maskhammer/brush.
7. Suitable for welding carbon steel, alloy steel, cast iron, stainless steel, etc.

ITEM/MODEL	MMA-85D	MMA-105D	MMA-125D	MMA-145D	MMA-160D
Power voltage(V)	230	230	230	230	230
Frequency(HZ)	50/60	50/60	50/60	50/60	50/60
rated input capacity(KVA)	2.5	3.2	3.9	3.2	3.9
No-load voltage(V)	60	60	62	62	62
Output current range(A)	20-80	20-100	20-120	20-140	20-160
weleling fod(dia mm)	1.6-2.5	1.6-3.2	1.6-3.2	1.6-4.0	1.6-4.0
duty cycle(%)	60	60	60	60	60
power factor	0.93	0.93	0.93	0.93	0.93
cool type	fan	fan	fan	fan	FAN
weight(KG)	5.5	5.5	6	6	6
dimensions(cm)	301223	301223	301223	301223	301223
