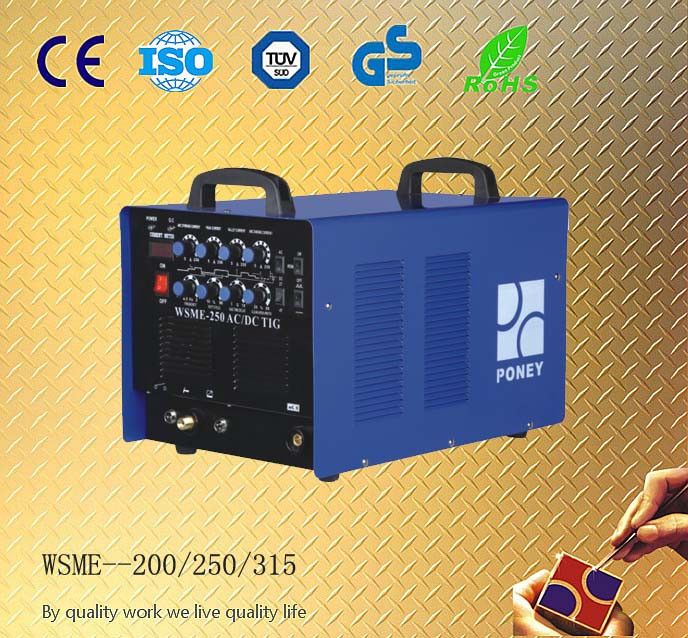

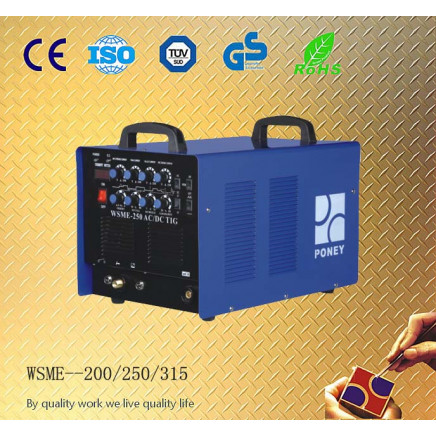

CE, RoHS Approved AC/DC TIG/MMA Inverter Welding Machine/Wsme Inverter Welder (WSME-200/250/315)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T, Western Union

Trademark:PONEY

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WSME-200/250/315

Certification:CE

Automatic Grade:Semiautomatic

Item No:Wsme-200/250/315

Technique:Mosfet

Current:AC/DC

Pluse:Yes

Accessoires:TIG Welding Cable ,Earth Clamp,Brush,Mask

Export Markets:Global

Additional Info.

Trademark:PONEY

Packing:Standard Export Carton Orcolor Box, as Your Design

Standard:CE, ISO, GS, ROHS

Origin:Wenling, Taizhou City

HS Code:85153900

Production Capacity:1000 PCS Per Month

Product Description

CE,ROHS approved ac/dc tig/mma inverter welding machine/Wsme Inverter Welder (WSME-200/250/315)
ac/dc tig/mma inverter welding machine/wsme inverter welder/welding machine features:
1. Mosfet inverter technology, AC/DC intergrated with MMA/TIG with pulse function
2. Energy saving, high efficiency
3. Anti static, thermalstatic protection, fan cooled
4. Hot start, over load protection, high frequency,
5. Supplied wit electrod holder, earth clamp, face mask, TIG torch, and brush
6. Applicable for all kinds of ferrous metal such as steel iron, titanium, aluminium, nickel and alloy etc

CE, RoHS Approved AC/DC TIG/MMA Inverter Welding Machine/Wsme Inverter Welder (WSME-200/250/315)

Model	WSME-200	WSME-250	WSME-315
Main Voltage	1PH 230V	3PH 380V+-10%	3PH 380V+-10%
Frequency	50/60Hz	50/60Hz	50/60Hz
Rated Input Capacity	7/4.5KVA	14/7.2KVA	15/9.6KVA
Max No-load Voltage	56V	68V	68V
Current Range	10-200A	20-250A	20-315A
Rated Duty Cycle	60%	60%	60%
Insulation Class	F	F	F
Rated work voltage MMA/TIG	28/18V	30/20V	32/22.6V
Power Factor	0.93	0.93	0.93
Cool Type	Fan	Fan	Fan
Dimension	523336CM	573754CM	573754CM
Weight	22KG	31KG	34KG
