China Exported Liquied Gas Tanker Semitrailer 56cbm LPG Semitrailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 27800.0-38950.0/ Piece

Price:$27800.0 - $38950.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Feb 28, 2015 To May 28, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW945GYQ

Function:Storage Pressure Vessel

Application:Liquefied Gas

Material:Carbon Steel

Pressure:1.6MPa?p<10.0MPa

Storage Medium:Flammable/Toxic

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Condition:New

Product Name:LPG Tanker Semi-Trailer Cooking Gas Semi-Trailer,

Volume of LPG Semitrailer:From 30000 Liters to 60000 Liters

Tank Body Material:Stainless Steel, Alluminium Alloy, Carbon Steel

Design Pressure:1.77 MPa

No. Axles:2 or 3

LPG Semi-Trailer Landing Gear:Jost Two-Speed, Manual Operating, Heavy Duty Landi

LPG Semi-Trailer King Pin:Jost 2"Standard Bolt-in King Pin

LPG Semi-Trailer Suspension:German Design Mechanical Suspension

Tire Specification:11r22.5

LPG Semitrailer Painting:1 Coat of Anticorrosive Prime, 2 Coats of Final PA

Export Markets:Global

Product Description

product note.

1, certificate ISO9001,3C, ASME standard

2 High quality, low price.

3 Loading LPG tanker volume40.5m3 to 58.5m3

4 Fuwa, L1 or BPW 2 axles or 3 axles.

5,Very Safety Control System: float liquid indicator, built-in safety valve, emergency cut-off valve, ball valve and etc.

2 . LPG tanker semi trailer brief:

1) Designing pressure:1.77Mpa Designing temperature:-20C-50C
2) The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity.light weight and high efficiency.
3 )We inspect the quality of product strictly,ensure that A and B type of welding seam pass the examination of level two radiographic test,C and D type of welding seam pass the examination of level one radiographic test.
4) There are domestic or imported safety accessories with high quality ,its matching is complete.
5) The anticorrosion coating of LPG tanker adopt the following process, sandblast, spray painting ,purging and so on.

Technique Parameters

Dimension of semi trailer
Tare Weight of LPG Trailer	11500KGS
Pay Load	25000KGS
Overall Length	11400mm
Overall Width	2480mm

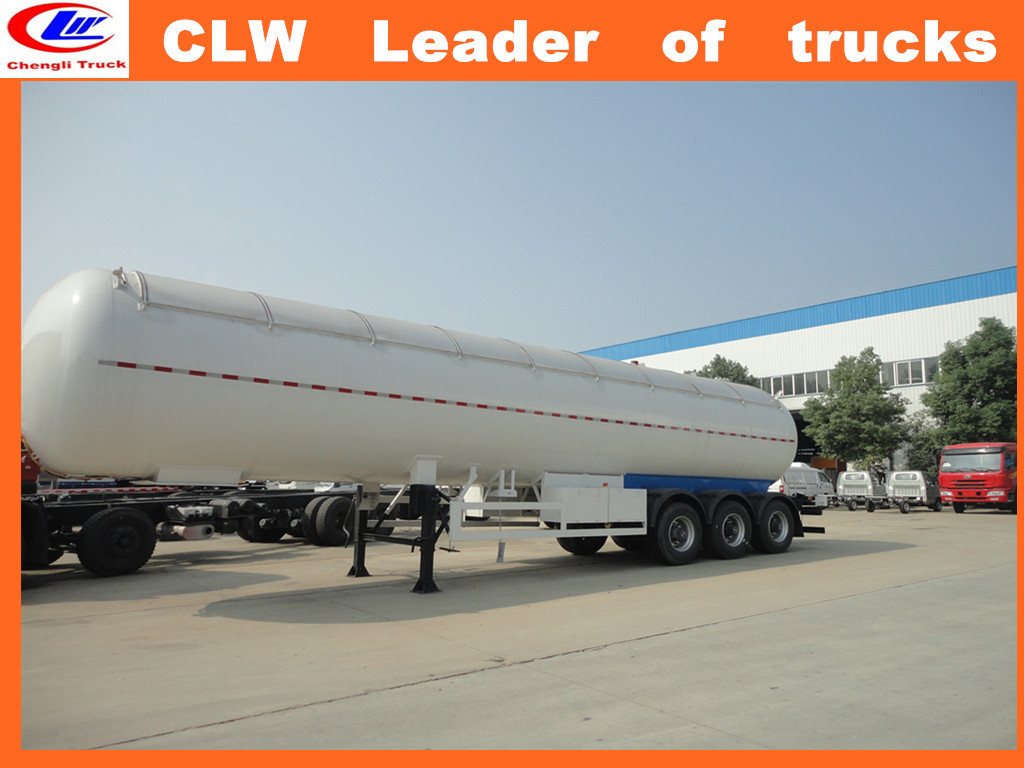

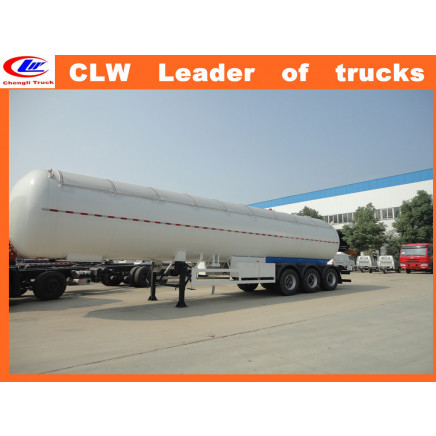

Photo for reference, finial product can be made according to exact requirements lpg tank trailer
Tank
Transporting Media		Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane
Shape		Round Shape semi trailer
Total Volume(m3)		56CBM
Tanker Body Steel Sheet		Q235A/14mm semi trailer
End plate		Q235A14mm, by punching
Parts for Tank
Manhole cover		3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve
Unloading valve		2-3 sets of DN80 fixed at button of Tank
Pipeline at button of tank		4"seamless steel tube/Q235
Labeling system		Oil Type Indication
Anti-static electricity system		pulling, wire carrier, sheet copper (6 sheet-standard layout)
Other Parts of semi trailer
Ladder		1 unit at front of Tank
Guard on top of Tank		Zinc galvanized -guard-net
Oil hose box		Circular single hole tube, 1 unit on each side
Oil hose		2 unit, 3" x 6m size in black rubber
Side guard		cross bar-structure
Rear button guard		Fixed type
Work tank deck		Box type
Fire extinguisher box		2 unit at the back of each side
Mud guard		Steel structure in trapezoid form
Lights and wire		24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
Chassis of semi trailer
Main Beams		Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
Axle		3 axle
		BPW brand FUWA brand
Landing Gear		JOST Two-speed, manual operating, heavy duty landing gear
King Pin		JOST 2"standard bolt-in king pin
Suspension		German design mechanical suspension for semi trailer
Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim		8.25R22.5 wheel rim
Tire		11R22.5 tubeless tire with one spare tire for semi trailer
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Our service for exported trucks
After-sale Service of semi trailer
12months for 3 key parts (engine, transmission, axle).
Tracking service time: lifelong.
Third-party service for overseas client.

CLW SERIES PRODUCT------ YOUR FRIST CHOICE IN CHINA

Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment. LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
