China Manufacture Refueling Tank Truck Mini Refuel Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

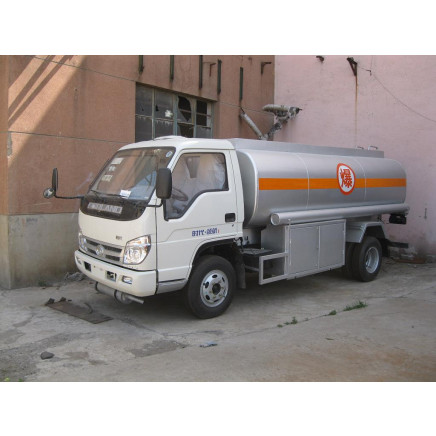

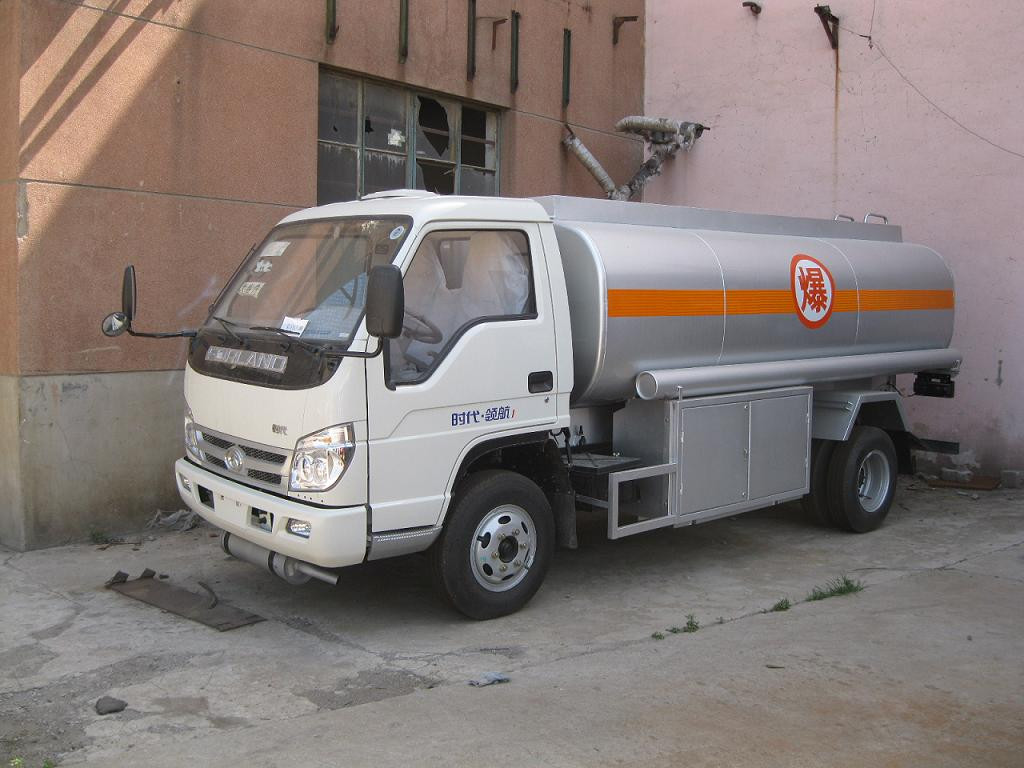

China Manufacture Refueling Tank Truck Mini Refuel Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 15000.0-22500.0/ Piece

Price:$15000.0 - $22500.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Jul 16, 2015 To Oct 16, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW

Transmission Type:Manual

Power:Diesel

Load Capacity:1-10t

Emission Standard:Euro 3

Tank Volume:?5000L

Drive Wheel:4�2

Seats:?5

Horsepower:?150hp

Engine Capacity:?4L

Storage:Oil

Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO, DOT

Tire Design:Bias

Condition:New

Description:Mini Refuel Tank Truck

Exhaust/Power(Kw):Cartonsteel, Stainlesssteel, Aluminumalloy

Tire:6.50r16, 4 Pieces+1 Spare Tire

Drive Type:4X2

Chassis Brand:Foton

Capacity:5cbm Refuel Tank Truck

Engine Model:Dongfeng, Deutz Ranault, Yc Sc Wd Cy Cummins

Warranty:Ne Year for Three Parts (Engine, Gearbox, Axle)

Package:Bulk, RO-RO, Container, Naked for Fuel Tank Truck

Market:Global

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:Naked, Waxed

Standard:SGS, BV, CCC, ISO, CE and others

Origin:Hubei, China

HS Code:8701909000

Production Capacity:30000sets/Year

Product Description

China manufacture refueling tank truck good price mini refuel truck hot sale refuel truck

Quick Details

1.Capacity Volume:5CBM
2.Horse Power:99HP
3. GVW.:4495kg
4.Overall Dimensions:5995*2020*2350mm
5. Transport Medium:Fuel ,Oil,Petrol.chemical liquid

1> With multiple baffle plates in the tank, the tank has the advantages of high intensity, stability, transporting safety etc.
2> Oil pump is installed to suck or discharge oil, with high suction pressure and speed.
3> According to users' needs, the tank can be designed as a single compartment or several compartments to contain different oils.
4> According to users' needs, the side or the rear of the tank can be installed 1 to 3 self-flowing valves.
5> According to users' needs,the tank panting color can be customized.

PACKAGING & SHIPPING

1, Naked or waxed .
2, Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.

Service
The extremely considerate and sincerely service would be provided to our customers immediately . This including:
1.Operator Training;
2.Spare Parts Supply.
3.Life-long Technical-support.

FAQ

Q:What is your payment term?
A:We accept payment by T/T,L/C.

Q :How many trucks do you sell in 1 year?
A :Almost 20000-30000sets

Q:Is your factory a manufacturer or trading company?
A:we are the manufacturer , we are the biggest special trucks factory in china special truck base.

Q:Where is your factory located,can we visit your factory?
A: Our factory is located in South Suburb Chengli Auto-mobile Industry Park,suizhou city,Hubei Province,China,nearby Wuhan airport,we sincerely welcome you to visit!

Contact Information

Sale Manager:  Yuki
Tel/Fax: 0086-27-83796298
Mobile :+008613872880232
   +008618858011948

Technique Parameters

Description	FOTON MINI REFUELING TANK TRUCK
Drive Model	4X2
Chassis	BJ5042
Vehicle Main Dimensions	Dimensions(L x W x H)mm	599520202350
	Wheel base (mm)	3220
	Overhang (front/rear) (mm)	1100/1695
	Wheel track (front/rear) (mm)	1450/1440
	Approach/Departure angle(�)	25/22
Weight in KGS	GVW.	4495
	Curb Weight	2805
Max. driving speed(km/h)		80
Engine	Model	CY4102
	Type	4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	99HP
	Emission standard	Euro IV
Gearbox	5 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	100
Tire	6.50R16, 4 pieces+1 spare tire
Brakes	dual circuit compressed air brake
TANK
Material	5mm carbon steel Q235 Aluminum Alloy/Stainless steel can be chosen
Tank Dimensions	Length:4000mm(the front 1500mm for refueling machine position),long axis:1100mm,minor axis:750mm
Tank Volume	3CBM
Standard Equipment	gravity valve,tool box,fuel pipes ,climb ladder,man hole
Optional Equipment	1.Computer refueling machine, installed for your choice, with a 15 meter automatic return oil pipe and refueling gun, achieving mobile refueling fuction. 2.additional tool box 3.fuel pump and flow meter

Company Information
Chengli Special Automobile Co, ltd which is appointed by Ministry of Industry and Information Technology of China, We are a Professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks.
Our company cooperates with famous chassis manufactureer, such as DONGFENG, FAW,SINOTRUK, JAC, SHACMAN, FOTON and etc.
Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place.They mainly from below country:Angola,Algeria,Kenya,Nigeria,Rwanda,Sudan,Zambia,Libya,Congo, Indonesia, Malaysia, Philippines,Vietnam,Turkey,Yemen,Syria.

Chengli Special automobile Co., Ltd also provide products as follows:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck,sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )



China manufacture refueling tank truck good price mini refuel truck hot sale refuel truck
Welcom to visit our factory!
