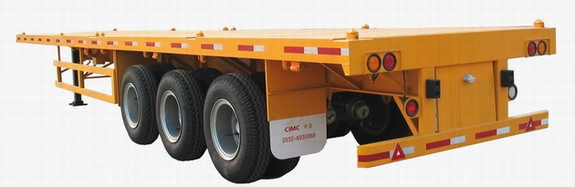

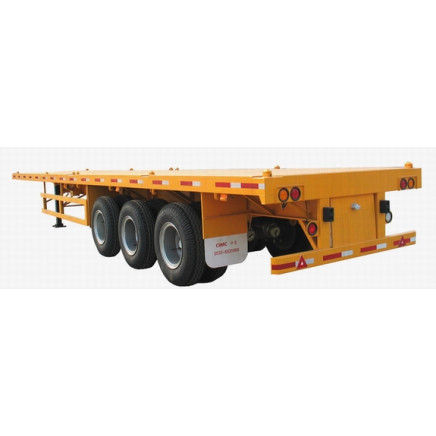

CIMC 3 axles flat bed container semitrailer 40ft

More Views

More than 10 available

Availability: In stock

Min. Order (Unit)	Unit Price
1.0	US $ 15000/

Price:US $15000.0 / Unit

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jan 08, 2013 To Nov 06, 2013

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Login or Signup to View Links.

Description

Type:Semi-Trailer

Certification:ISO

Brand:CIMC

Payload (kg):50000kg

Kingpin:3.5"Welded type

Suspension:Strengthened suspension for Africa area

Tire:12.00R20 Radial tyre, 12Pcs

Material:Steel

Scale:Heavy Duty

Components:Trailer Frame

Load Capacity:50T

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Trademark:CIMC

Packing:Nude Packing

Standard:CCC, ISO

Origin:China(Mainland)

Production Capacity:30000 Units Per Month

CIMC Chinese top brand.
Certificate:CCC, ISO

Dimension(mm)	LWH: 12500X2500X1800(mm)
Axle space(mm)	6950mm+1310mm+1310mm
Tare weight(kg)	8500kgs
Payload (kg)	50000kgs
G.V.W.R.	58800kgs
Landing gear	Linkage type, two speed with sand shoe
Kingpin	3.5”Welded type
Suspension	Strengthened suspension for Africa area
Axle	FUWA axle, 13 ton capacity/set,3pcs
Tire	12.00R20 Radial tyre , 12Pcs,
Rim	8.5-20 ,12 Pcs
Twist lock	12 units
Tool box	1 unit
Spare tire carrier	2 units
Main beam	500,14/6/16
Side beam	16# channel steel ,160mm height
Floor	3mm checked plate
Lights, electrical, accesories	yes, 24 volts,
