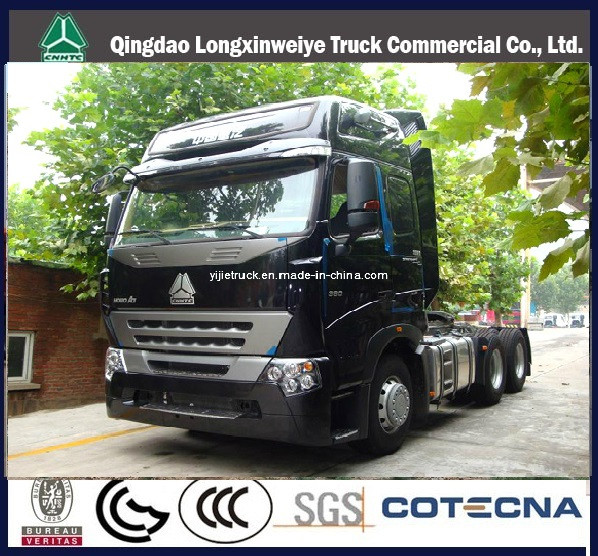

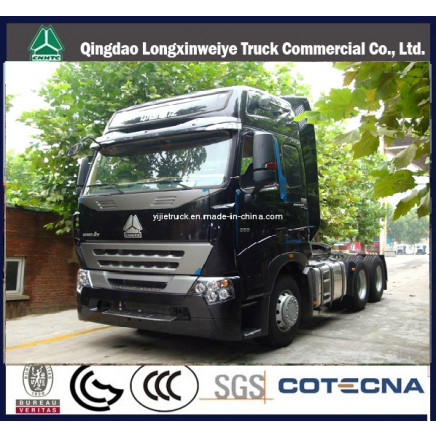

Cnhtc HOWO A7 6X4 Tractor Truck 420HP for Heavy Duty

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Unit

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Trademark:SINOTRUK

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ4257N3247N1B

Transmission Type:Manual

Power:Diesel

Load Capacity:41-50t

Emission Standard:Euro 3

Drive Wheel:6×4

Seats:?5

Horsepower:351-450hp

Engine Capacity:?8L

Tire Type:Inner Tube

Tire Design:Radial

Condition:New

Truck Type:Tractor Truck

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:SINOTRUK

Packing:Nude Packing

Origin:Shangdong, China

Production Capacity:60000units/Year

Product Description

Cnhtc HOWO A7 6X4 Tractor Truck 420HP for Heavy Duty

We are the first level agency for SINOTRUK whole truck series, we can supply HOWO trucks and HOWO A7 truck series, include tractor trucks, dump trucks and concrete mixer trucks.
The HOWO A7 series trucks are developed on the base of HOWO trucks, with higher technology and higher equipment, EUROIII emission standard.

SINOTRUK HOWO A7 6X4 tractor truck

Drive type: 6X4
Cab: A7-G cab, high floor& high roof with two sleeper beds, with A/C

Engine: SINOTRUK D10.38
Type: 6-cylinder in-line with water cooling, supercharging & inter-cooling
Displacement: 9.726L
Engine output: 380HP /1900 rpm
Max. Torque: 1590 NM /1200-1500rpm

Transmission (gear box): HW19710, 10 speed transmission
Clutch: D430 Diaphragm type
Steering: ZF8098
Front axle: HF9 drum type, 9tons
Rear axle: HC16 doubel reduction
Ratio=5.73
Fuel tank: 400L (600L is optional)
Tire: 12.00R20, 10+1spare

Kerb. Mass: 9200kg
Total mass: 25000kg
Max. Towed capacity: 39600kg
Max. Speed (km/h): 91
Max. Gradeability(%): 26.5
Approach/departure angle: 15/46 degree

Overall dimension(mm): 6985× 2496× 3850
Wheel base (mm): 3225+1350
Front/rear overhang (mm): 1540/870
Front /rear wheel track(mm): 2041/1850
Saddle joint surface height(empty/full): 1410/1346
Front /rear turning circle(mm): 2460/2250
Minimum ground clearance(mm): 324
Saddle size: 2''( 3.5'' is optional)

HOWO A7 Tractor Truck		ZZ4257V3247N1B
Technical Performance	Drive type	6x4
	Overall Dimensions(mm)	6985x2496x3745
	Transmission	SINOTRUK HW19710ACL, ATM type (Automatic & Manual), 10 forward speeds+2 reverse speeds WABCO system
	Wheelbase(mm)	3200+1400
	Rear tread (mm)	1830
	Overall weight (kg)	25, 000
	Gross Vehicle Weight (kg)	8, 800
	Retractor bearing capacity (kg)	16, 070
	Rated Pull Weight	40, 000
	Max. Speed (km/h)	101
Engine	Type	D12, 42, 420hp, Euro 3
	Displacement (cc)	11596 INSIDE CAB PIC
	Max. Output power(hp/rpm)	420hp
Clutch		Spring plate dry diaphragm spring diameter ? 430, hydraulic operating with air assistance
Driving axle		HC16, 16tons (HOWO heavy hub reduction driving axle) Ratio: 4.42
Front axle		HF9, 9 tons with plate (disc) brake
Steering		ZF power steering model ZF8098 hydraulically steering with power assistance
Brake		Serive brake: dual circuit compressed air brake
		Parking brake: spring energy compressed air operating on rear wheels
Tank		600 Liter aluminum alloy
Tyre		315/80R22.5, tubeless tires
Cab Seating capacity (includes driver)		HOWO A7-G, cab 2 persons with two beds
Air condition includes		YES
ABS (WABCO)		YES
Whole mudguards		YES
Battery		180AH
Fuel tank		600L aluminum alloy
5th wheel:		90mm
Colour:		White
Year of manufacturing		April, 2012, brand new
