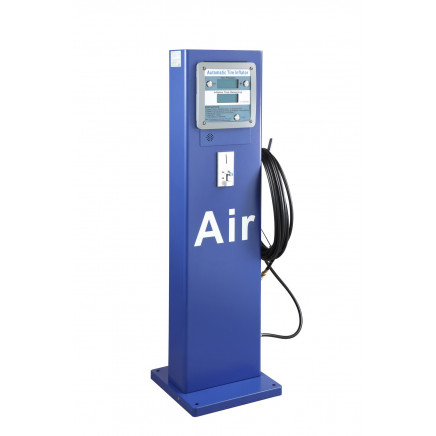

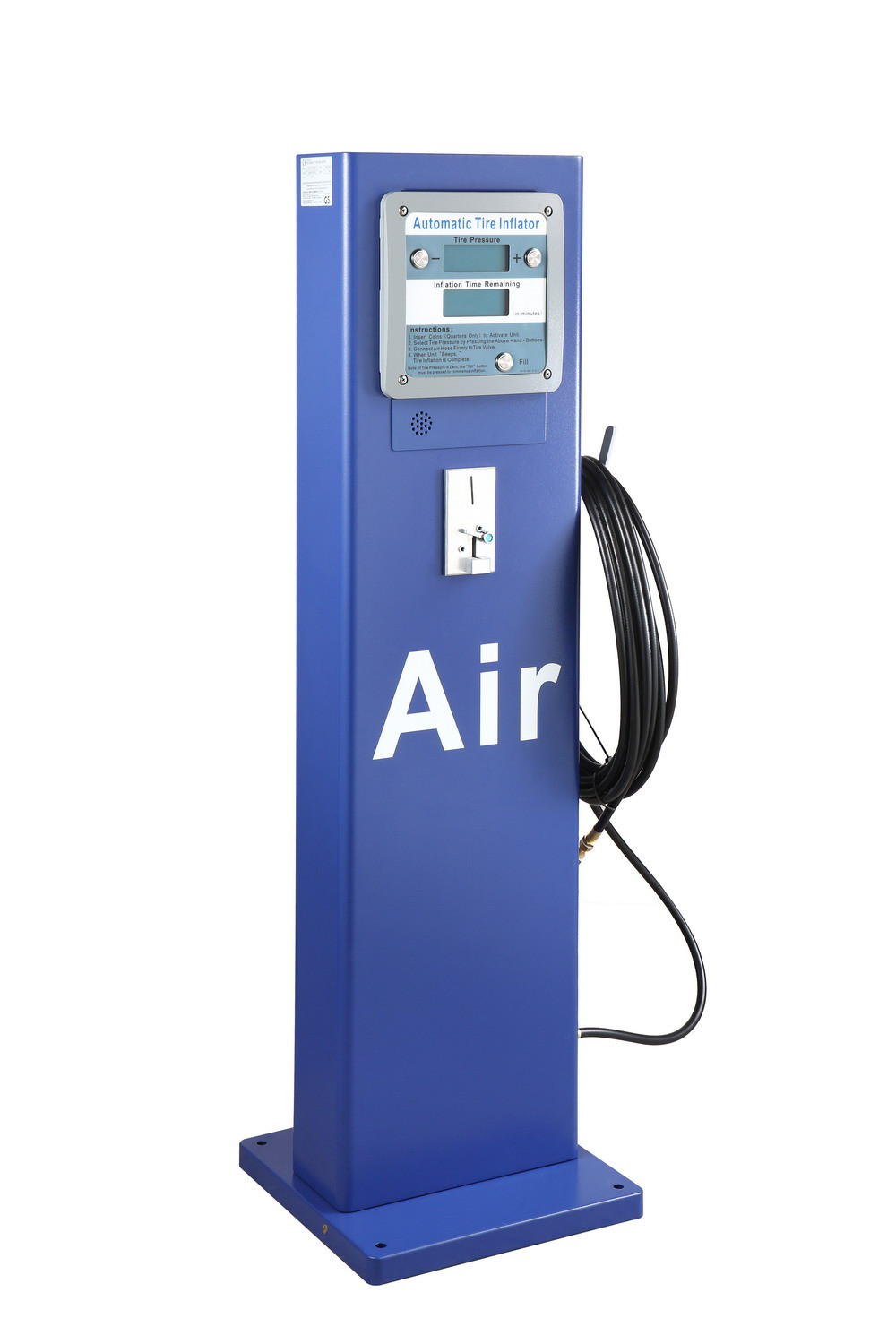

Coin-Operated Digital Tyre Inflator E-07-T-Od-Wp-2

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, CFR, CIF

Payment Terms:T/T

Trademark:G5

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:E-07-T-Od-Wp-2

Certification:CE

Update Method:by Email

Export Markets:Global

Additional Info.

Trademark:G5

Packing:Carton

Standard:CE

Origin:China

HS Code:84148090

Production Capacity:800PCS/Month

Product Description

Technical data summary
Dimensions(height*width*depth) 1260mm*450mm*380mm
packing size(height*width*depth) 1380mm*730mm*510mm
Net weight 35KG
Gross weight 46KG
Power requirement 100-240vac 50/60hz
power consumption 10va
operating temperature range -20 to 70, -4°F to 158°F
Max Inlet Air Supply                       145psi, 1000kPa, 10bar
Recommended Inlet Supply Pressure        44 psi, 300kPa or 3 bar above the maximum set pressure of the unit.
Operating Pressure                        Minimum    5 psi, 35 kPa, 0.3 bar
Maximum   102 psi, 700 kPa, 7.0 bar
Accuracy                                +/-1 psi, 7 kPa, 0.07 bar
Display Increments                       1 psi, 5 kPa, 0.1 bar
Units of Measurement                     psi, kPa, bar
Coin-Operated Digital Tyre Inflator E-07-T-Od-Wp-2
