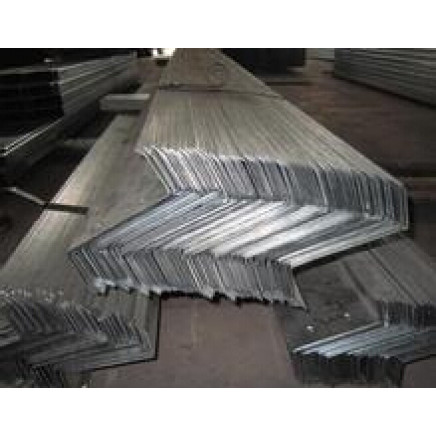

Colorful Z Section Steel Sheet

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:US $600.0 / Ton

Min. Order (Tons)	Unit Price
20.0	US $ 600/ Ton

Trade Terms: FOB, CIF

Payment Terms: T/T

Price Valid Time:From Jul 01, 2014 To Dec 31, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Description

Details

Basic Info.

Type:Channel Steel

Application:Steel Structure Platform

Forming:Cold Drawn Steel

Standard:GB

Place of Origin:Xiamen China

Brand Name:Shengxin

Grade:Q235/Q345

Materials:Galvanized Steel Sheet/Prepaint Steel

Width:80mm-300mm

Usage:Steel Structure?s Roofing Purlin

Length:as Per Customer?s Request

Export Markets:Global

Additional Info.

Trademark:Shengxin, JKS

Packing:Others

Standard:SGS BV

Origin:Xiamen, China

Production Capacity:10000 Metric Ton/Per Month

Product Description

Specifications
C purlin
1. Thickness: 1.5mm to 3mm
2. Grade: Q235 Q345
3. Width: 80mm-300mm
4. Material: Galvanized /prepaint /black steel

C purlin & Z purlin product description
Features:
1. Manufactured from high tensile galvanized steel
2. Despotic C & Z section steel, Z section steel is roll- formed from galvanized steel, specification to be complete.
3. Make from quality raw material.
4. Pre-punched holes based on detail design.
5. Complete assessories package available.
6. C purlin, Z purlin and H beam are widely used in factory buildings, large -span bridges, gymnasiums and portable houses.
7. C purlin may be used in single spans and continuous spans in multi-bay buildings.
8. We can make adjustment to meet your inquiries as we can do.

Brand Name:SXGG :				Product Name: Z Purlin Z
Model NO.	Section size (mm)					Hole distance (mm)
Model NO.	H	B1	B2	C	T	h	Length (m)
Z100	100	55	50	20	2.0-3.0	40	<=11.8m (as customer's requirement ;
Z120	120	55	50	20	2.0-3.0	adjusted
Z140	140	55	50	20	2.0-3.0	adjusted
Z150	150	67	61	20	2.0-3.0	adjusted
Z160	160	67	61	20	2.0-3.0	adjusted
Z180	180	67	61	20	2.0-3.0	adjusted
Z200	200	67	61	20	2.0-3.0	adjusted
