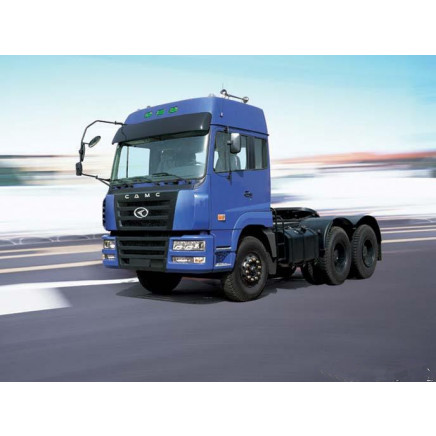

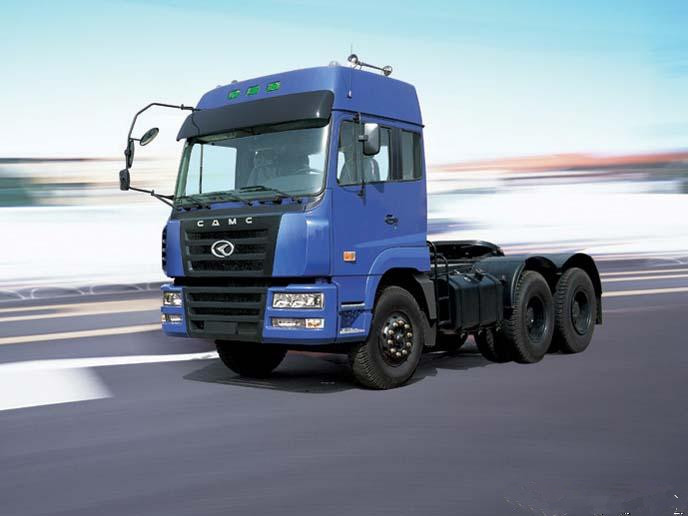

CAMC Tractor Truck H08 6X4 Europeen type, 1. Engine: Cummins (DF) L375 302. Transmission: FAST 12JS160T3. Payload: 45,000KG CAMC 6x4 Sandard Model tractor truck
Product Name | Tractor Truck |
Product Model | HN4250G38CLM/HN4250P28C2M |
Manufacturer | Anhui Hualing Automobile Co.,Ltd |
Place of Origin | Maan shan, Anhui, China |
Kerb mass | 8.8ton |
Rated Payload | 40ton |
Drive Type | Left-Hand(optional RHD) |
Drive Model | 6×4 |
Vehicle Body Color | White(optional) |
Overall Dimension (L x W x H)mm | 6750x2495x3100(3560 for High-roof cabin) |
Engine | Brand | CUMMINS |
Model | L375 20/C300 20 |
Max. Power (kw/r/min) | 273/2200 |
Displacement | 8900ml/8300ml |
Emission Standard | Euro II |
Clutch | Model | ?430 diaphragm spring |
Transmission | Brand | FAST GEAR |
Model | 12JS160T (12-speed & 2-reverse) |
Type | twin countershaft; all synchronizer |
The Number of Axles | 3 |
Rear Axle(drive axle)-Model | 13T |
Front Axle-Model | 7.5T |
Cabin type | European style Flat roof(optional CF,CH,EH) |
Cabin | With A/C, Radio, Bunk |
Brake System | Full air brake with exhaust brake (optional ABS) |
Steering System | HITACHI |
Wheelbase (mm) | 3200+1350 |
Wheel/Tire | Type | Radial tube(Option: Nylon/Radial tubeless) |
Model(optional) | 12.00R20(Options:11.00-20/11.00R20/11R22.5 12.00-20/12R22.5/13R22.5) |
Tire number | 10+1 |
Fuel Tank | Volume(L) | 380 (optional 500L) |
The fifth wheel (Saddle) | JOST 50# /2 inches ;(optional 90#/3.5inches) |
The working platform | With |
Diversion cover | Optional |
Front overhang/Rear overhang(mm) | 1370/1020 |
Approach/Departure Angle(°) | 24/23 |
No. of steel spring(front/rear) | 9/12 |
Max. Speed (km/h) | 90 |
Comfortable Driving:
Production Line:
What are CAMC GROUP advantages:
I Trucks,Semi trailers,parts,maintains one station service as a package;
I World A class quality with a heavy impact testing;
I Hundreds of pattern type for your choice;
I Production data follow your requests;
I Give you a availeble suggestions follow your usage;
I Fashion type design;
I The tools bring you profits;
I Over 40 years experience;
Oprional Parts:
Hyvo cylinder;Road off bumper;12.00R,13.00R,12R22.5,315R/80 tires;Double bed or single bed;
Right and left driving;Imported Steering;Electric Mirror;Vertical exhaust pipe;WABCO ABS;Work platform;Side protector;Air guide sleeve;Front steel bumper.
Questions before decision:
Q: Can i get any discount?
A: Yes, there are 3 ways:
1: Order over 15 units;
2: Place order with our trailer and other goods;
3:100% TT advanced payment.
Q: Is inspection need after final production?
A: No, CAMC GROUP has a professional internal QC team to control the quality within and after final production. The buyer's inspection is also allowed.
Q:How long I can get the goods after confirm order?
A: We need 7-30days for production;If you could arrange 100%TT, we will booking ship advanced,you dont need to wasting time for waiting delivery.
Q: What is your guarantee?
A: 1 year or 12000km;
Q: What should i do if claims appears?
A: When the claims appear, what we need are the pictures of products, use condition brief, the order information. CAMC GROUP will analysize the problem, even field investigation, and work out an final option with customers.
