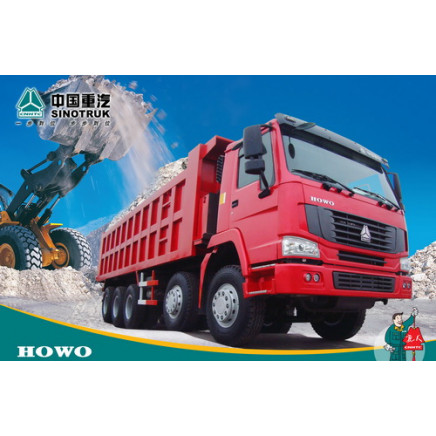

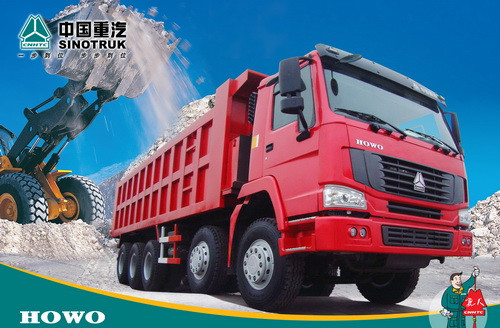

Competive Price Dump Truck of HOWO Truck 8X4

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 40000.0-55000.0/ Piece

Price:$40000.0 - $55000.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Aug 11, 2015 To Nov 11, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WD615.95

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 2

Drive Wheel:6�4

Engine Capacity:?8L

Seats:?5

Horsepower:351-450hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Tubeless

Dumping Type:Front Lifting Style

Condition:New

Optional:Extended Cabin

Export Markets:Global

Additional Info.

Trademark:HOWO

Packing:Nude

Standard:SGS

Origin:Jinan, China

HS Code:8701909000

Production Capacity:500, 000 Unit/Year

Product Description

Popupar model
HOWO Tipper basic configurations and main technical parameters (8�4, Euro II, standard cab)

Products Technical Specification
Type	8*4 Dump truck
Brand	Sinotruk-HOWO
Cab	HW76, Half row,With A/C,sleeper
Vehicle Description
Overall dimensions(mm)	1135025003450/3563
G.V.W (kg)	31000
Curb weight(vehicle) (kg)	15960
Loading capacity (kg)	40ton 50ton 60ton
Max speed (Km/h)	85
Engine
Engine model	WD615.95
Maximum power	247kw / 336hp
Displacement (lit)	9.726
Engine Manufacturer	Sinotruk Industry Import and Export co.,ltd
Chassis Description
Chassis Model	ZZ3317N4667C
Wheel base	1800+4600+1350,1800+4600+1400
F/R track base(mm)	2022/2022,2041/2041 1830/1830
F/R overhang(mm)	1500/2100
Approach/Departure angle(�)	16/13
Spring plate	14/13
Front axle / rear axle	HF9/HC16
Type of fuel	Diesel
Transmission	HW15710,10-Speed
Brake System	Air braking
Operation control system	Power steering
Electric system	24V
Tire specification	11.00-20,11.00R20,12.00-20 18PR,12.00R20 18PR
Up-parts Description
Van dimensions(mm)	820023001500,1800
Van description	Equipped with material of carbon steel, side 6mm thickness;bottom 8mm thickness Equipped with middle hydraulic ram, single door.

Sinotruk factory and production room show:

What are Sinotruk main brand products?
We primarily organize the development,manufacturing and sale of trucks, special trucks,buses,special vehicles,engines and engine units,auto parts and special chassis.
We have become an all-series commercial vehicle conglomerate with brands such as Sitrak,Howo,Steyr,Huanghe Commander,Gold Prince,Hohan,Wanpai,Folor,Wero with Europe II-V engines range from 140hp to 580hp in terms of power;As well as an enterprise with the most complete range of drive types and powers in China's heavy truck industy.

What about Sinotruk's history?
Founded in 1956,Jinan General Auto Works Plant,the predecessor of China National Heavy Duty Truck Group Co.,Ltd(SINOTRUK),is the cradle of China's heavy-duty truck industry.
The works manufactured China's first heavy-duty truck-Huanghe JN150 8T TRUCK in 1960,and introduced a heavy-duty truck project from Steyr in 1983 as China's first enterprise that introduced heavy truck manufacturing technologies from abroad in an all-round manner.

How about Sinotruk's reputation?
As No.1 of China vehicle group,with overwhelming superiorities in technology and market in the heavy-duty truck industry,we have achieved substantial sales at home and abroad,and exported products to over 90 countries,thus being accredited as a national vehicle export base by the National Development and Reform Commission and the Ministy of Commerce.Also,we have claimed titles such as "National Advanced Grass-roots Party Organization","National Civilized Entity","Chinese Famou Product","Chinese outstanding innovative Enterprise","China's Most Credible Enterprise" and "China's First Group of 2A Enterprises in Quality and Credit Management".

What about Sinotruk's demonstration of power?

Since after the reform and restructuring,we have persisted in independent innovation,vigorously implemented the strategy of leading in technology and build core competiviveness with independent intellectual property,thus becoming an enterprise with most patents in China's auto industry.Sinotruk Technical Development Center,among China's first group of national corporate technical center,has a testing laboratory accredited by the China National Accreditation Board for Laboratories,is capable of developing and testing vehicles,engine,parts and material processes,own sophisticated processing and testing euipment,and has been up to advanced world standards in terms of equipment such as engine,vehicle,parts vebration and strength test equipment.In 2009,upon aprroval by the State,the National Heavy-duty Truck Engineering Research Center was inaugurated in SINOTRUK,which undertakes functions such as technical R & D,application demonstration,achievement popularization and technical service in China's heavy-duty truck industry.
Also,we have 3 automatic body stamping lines,8 cab welding lines,12 cab painting lines and 9 vehicle assembly lines,whose equipment have been up to advanced international standards.
How about Sinotruk's delivery time?
We need 7-45days for production;Decided by the business season and the products you choose.

What about Sinotruk's guarantee?
1 year or 12000km;

What should I do if claims appears?
When the claims appear, what we need are the pictures of products, use condition brief, the order information. Sinotruk will analysize the problem, even field investigation, and work out an final option with customers.

Does Sinotruk have a good orgonization of shipping vessle ?
Yes,we have a good and long term cooperation with the world first class famous shipping company line,like MSK,PIL,SUNSHINE SHIPPING,ETC.The order over 500 units of vehicle,we will lease a vessel.
