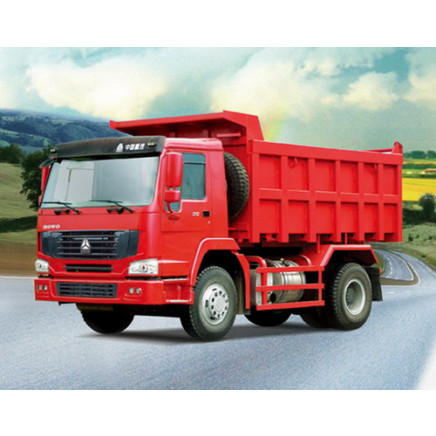

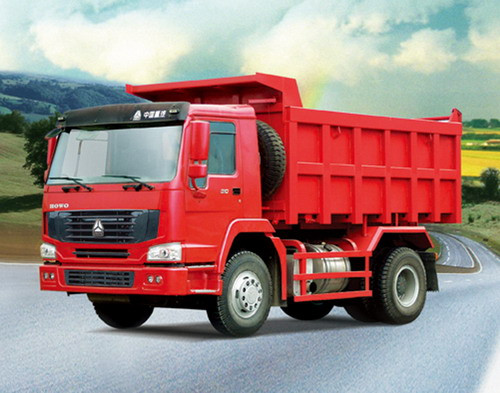

Competive Price Sinotruk HOWO Dump Truck Of20m3

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 30000.0-45000.0/ Piece

Price:$30000.0 - $45000.0 / Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Paypal, Money Gram, Western Union

Price Valid Time:From Apr 10, 2015 To Jul 03, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WD615.92

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 2

Drive Wheel:6�4

Engine Capacity:?8L

Seats:?5

Horsepower:351-450hp

Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO

Tire Design:Tubeless

Dumping Type:Front Lifting Style

Condition:New

Cargo Dimention:Follow Your Request

Engine:336-420

Cabin:Extended Cabin Optional

Export Markets:Global

Additional Info.

Trademark:HOWO

Packing:Nude

Standard:SGS

Origin:Jinan, China

HS Code:8701909000

Production Capacity:500, 000 Unit/Year

Product Description

HOWO Tipper basic configurations and main technical parameters (6�4, EuroII, standard cab)

It is a mature model of SINOTRUK with the reliable and stable structure design, high bearing capacity, excellent engine force and highly stable performance, with its fame forged in construction and mining industries with adverse operating environments, available for the short-range earthwork transportation tasks for mines and construction projects.

Mass Parameter	Curb Weight(kg)		9910
	Maximum Allowable Total Mass(kg)		20000
	Towable Total Mass(kg)
Dimensions	Overall Dimensions(mm)	Length	7934,7634
		Width	2496
		Height	3170,3450
	Wheel Base(mm)		3225+1350
	Minimum Ground Clearance(mm)		314
Performance Parameters	Maximum Speed(km/h)		75
	Economic Speed(km/h)		60
	Maximum Gradability(%)		70
	Minimum Turning Diameter(m)		15
Recommended	Engine	Model	WD615.92,WD615.93,WD615.92C,WD615.93C,WD615.97C
		Net Power(kW)/Rotating Speed(r/min)	196/2200 213/1900 198/1900 213/1900 221/1900
		Maximum Torque(Nm)/Rotating Speed(r/min)	1100/1100-1600 1160/1100-1600 1190/1100-1600 1290/1100-1600 1190/1100-1600
	Gearbox		HW15710
	Clutch(mm)		430
	Rear Axle	Type	HC16
		Gear Ratio	5.73 5.45 4.77
	Oil Tank(L)		300
	Chassis Cross Section(mm)		300
	Suspension(Frontal & Rear Springs)		10/12,10/-
	Tires		11.00-20,11.00R20,12.00-20,12.00R20

Sinotruk factory and production room show:

What are Sinotruk main brand products?
We primarily organize the development,manufacturing and sale of trucks, special trucks,buses,special vehicles,engines and engine units,auto parts and special chassis.
We have become an all-series commercial vehicle conglomerate with brands such as Sitrak,Howo,Steyr,Huanghe Commander,Gold Prince,Hohan,Wanpai,Folor,Wero with Europe II-V engines range from 140hp to 580hp in terms of power;As well as an enterprise with the most complete range of drive types and powers in China's heavy truck industy.

What about Sinotruk's history?
Founded in 1956,Jinan General Auto Works Plant,the predecessor of China National Heavy Duty Truck Group Co.,Ltd(SINOTRUK),is the cradle of China's heavy-duty truck industry.
The works manufactured China's first heavy-duty truck-Huanghe JN150 8T TRUCK in 1960,and introduced a heavy-duty truck project from Steyr in 1983 as China's first enterprise that introduced heavy truck manufacturing technologies from abroad in an all-round manner.

How about Sinotruk's reputation?
As No.1 of China vehicle group,with overwhelming superiorities in technology and market in the heavy-duty truck industry,we have achieved substantial sales at home and abroad,and exported products to over 90 countries,thus being accredited as a national vehicle export base by the National Development and Reform Commission and the Ministy of Commerce.Also,we have claimed titles such as "National Advanced Grass-roots Party Organization","National Civilized Entity","Chinese Famou Product","Chinese outstanding innovative Enterprise","China's Most Credible Enterprise" and "China's First Group of 2A Enterprises in Quality and Credit Management".

What about Sinotruk's demonstration of power?

Since after the reform and restructuring,we have persisted in independent innovation,vigorously implemented the strategy of leading in technology and build core competiviveness with independent intellectual property,thus becoming an enterprise with most patents in China's auto industry.Sinotruk Technical Development Center,among China's first group of national corporate technical center,has a testing laboratory accredited by the China National Accreditation Board for Laboratories,is capable of developing and testing vehicles,engine,parts and material processes,own sophisticated processing and testing euipment,and has been up to advanced world standards in terms of equipment such as engine,vehicle,parts vebration and strength test equipment.In 2009,upon aprroval by the State,the National Heavy-duty Truck Engineering Research Center was inaugurated in SINOTRUK,which undertakes functions such as technical R & D,application demonstration,achievement popularization and technical service in China's heavy-duty truck industry.
Also,we have 3 automatic body stamping lines,8 cab welding lines,12 cab painting lines and 9 vehicle assembly lines,whose equipment have been up to advanced international standards.
How about Sinotruk's delivery time?
We need 7-45days for production;Decided by the business season and the products you choose.

What about Sinotruk's guarantee?
1 year or 12000km;

What should I do if claims appears?
When the claims appear, what we need are the pictures of products, use condition brief, the order information. Sinotruk will analysize the problem, even field investigation, and work out an final option with customers.

Does Sinotruk have a good orgonization of shipping vessle ?
Yes,we have a good and long term cooperation with the world first class famous shipping company line,like MSK,PIL,SUNSHINE SHIPPING,ETC.The order over 500 units of vehicle,we will lease a vessel.

Truck Chassis	Driving type 6x4
Cabin	HOWO 76 Standard cab, with two seats and one bed, with air condition

Vehicle Main Dimensions	Overall dimensions (L x W x H)mm		8500x2495x3300
	Wheel base (mm)		3825+1350
Weight in KGS	Tare Weight		12600
	Front axles HF9 loading capacity		9000
	Rear axles HC16 loading capacity		2x16000
	Total loading capacity		35000
Engine	Brand		SINOTRUK
	Model		WD615.47
	Type		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)/(RPM)		371HP
	Emission standard		Euro II
Gearbox	HW19710, 10 forward & 2reverse
Clutch	Reinforced diaphragm clutch 430
Steering Gear	power steering, hydraulic steering with power assistance
Fuel tank (L)	300
Tire	12R22.5 tubeless tire 11pcs
Dump body	Dimension	Lx W x H		5600x2300x1500
	Thickness	Floor 8mm, side 6mm
Hydraulics	Tipping Type: Front tipping HYVA brand
