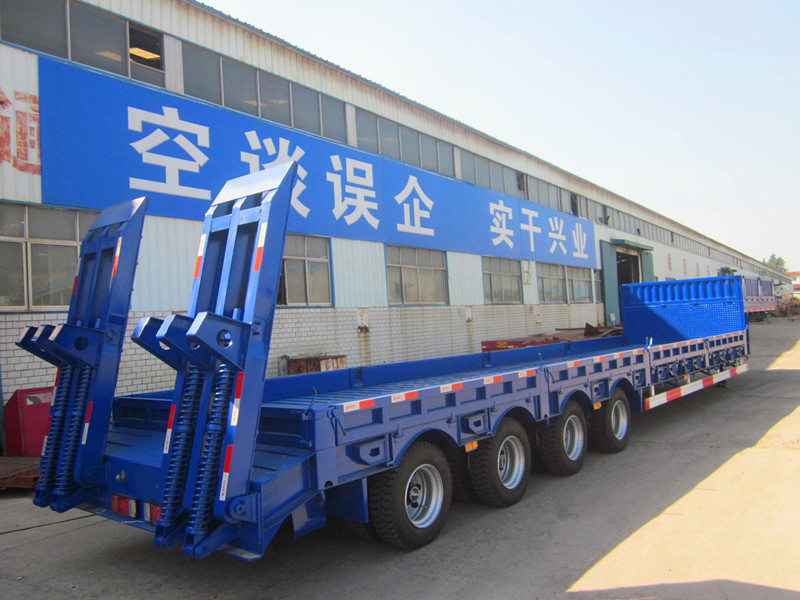

Ctac Brand Hot Selling 45tons-100tons 4 Axles Extended Semi Trailer

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Ctac Brand Hot Selling 45tons-100tons 4 Axles Extended Semi Trailer

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$13000.0 - $13500.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 13500/ Piece
150.0	US $ 13000/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Mar 10, 2015 To Jun 04, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description
Additional Information
Reviews

Description

Details

Basic Info.

Model NO.:CTY024

Type:Extended Semi Trailer

Towing Pin Material:Carbon Steel

Impeller Type:Extended Semi Trailer

Hook Type:Double

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Semimetal

Towing Pin Type:"I" Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Trailing Arm Type

Tare Weight:About 10-14.5t

Shape:Gooseneck

Size:14500mm*2500mm*1700mm

Loading Capacity (T):45t-100t

Suspension:Mechanical Suspension (Germany Type or America Typ

Axle:13 T/16t, Fuwa /BPW /Huajing Brand

Rim:6.5-20/7.5-20/8.00-20/8.5-20

Ladder:Manual or Hydraulic Type

Brake Chamber:Wabco Re 6 Relay Valve; T30/30+T30 Spring Brake CH

Valve:Wabco Valve

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:CTAC

Packing:Naked, by Bulk Cargo Carrier, 40hq Container

Standard:CCC2000, ISO9001 SGS

Origin:Shangdong Jining

HS Code:87163990

Production Capacity:200units/Month

Product Description

Introduction of our company
Shandong Liangshan Tongya Automobile Co.,Ltd is listed among appointed enterprises to produce and refit automobile approved by Development and Reform Commission of China ( former Economy and Trade Commission of China), the first cooperation enterprise with its products listed in Public Notice on automobile refitting for management. We are the full-size Modified Truck enterprise which integrate the design of product, scientific research developing, production and sale together, Possessing subsidiary companies of Automobile Production, Automobile Trade and Automobile Fittings Production, etc. Our leading products are Tongyada brand semi-trailers, tipper, fuel tanker, liquid bitumen tanker, particle material tanker, bulk cement tanker, concrete mixer truck, wrecker trucks, timber trailers and other special vehicles etc.
Our company covers an area of 730,000 square meters, total assets 460million RMB. There are 128 persons with senior technical title. We have first class numerical control cutting machine, automatic welding machine, large-size Bending Machine and Board Press machine in china, tanker body automatic welding tipper, the greatest entire-car-passing type shot blasting machine in Shandong Province, 21m length super spray painting and baking varnish room, Switzerland four-wheel ATD-GPS and 400 sets TEST EQUIPMENT which are advanced technology and Hi-Tech equipments . One hundred kinds of truck semi trailers and tanker trailers have passed our National Technical Appraisal and up to top class level in China, We have passed many certificates, such as ISO9001:2000,CCC etc.

specification of extended semi trailer

Tare Weight	About 8.5-13T
Dimension	13000mm3000mm-3500mm1650mm
Loading Capacity (T)	40T-100T
Axle	13 T/16T, FUWA /BPW /Huajing Brand
Rim	6.5-20/7.5-20/8.00-20/8.5-20
Tire	8.25R20/10.00R20/11.00R20/12.00R20
Suspension	Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand )
Spring leaf	90(W)mm13(Thickness)mm10 Layer or 100mm12mm12
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Support leg	JOST brand D200T or China brand 28Tons (Double speed)
Main beam	Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm ; Material is Q345B Steel .
Side beam	16mm -25mm channel steel (Material is Q235steel ).
Ladder	Manual or Hydraulic type
Gooseneck	For choose
Brake chamber	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier, RORO or 40HQ container.

We believe that the world will know more of China because of our Tongyada semi trailers!
We have 12years exporting experience, main exporting area are Africa, Middle East, South Asia, South America.

Welcome you and your friends come to visit our factory at any time!

Website: www.chinatongya.com

Tel/Fax: 0086-5377766111

Mobile: +86-15105473619
