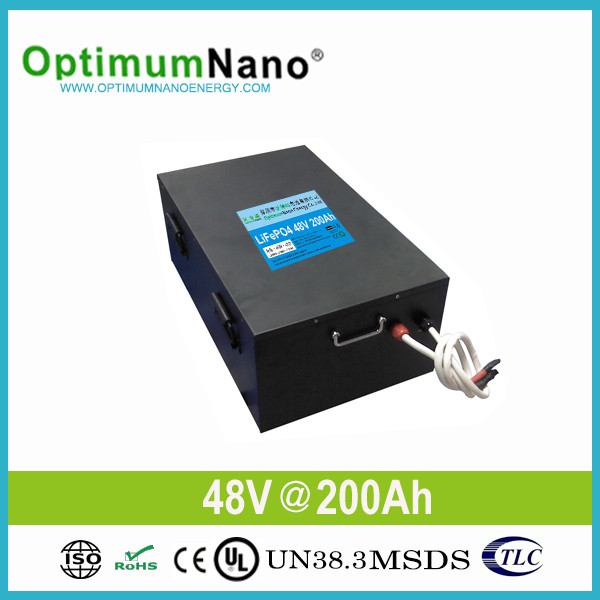

Deep Cycle Lithium 48V 200ah Solar Battery for 10kwh off Grid and Grid Solar Storage System

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Deep Cycle Lithium 48V 200ah Solar Battery for 10kwh off Grid and Grid Solar Storage System

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 1.0-10000.0/ Piece

Price:$1.0 - $10000.0 / Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Jul 23, 2015 To Dec 01, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-48200

Type:Lithium-Ion Batteries

Usage:Car, UPS, Electric Power, Lighting, Electric Bicycle, Solar System

Nominal Voltage:48V

Discharge Rate:Low Discharge Rate

Shape:Cylindrical Battery

Electrolyte:Lithium

Rechargeable:Chargeable

Model:Lithium 48V 200ah Solar Battery

Size:580*440*450±2(Mm)

Weight:1/3weight of SLA

Wide Range Temperature Adaptability:-20~65

Cycle Life:Over 2000 Cycles

Low Self-Discharging Rate:?3% Per Month

Application:Solar System/ UPS/ Back up Power

Export Market:America, Europe, Aisa, etc

Certificate:CE, UL, RoHS

Warranty:2 Years

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:Customized Package

Standard:CE, UL, ROHS, C-tick, IEC, UN38.3

Origin:China

HS Code:8507600090

Production Capacity:1000pks/Day

Product Description

Deep Cycle Lithium 48V 200Ah Solar Battery for 10kwh Off Grid and Grid Solar Storage System

Main Data about Lithium 48V 200Ah Solar Battery:

No	Item	Data
1	Battery Model	10240Wh, 48V 200Ah LiFePO4 Solar Battery
2	Cells and connection	32650, 3.2V 5Ah, 16S 40P
3	Battery Voltage	51.2V (Standard Working Voltage)
4	Standard Charge Voltage	About 58.4V
5	Discharge Cut-off Voltage	40V
6	Battery Capacity	200Ah
7	BMS Model	PCM(PCB style BMS) or Smart BMS
8	Charge Current	50A(it need 4 hours for charge,can design)
9	Max Continuous Discharge Current	100A (can design)
10	Peak Discharge Current	200A (can design)
11	Whole Battery Size	580440450±2mm Steel Case Packing (can design)
12	Net Weight	About 130kg

This form can't include all we are producing.

Optimum LiFePO4 Battery/Lithium Solar Battery Pack (48V 10Ah---500Ah)
10/15/20/25/30/40/50/100/200/Ah
Item No.	OPT48010	OPT48015	OPT48015	OPT48020	OPT148025	OPT48030
Standard Capacity	10Ah	15Ah	15Ah	20Ah	25Ah	30Ah
Rated Voltage	51.2V
Discharge Cut-off Voltage	40V
Cell Model	IFR32650/32750
Casing Material	Steel Case for Single Cells
Self Discharge Rate	?3% after one month
Life Cycles	>2000 times (with 1C constant charge and discharge cycle)
Max Continuous Discharge Current	2C
Max Charger Voltage	DC29.2V
Standard Charge Current	0.2C
Protection Function	Short-circuit &Over-current &Overcharge &Over-discharge &Undervoltage
Product Size(mm) (changeable)	365.1138.190	280185190	30020288	30030088	323171215	400165150
Approx N.W	6Kg	9Kg	8.8Kg	10Kg	15Kg	16.5Kg
Item No.	OPT48040	OPT48050	OPT48100	OPT48100	OPT48200
Standard Capacity	40Ah	50Ah	100Ah	100Ah	200Ah
Product Size(mm)	530165150	360220262	430320262	560360200	580440450
Approx N.W	22Kg	35Kg	62Kg	68Kg	125Kg
Corp:OptimumNano Energy Co., Ltd Http://optimum-china.en.alibaba.com/ www.optimumchina.com Add: Bld9, Zhukeng Industrial Park, Pingshan New Dist.,518118 Shenzhen,Guangdong,China

Characteristics:

Safe: Rigid aluminum alloy housing protection, BMS or PCB built inside to protect the battery over charge or discharge.
Environmental-friendly: Accredited with RoHS, without any hazardous and noxious substances.
Lighter and smaller: 1/3 weight of lead acid battery, 70% size/weight of Ni-MH/Ni-Cd battery.
Powerful: Able to discharge at 20Cat 65°C max.
Long cycle life: Over 2000 cycles with capacity staying at minium 80%. Lead battery and other Li-ion batteries only have 300-500 cylces, such as Ni-Cd battery, Ni-MH battery.
Wide temperature range: Available for use when the temperature ranges from -20°C to 70°C.
Quality assurance: BV and SGS approved supplier, with TS16949 and ISO9001 quality management certificates and UL, CE,IEC62133, RoHS certificates.

Our advantages:

Specialized in production of lithium iron phosphate batteries for over 4 years.
Providing tailor-made high-standard energy solutions in accordance to client's demands.
With technical of over 2 years in on-site installation and debugging for more than 1000 HEV and EV.
Having made and implemented energy solutions for over 100 styles of EV.
With rich experience in drawing up and executing new energy solutions such as special energy-storage systems like wind-solar hybrid power generation and UPS for military and hospital.
Whole-journey nanny service after sale.

We could design all of the battery packs according to your requirements and provide OEM service. We sincerely welcome you to visit and cooperate with us for a prosperous business future.
