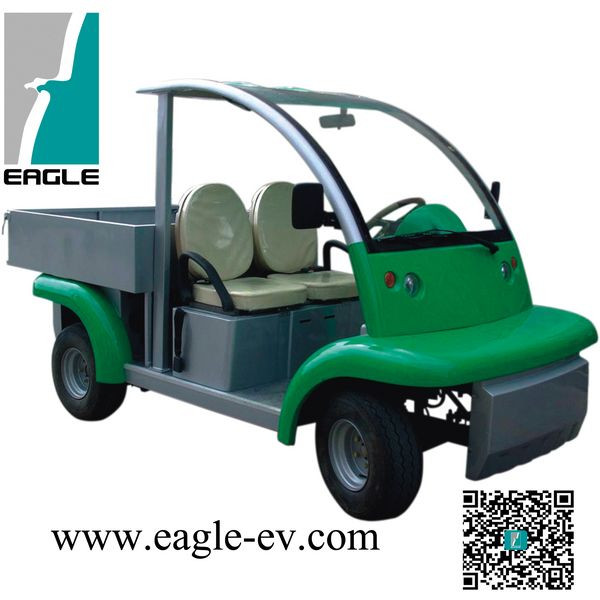

| Model | EG6043KDX | EG6043KDX01 |
| System | 48V/4KW Series | 48V/4KW Sepex |
| Key Components |
|
|
| Battery | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) |
| Motor | 3.8KW Chinese motor | 3.8KW Chinese motor |
| Controller | Curtis 1204 (275A@2minutes) | Curtis 1268 (400A@2minutes) |
| Performance |
|
|
| Passenger capacity | 2 | 2 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >70 | >70 |
| Max. speed @12.76:1 gear ratio | 32 | 32 |
| Max. speed @10.26:1 gear ratio | / | 40 |
| Minimum turning radius (m) | 4 | 4 |
| Max. climbing ability (loaded) @ 12.76:1 gear ratio | 20% | 20% |
| Max. climbing ability (loaded) @ 10.26:1 gear ratio | 15% | 15% |
| Max. movement after brake at speed of 20km/h | ?4m | ?4m |
| Max. loading weight | 480kgs | 480kgs |
| Net weight | N/A | N/A |
| Dimensions |
|
|
| Overall dimensions (mm) | 3050x1400x1800 |
| Rear cargo bed dimension(mm) | 1200x1100x250 |
| Min. ground clearance (mm) | 140 |
| Wheelbase (mm) | 2040 |
| Front wheel tread (mm) | 1143 |
| Rear wheel tread (mm) | 1143 |
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) |
| Body and Frame |
|
|
| Frame | Welded steel framework with sand blasting+paint treatment |
| Body | Fibreglass + Plastic |
| Roof | Plastic |
| Windshield | Laminated glass |
| 2 point seat belt | 2pcs |
| Large Seats: |
|
| 1) backrest and cushion | Sponge + artificial leather |
| 2) armrest | Soft expanded plastic |
| Floor | Bamboo + artificial leather |
| Inner rear view mirror | One piece per cart in the middle of the windshield |
| Side rear view mirror | Two pieces per cart |
| Battery watering system,48V system | without water supply tool |
| Manual Pump | water supply tool (other water supply tools are available) |
| Overshadowing curtain |
|
|
| Rain cover | PVC |
|
| Electric system |
|
|
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn. |
| Dashboard | forward/reverse switch, headlight indicator, turn signal indicator, ignition key, voltameter, ammeter, emergency switch; turn signal switch, headlight switch, windscreen wiper switch, horn button; Storage for miscellaneous items |
| Audio System | Radio and MP3 receiver |
| CD player to replace MP3 receiver |
| Microphone | Wired |
|
| Speaker | 2pcs |
|
| Reversing alarm | \ |
| Switch assembly | Lights switch, horn switch, wiper switch |
| Wiper | 12V |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A |
| Steering and Suspension |
|
|
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | Four wheel hydraulic drum brake+foot parking brake |
| Accelerator | Stepless speed change |
| Front suspension | Independent suspension, helix spring + shock absorber |
| Rear suspension | rear plate spring + shock absorber |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated, Gear ratio 12.76:1 |
| Integrated, Gear ratio 10.26:1 |
| Wheel & Tyre | 12X7 Aluminum Wheel,225/55B12 6PR tyre |
