Electric Utility Car, High Quality, 48V Battery Voltage CE Certificate, with Cargo Box, Eg2028h

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Electric Utility Car, High Quality, 48V Battery Voltage CE Certificate, with Cargo Box, Eg2028h

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF

Payment Terms:L/C, T/T

Trademark:Eagle

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:EG2028H

Type:Buggy/Golf Carts

Power:3.8kw

Power Fuel:Electric

Maximum Speed:21-40km/H

Gradeability:<20%

Suitable for:Golf Course

Certification:CE

Voltage of Battery:48V

Color:Customized

Description:Electric Utility Car

Motor Power:3, 3.8kw DC / AC

Passenger Capacity:2

Rear Box Dimensions (Mm):770X1100X250

Overall Dimensions (Mm):2670X1180X1890

Charger:Input 110V-240V~50Hz-60Hz

Brake System:Mechanical Brake

Wheel & Tyre:10X6 Alumimum Wheel & 205/50-10 4pr

DC/DC Converter:48V/12V

Horn:Electric Horn, 12V

Export Markets:Global

Additional Info.

Trademark:Eagle

Packing:Cargo Box

Standard:CE

Origin:China

Production Capacity:1000 Per Month

Product Description

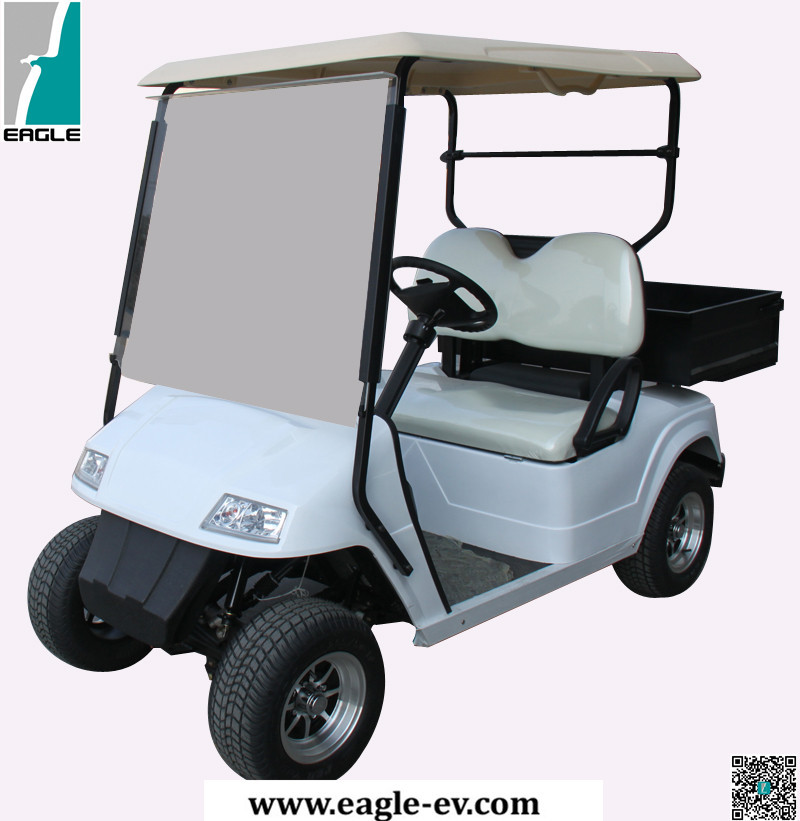

EG2028H is a electric utility vehicle with cargo box. It's modified based 2 seater standard golf cart model EG2028K by replacing the rear golf bag kits to cargo box kits. The rear cargo box is made by steel fender and aluminum bottom which ensure the cost will be not too high, in the same time, there will be less rust problem because of the aluminum bottom. This kind of utility vehicle can be used in various closed area, like golf course, resort, factory, airport, station, school, park, garden, small town, etc...For maintenance or carrying cargos or luggage, etc.
Below is the general specification: Electric Utility Car, High Quality, 48V Battery Voltage CE Certificate, with Cargo Box, Eg2028h

Battery	Deep cycle, lead acid battery, Trojan brand, imported
Motor Power	3, 3.8KW DC / AC
Controller	Curtis brand, Separately excited, imported
Passenger capacity	2
Range (loaded) based on flat road at a speed of 20km/h (km)	>60--100 depends on battery setup
Max. speed	21-40 depends on motor and rear axle setup
Minimum turning radius (m)	3.5
Max. climbing ability	20%
Max. loading weight	300kgs
Rear box dimensions (mm)	770x1100x250
Overall dimensions (mm)	2670X1180X1890
Body and Frame
Frame	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front body + PP plastic rear body
Roof	injected plastic
Windshield	one-piece Organic glass
Large Seats:	Rebond seat + artificial leather, formed armrest, plastic seat bottom
Floor	rubber
Dashboard in black plastic	forward/reverse switch, battery capacity indicator, ignition key
Beverage holders	4 cups drink holders
Electric system
Lighting system and horn	2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. Reversing alarm
Charger	input 110V-240V~50Hz-60Hz, output 36V/48V, 20A/25A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	Mechanical brake
Accelerator	Stepless speed change
Suspension system	Front and rear plate spring + cylinder hydraulic shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated
Wheel & Tyre	10x6 Alumimum wheel & 205/50-10 4PR
Color
Body Color	6 standard color: Pure white/Pure Black/Champagne/Coca Cola Red/Navy Blue/Metallic Green
Seat Color	2 standard color: white and tan
Others
Provides various options like: hinged windshield, wood finish dashboard/backrest cover/steering wheel, onboard charger, STS roof supports, 4-wheel hydraulic brake, enclosure, solar panel, cooler, complete aluminum box, etc..
